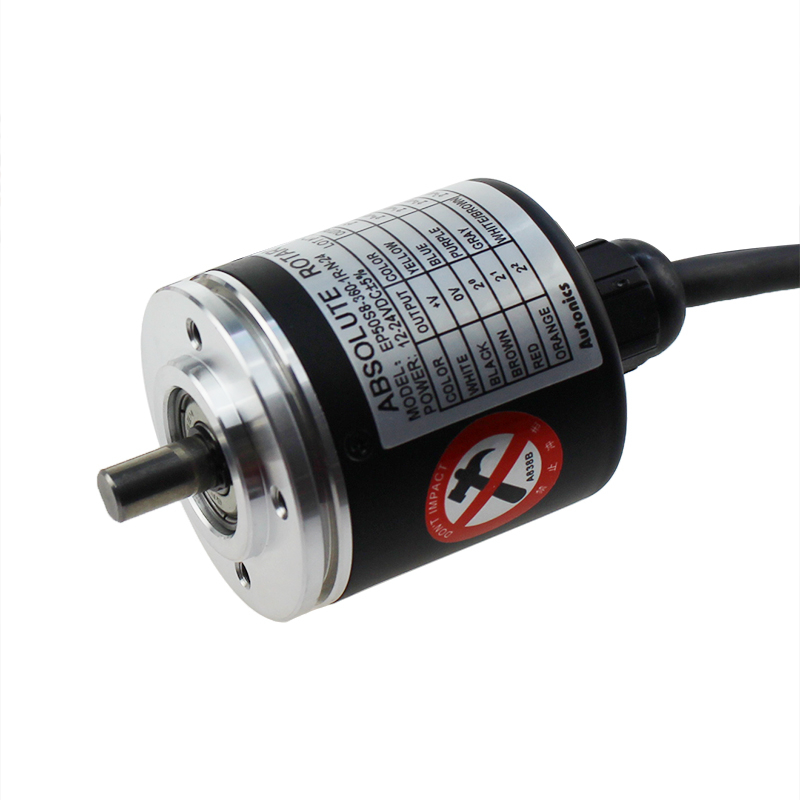

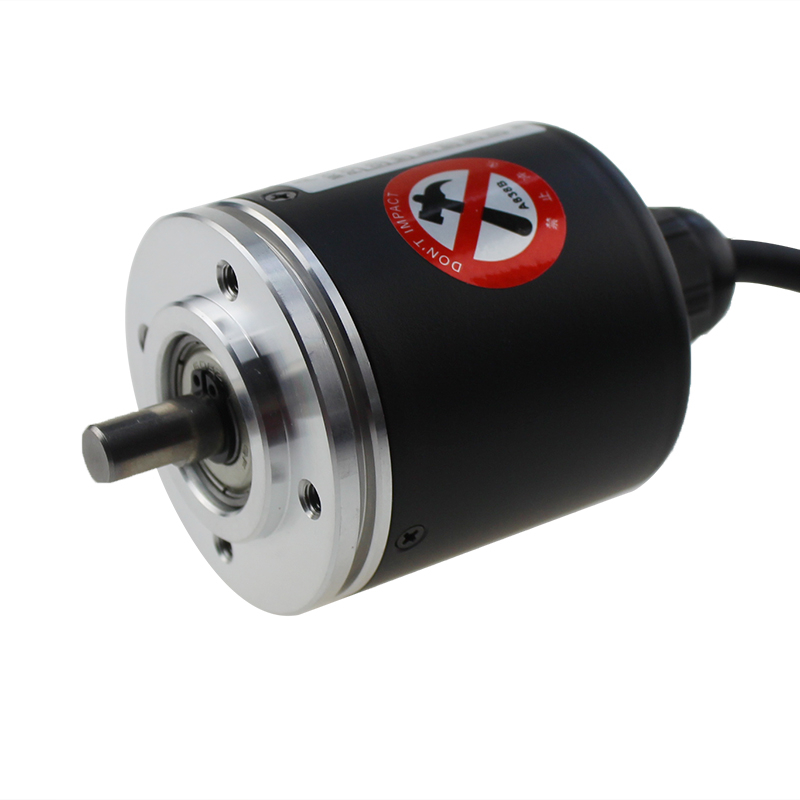

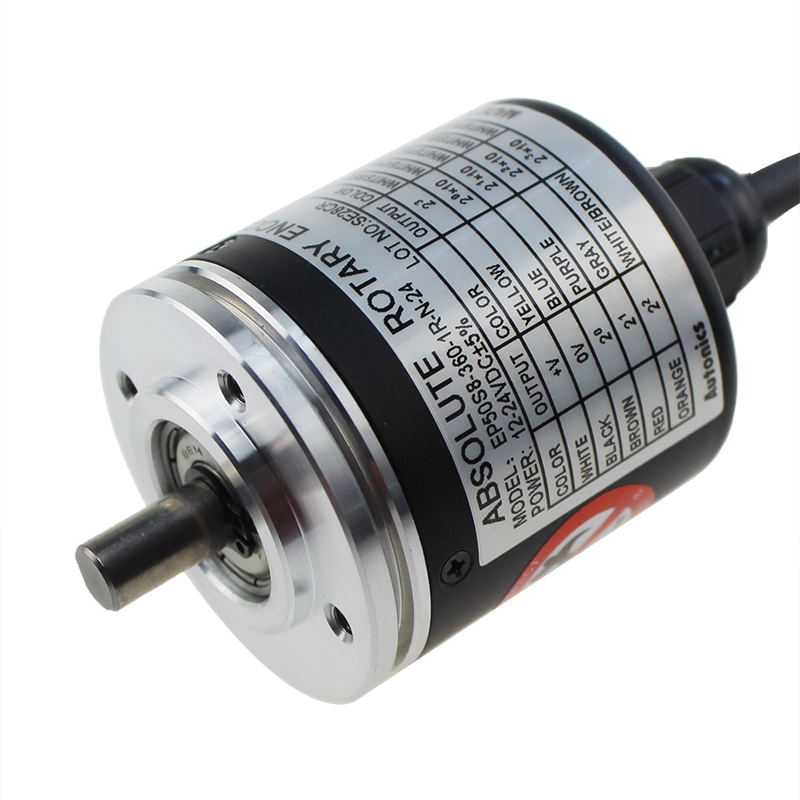

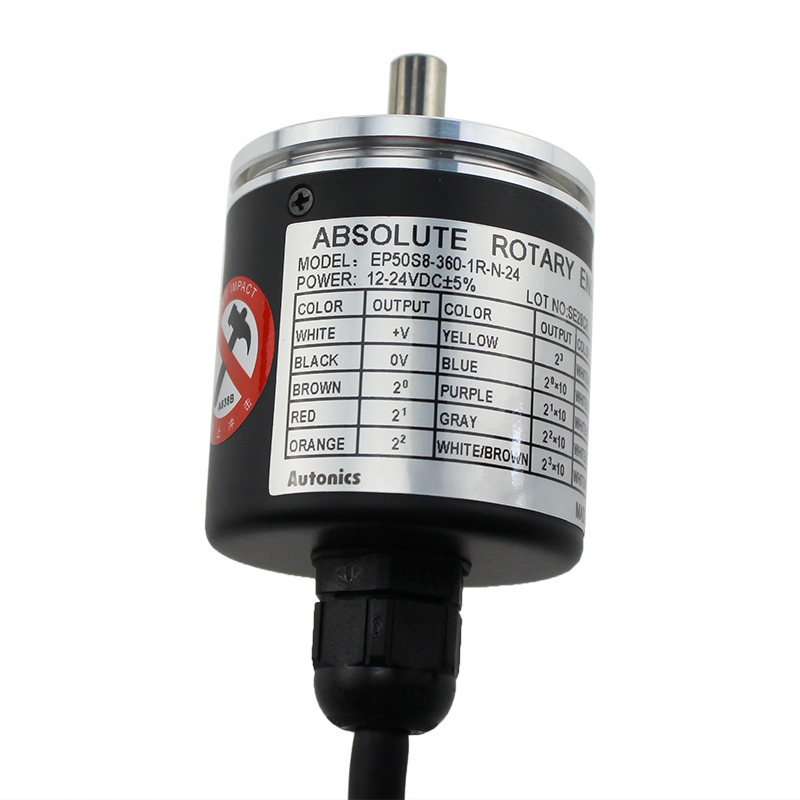

EP50S8 Diameter 50mm 360ppr IP64 Shaft Type Absolute Rotary Encoder

Compact size of external diameter ø50mm Various output code: BCD, Binary, Gray code Various and high resolution(720, 1024 divisions) Protection structure IP64(Dust-proof, Oil-proof)
Availability:
Inquire Add to Basket

  • EP50S8-360-1R-N-24

  • Autonics

Specifi cations
Series Diameter ø50mm, shaft type
Shaft diameter ø8mm
Pulse/ 1Revolution 360ppr
Output code BCD Code
Revolution direction  Output value increase at CCW direction
Output  NPN open collector output
Power supply 12-24VDC±5%
Ambient temperature  -10~70℃, Storage: -25~85℃
Protectio IP64

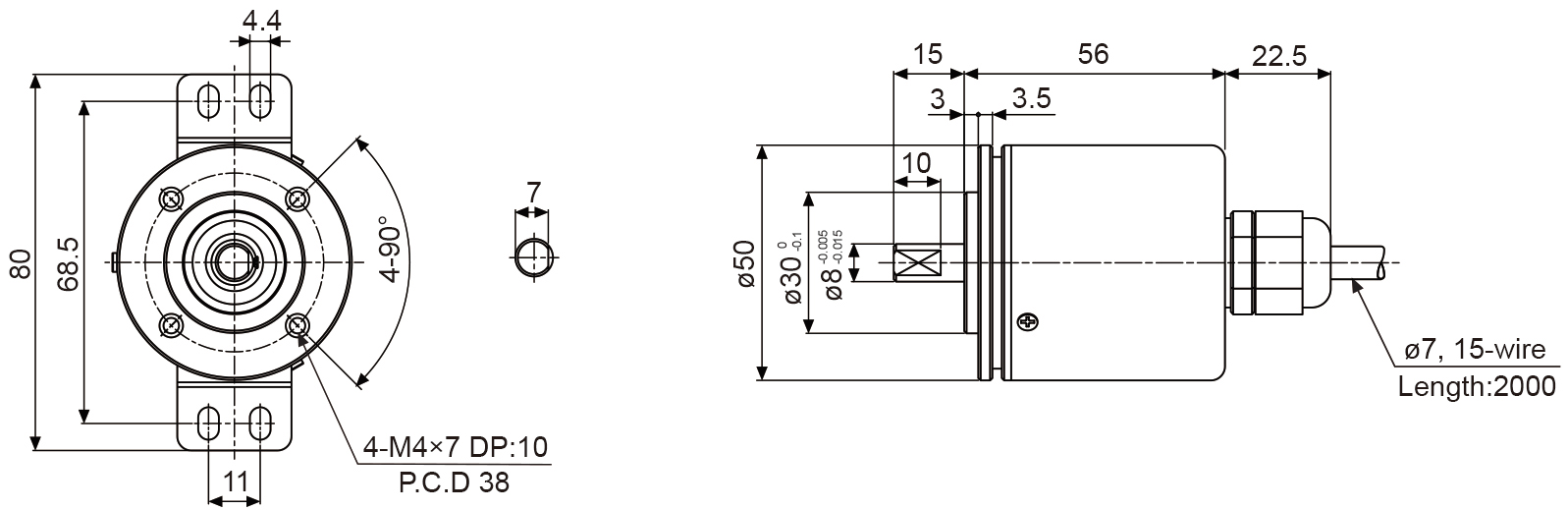

Dimensions (mm)
EP50S
