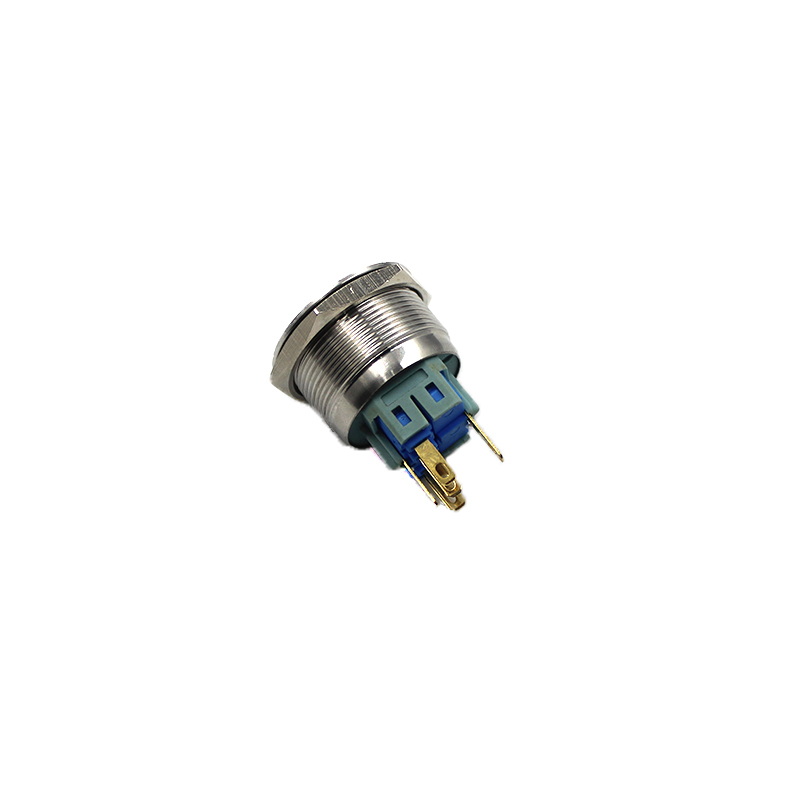

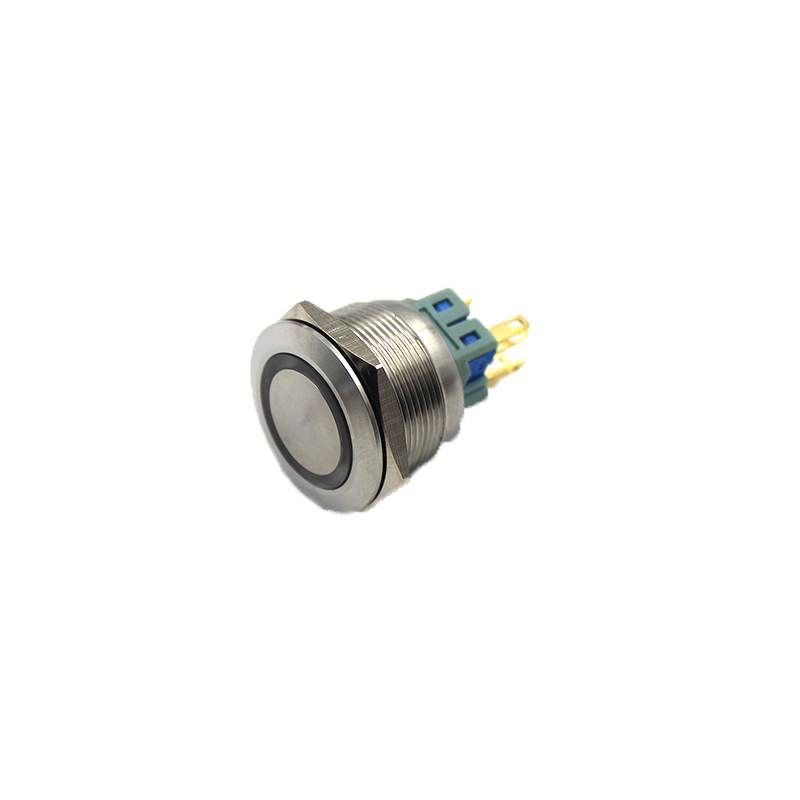

ABS25S
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance ,graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on .
Metal Switch Features:
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
Model Description:
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||

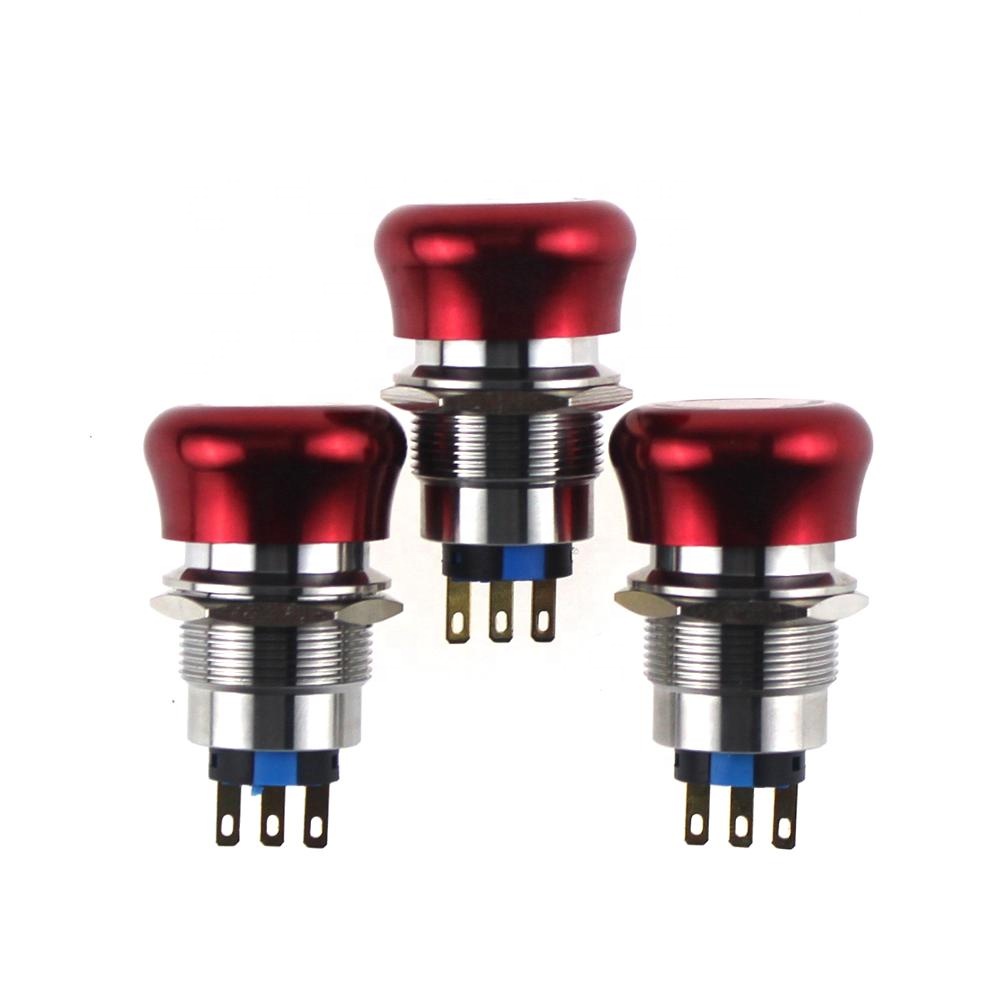

16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
