G12-3A10PA
G12-3A10PA 10cm PNP NO M12 Metal Housing Photoelectric Sensor Photo Switch
| Diffuse type | Detection distance | 7cm | ||
| 10-30VDC | NPN | NO | G12-3A07NA | |
| NC | G12-3A07NB | |||
| NO+NC | G12-3A07NC | |||
| PNP | NO | G12-3A07PA | ||
| NC | G12-3A07PB | |||
| NO+NC | G12-3A07PC | |||
| Retroreflective type | Detection distance | 1m | ||
| 10-30VDC | NPN | NO | G12-3B1NA | |
| NC | G12-3B1NB | |||
| NO+NC | G12-3B1NC | |||
| PNP | NO | G12-3B1PA | ||
| NC | G12-3B1PB | |||
| NO+NC | G12-3B1PC | |||
| Through beam | Detection distance | 3m | ||
| 10-30VDC | NPN | NO | G12-3C3NA | |
| NC | G12-3C3NB | |||
| NO+NC | G12-3C3NC | |||
| PNP | NO | G12-3C3PA | ||
| NC | G12-3C3PB | |||
| NO+NC | G12-3C3PC | |||
| DC/SCR Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA | |||
| DC/AC Response time | Dc<2ms | |||
| Directional angle | 3 ° -10° | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | 25ºC~+55ºC | |||
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54~IP67 | |||

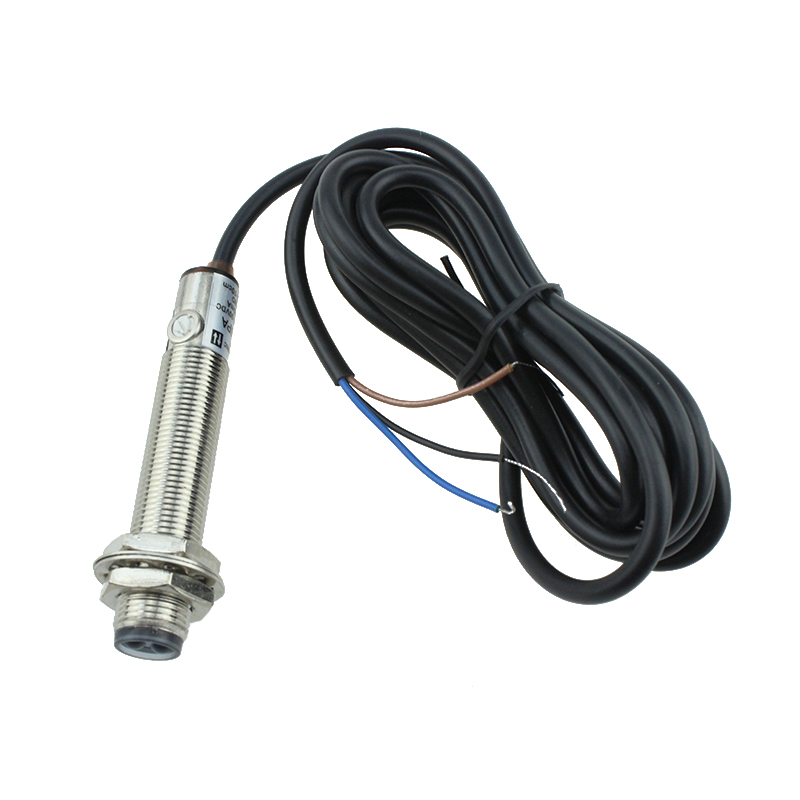

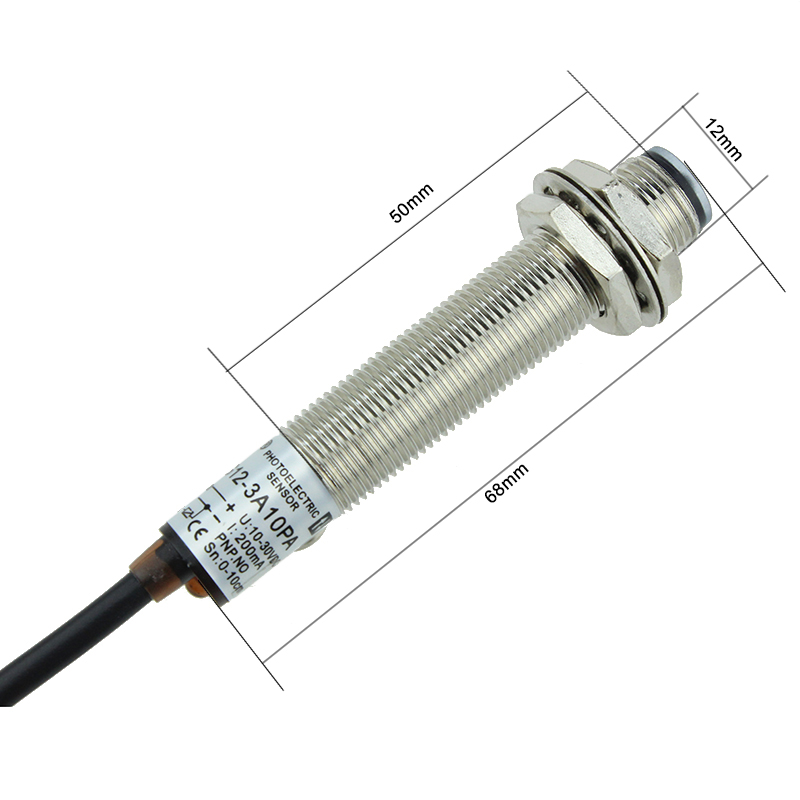

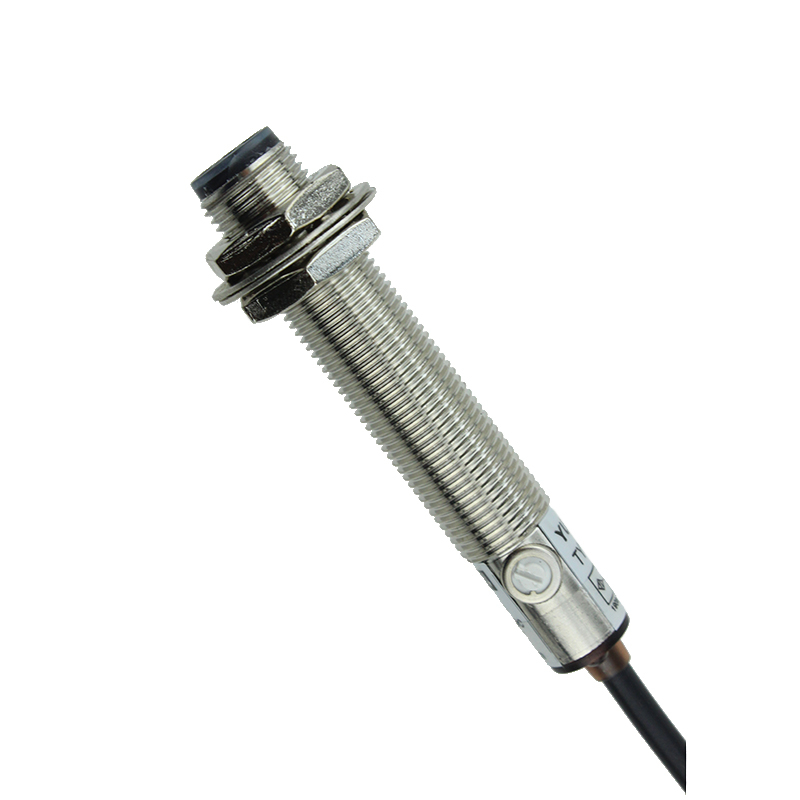

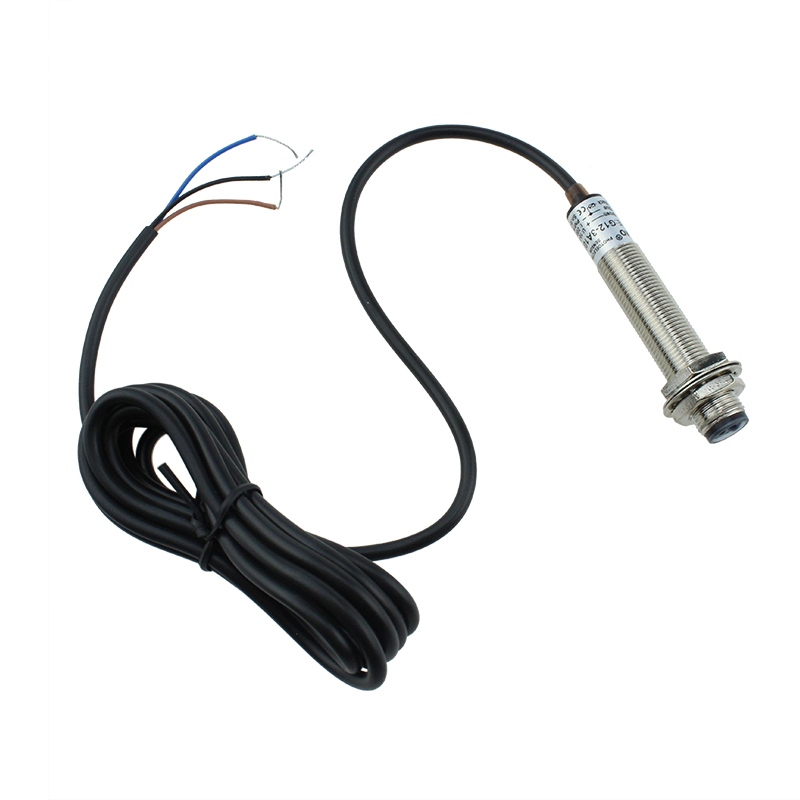

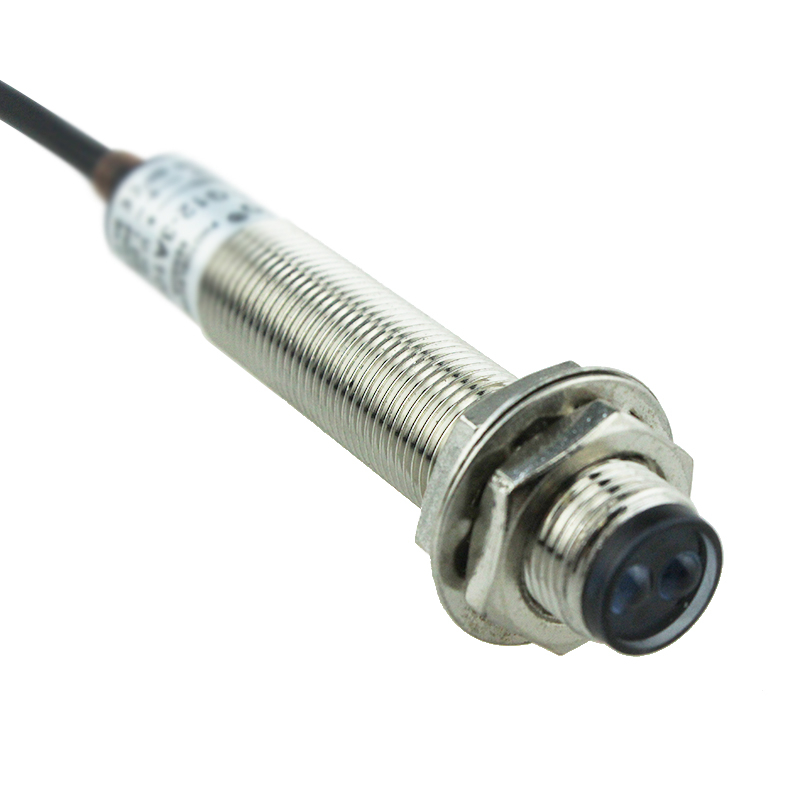

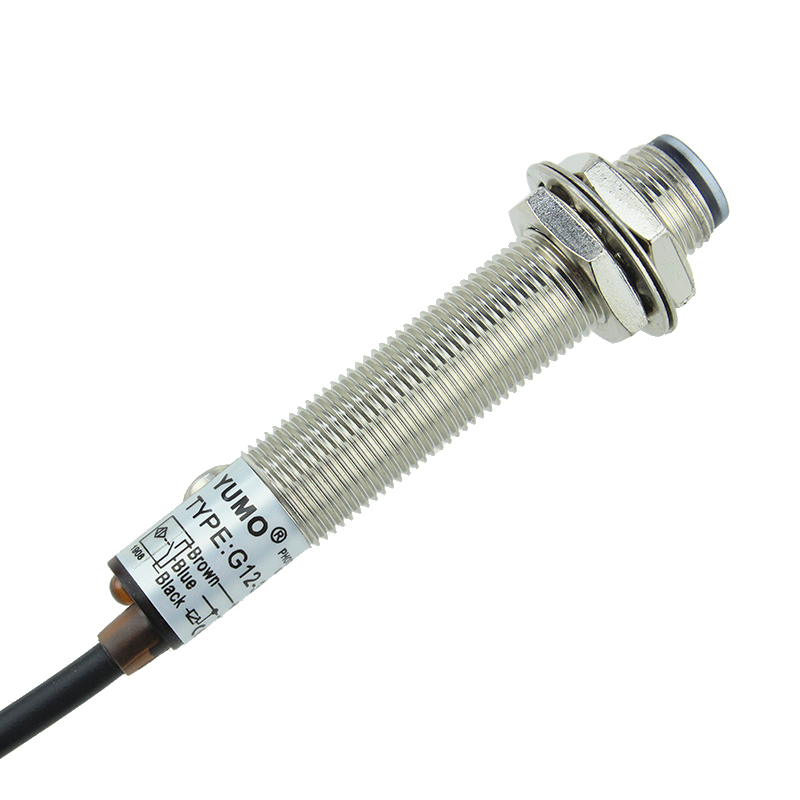

Product picture：
FAQ:
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
