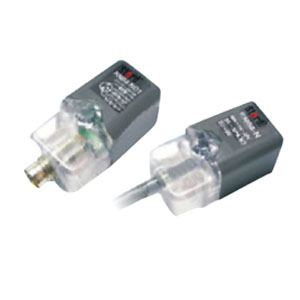

RN04
Characteristic
The IP67 rating is designed to the effective waterproof
Build-in twin LED, convenient for checking the operation
Plug-in connector type is available, easy to connect, anyone can
replace the new sensor in a minute.
Oval hole for easy installation and adjustment

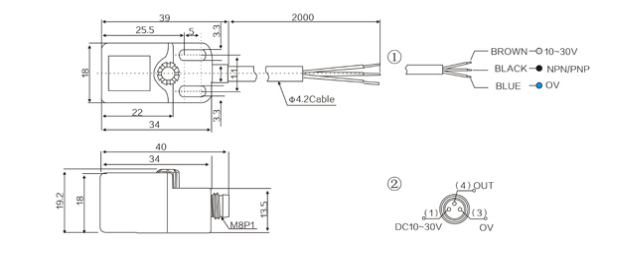

OVERALL DIMENSIONS |
| ||||
Output Method | NPNN.O | RN04-N | RN04-ND1 | ||
NPNN.C | RN04-N12 | —— | |||
NPNN.O | RN04-P | RN04-PD1 | |||
NPNN.C | RN04-P2 | —— | |||
Sensing Surface | Top surface | ||||
Standard sensing object | Iron 18*18*1mm | ||||
Sensing distance | 5mm | ||||
Secure sensing distance | 0~4mm (0 to 4mm） | ||||
Hysteresis | ≤10%of sensing distance | ||||
Response time | 2ms Max | ||||
Operating voltage | DC10～30V | ||||
Current Consumption | ≤8mA no-load | ||||
Load current | 100mA Max.at DC30V | ||||
Leakage current | ≤1.1mA no-load | ||||
Residual voltage | ≤DCl.5V | ||||
Insulation resistance | 20MΩmin.(DC500V) | ||||
Voltage withstandabiligy | AClOOOV 60Hz for 60 secretary | ||||
Operating temperature | -20℃～+60℃ | ||||
Protection degree | IP64/IP67(Option) | ||||
Wiring method | Φ4.2*2M/3wires | M8 connector/M8 | |||
Weight | Approx.60g | Approx.12g | |||
