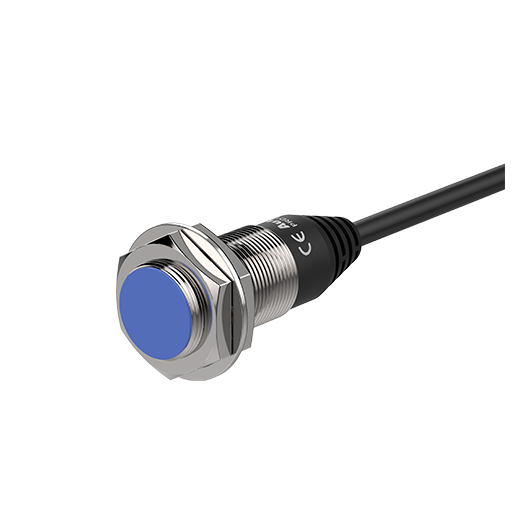

PRD18-7DP
AUTONICS
Description:
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Installation | Shield(flush) |
| Standard sensing target | 20×20×1mm(iron) |
| Response frequency | 300Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | ≈ 97g (≈ 115g) |
Description:
| Wire type and power | DC 3-wire type 12-24VDC |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Installation | Shield(flush) |
| Standard sensing target | 20×20×1mm(iron) |
| Response frequency | 300Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | ≈ 97g (≈ 115g) |
