YML-TM15T NPN NC plastic square shape photoelectric Through Beam Switch Sensor
Product description
Features:
1. Through beam reflection working principle;
2. Excellent anti-interference performance;
3. High detection accuracy.
| Part number | ||
| Emitter | Receiver | |
| NPN NC | YML-TM15T | YML-TM15TNC |
| NPN NO | YML-TM15T | YML-TM15TNO |
| PNP NC | YML-TM15T | YML-TM15TPC |
| PNP NO | YML-TM15T | YML-TM15TPO |
| Technical specifications | |
| Detection type | Through beam |
| Rated distance [Sn] | 1.5m(non-adjustable) |
| Consumption current | ≤20mA |
| Circuit protection | Reverse polarity |
| Standard target | > φ6mm opaque object |
| Response time | <1ms |
| Light source | Infrared LED (850nm) |
| Output indicator | Receiver: Red LED |
| Dimensions | 22 mm *11 mm*10mm |
| Ambient temperature | -20℃~+55℃ |
| Output | NO/NC (depends on part No.) |
| Ambient humidity | 35-85%RH (non-condensing) |
| Supply voltage | 12-24VDC |
| Voltage withstand | 1000V/AC 50/60Hz 60s |
| Insulation resistance | ≥50MΩ (500VDC) |
| Vibration resistance | 10-50Hz (0.5mm) |
| Degree of protection | IP40 |
| Load current | ≤100mA (receiver) |
| Housing material | PC/ABS |
| Residual voltage | ≤2.5V(receiver) |
| Connection type | 2m PVC cable |

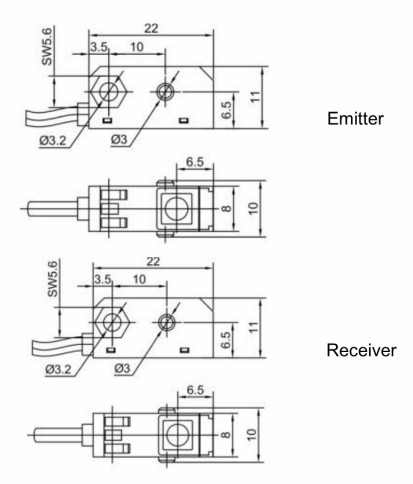

Dimensions:

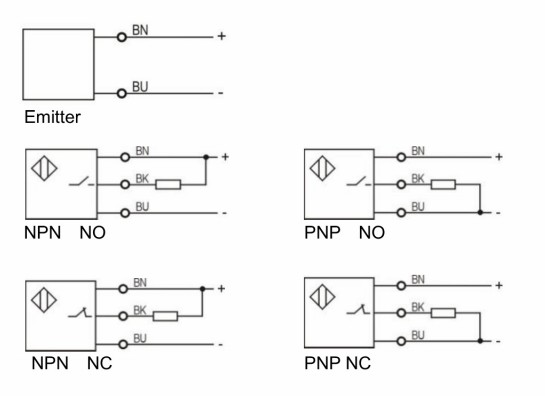

Wiring diagram:

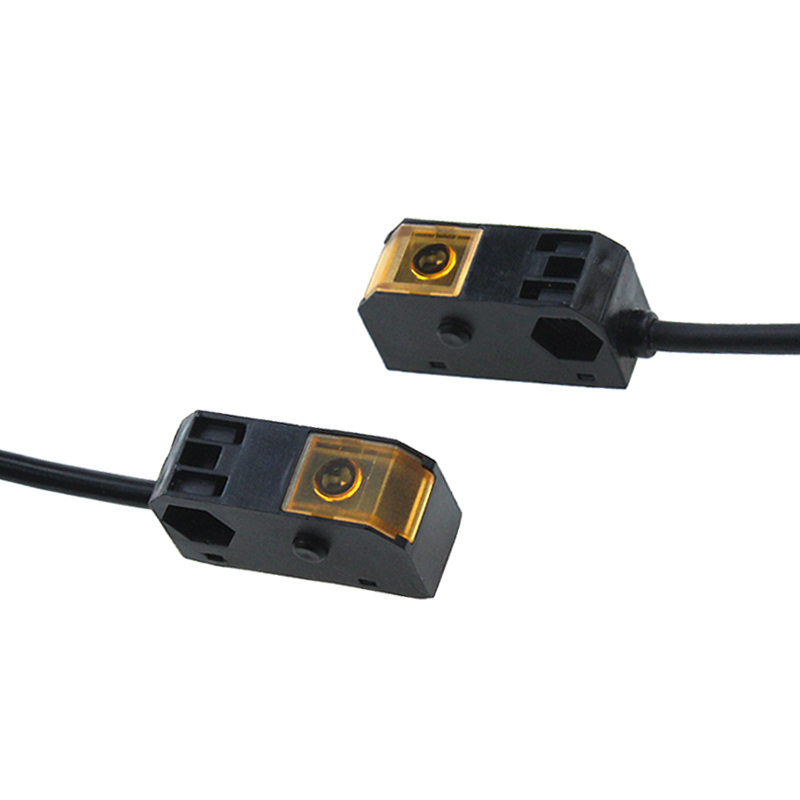

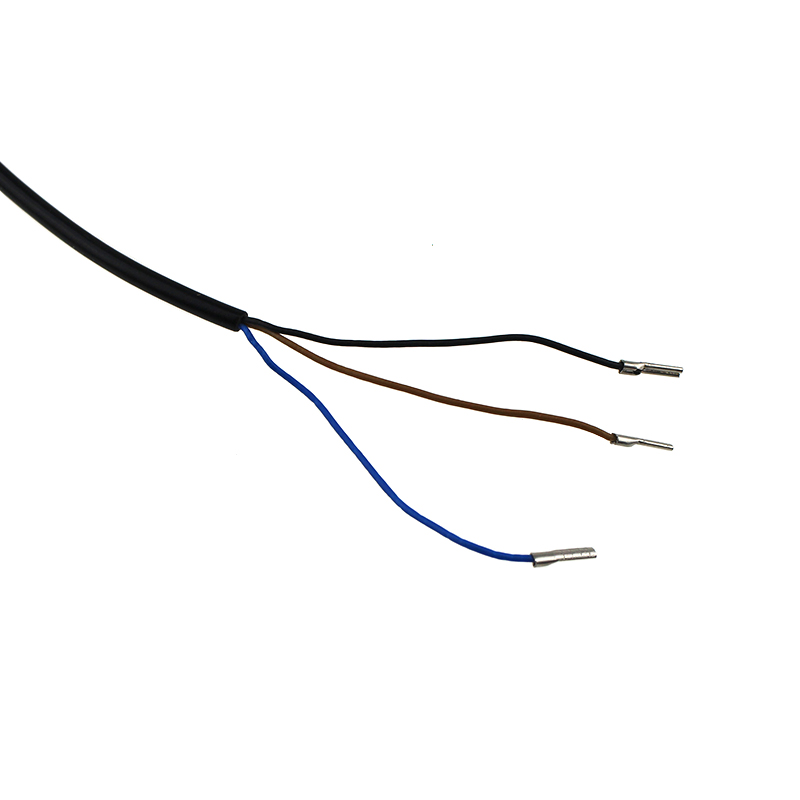

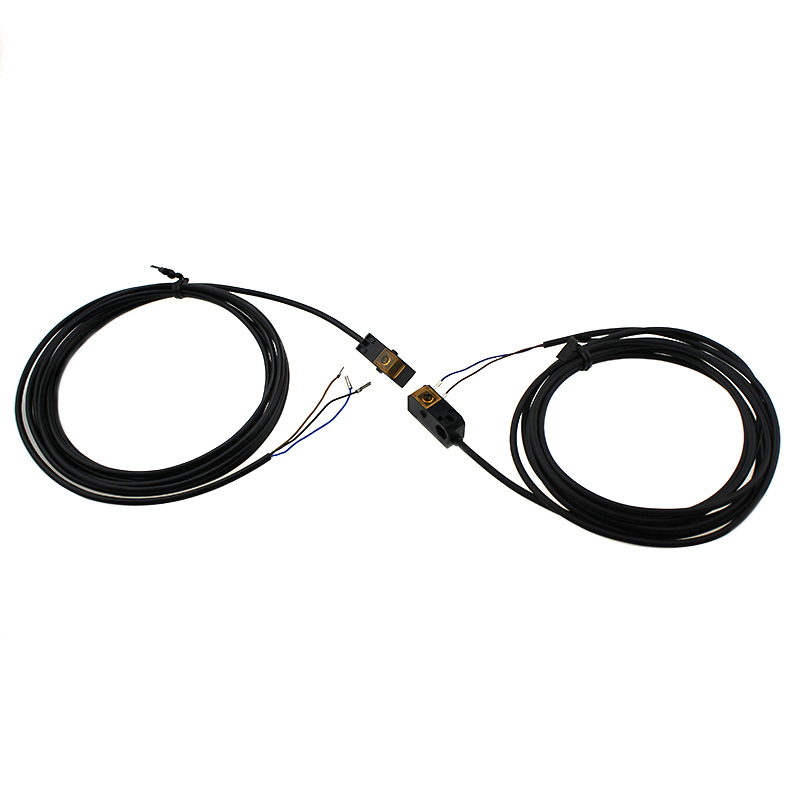

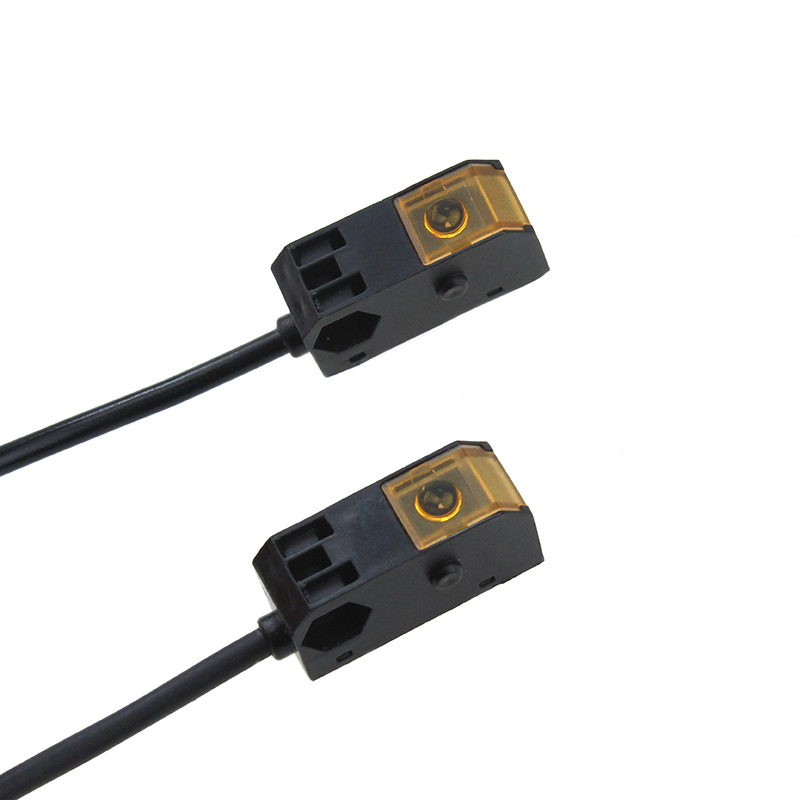

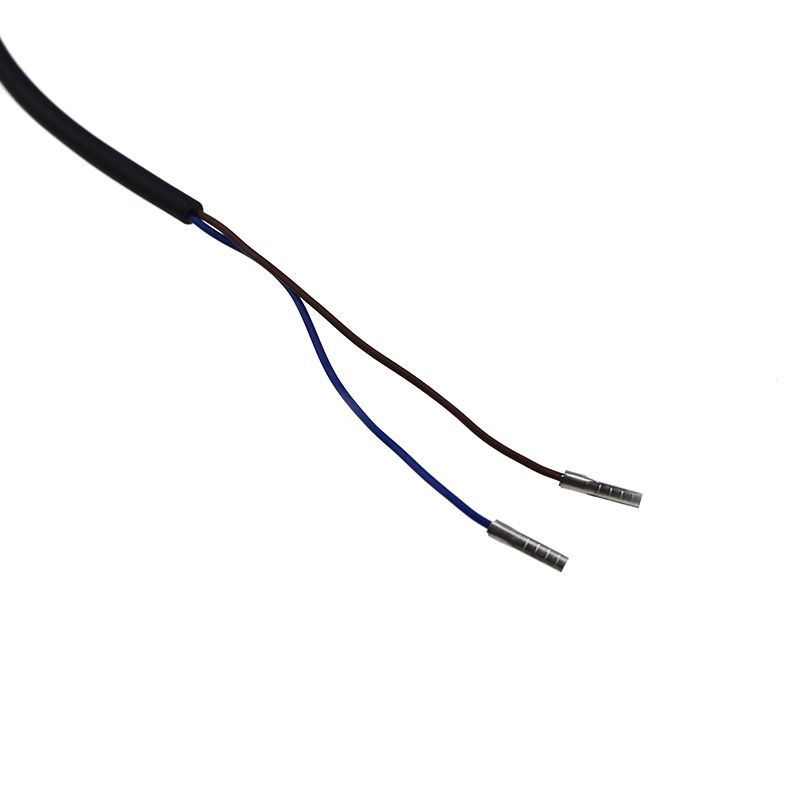

Product pictures
