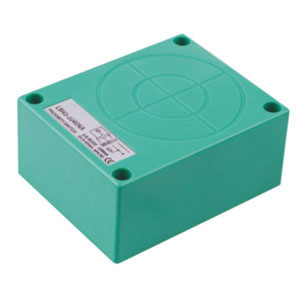

LMF45 angular column inductive proximity switch, detection 50mm

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
  • LMF45

LMF45 series Plane installation type inductive proximity switch

Sensing range 1-50mm , angular column inductive inductive proximity switch. China offer customized design!

LMF45 Inductive proximity switch
Detecting rang mm 0-50MMpart no.
Non-flush DC 6-36V NPN NO LMF45-3050NA
NC LMF45-3050NB
NO+NC LMF45-3050NC
PNP NO LMF45-3050PA
NC LMF45-3050PB
NO+NC LMF45-3050PC
2 Wires NO LMF45-3050LA
NC LMF45-3050LB
AC 90-250V SCR NO LMF45-2050A
NC LMF45-2050B

NO+NC LMF45-2050C
Relay output LMF45-2050JC
LMF45 Inductive proximity switch  Characteristics
Output current DC 200mA
SCR/relay 500mA
Output voltage drop DC<3V ,  DC(Two wire system)<3.9V ,  AC<10V
Consumption current DC<15mA  AC<10mA
Standard detected object 80&times;80&times;1(A3 Iron)
Repeated precision 0.05
Response Frequency 200Hz/5Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50M&Omega;
Shell material Plastic
Protection grade IEC Standard IP67
Alternative model

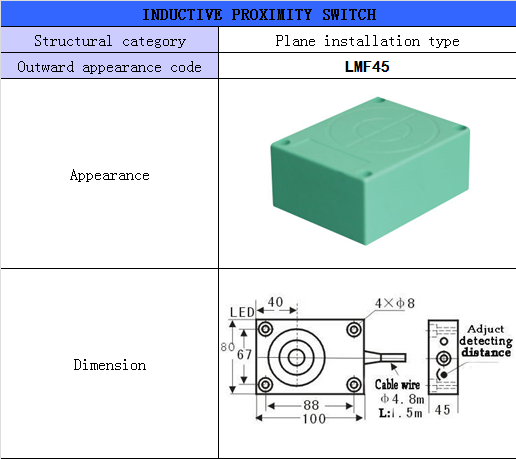

LMF45 proximity switch Dimension
