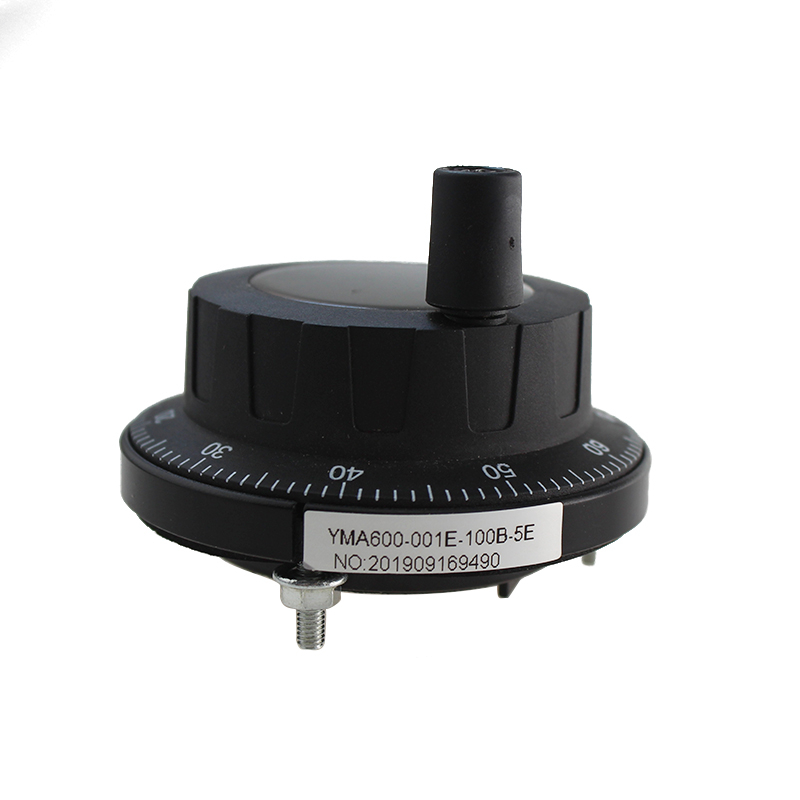

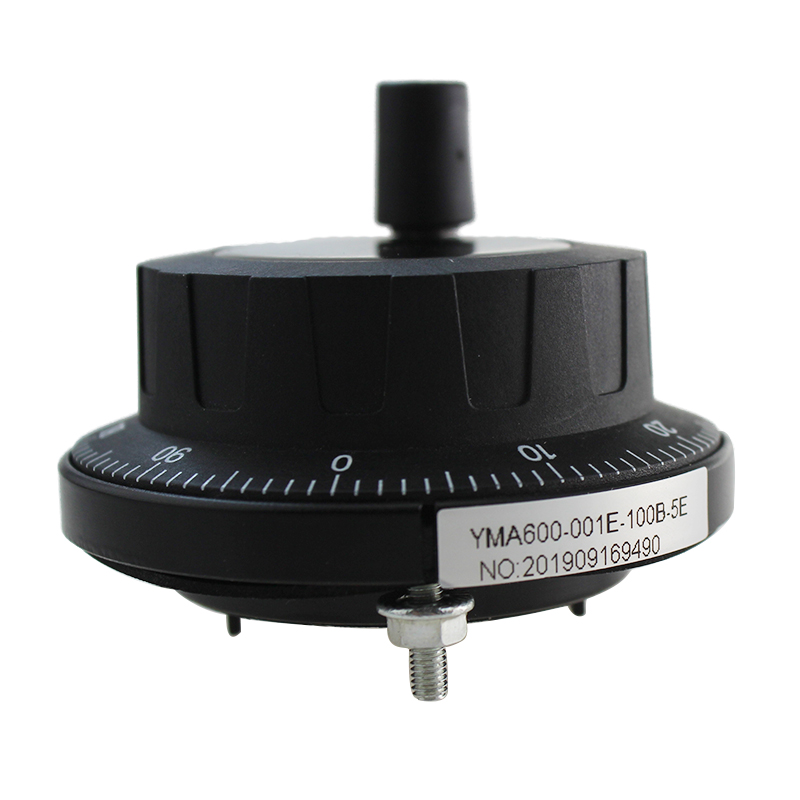

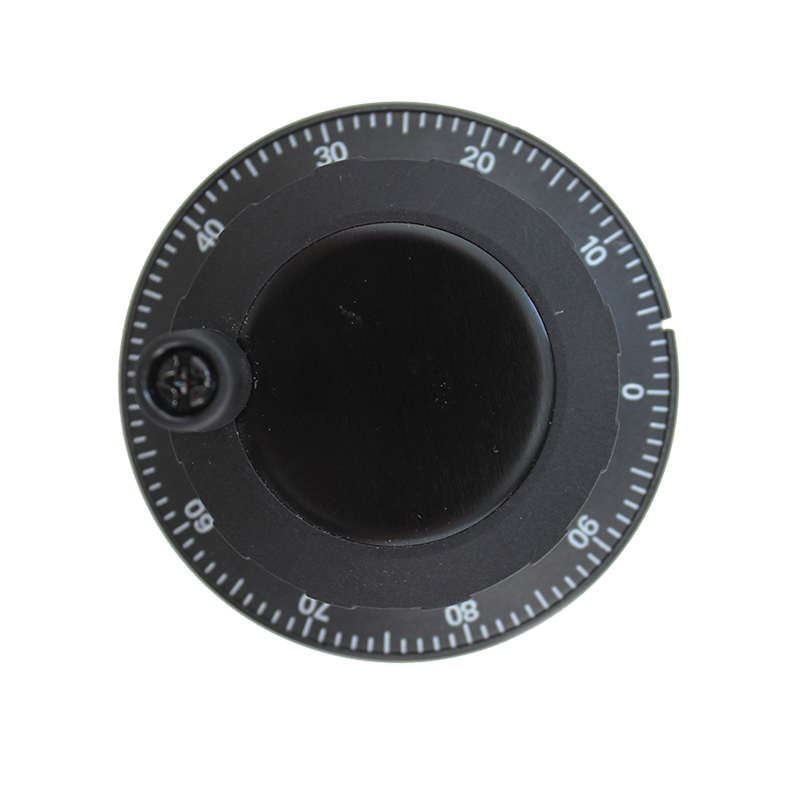

YMA600-001E-100B-5E
Application
Industrial tolling machinery , zero correction of printing machinery or signal cutting , numerical control machine and etc
Features
Suitable for manual pulses input type such as CNC or milling machine
High reliability , terminal connection type

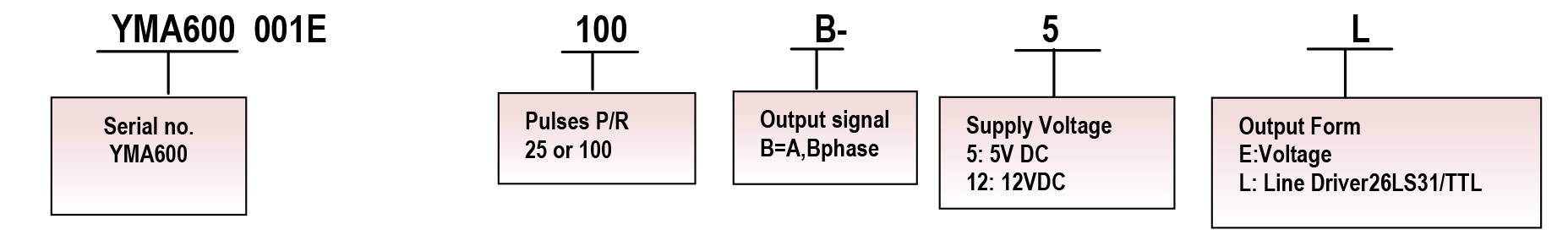

Ordering Information
Note:
Please contact sales representative to confirm the correctness and availability of the part number
Line Drive is only available with 5VDC,12VDC option
Technical Specifications:
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 12V |
Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Max Responding Frequency | 10kHz | 10kHz | 10kHz | 10kHz |
Mechanical Specification | ||||
Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
600 | -25~70℃ | -30~85℃ | IP50 | 250g |

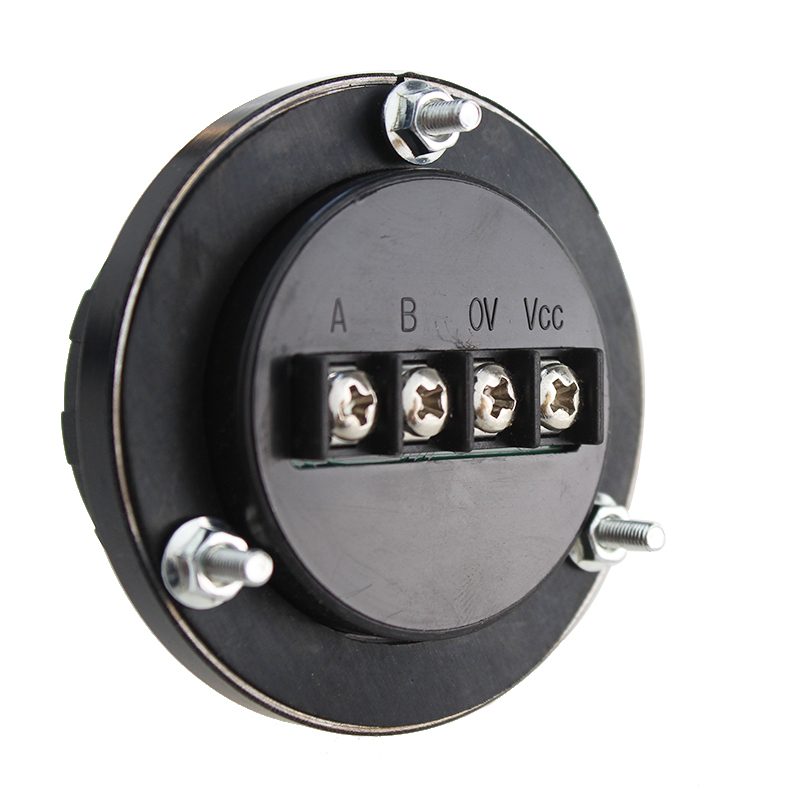

Connection Table:
Code | 1 | 2 | 3 | 4 | 5 | 6 |
Line drive output | +5V | 0V | Signal A | Signal A(-) | Signal B | Signal B(-) |
Other output | +5V | 0V | Signal A | Signal B | - | - |

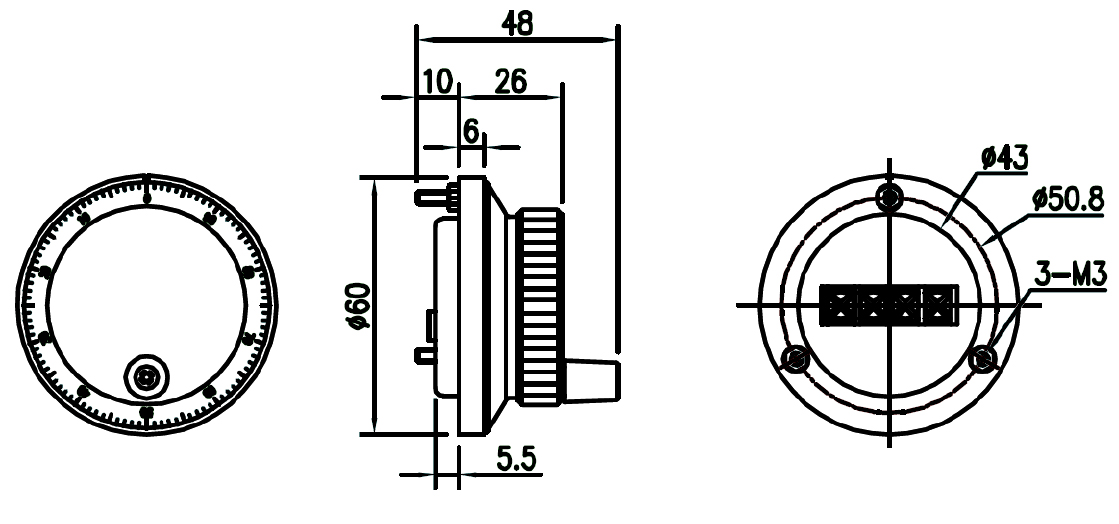

Dimensions(mm)
