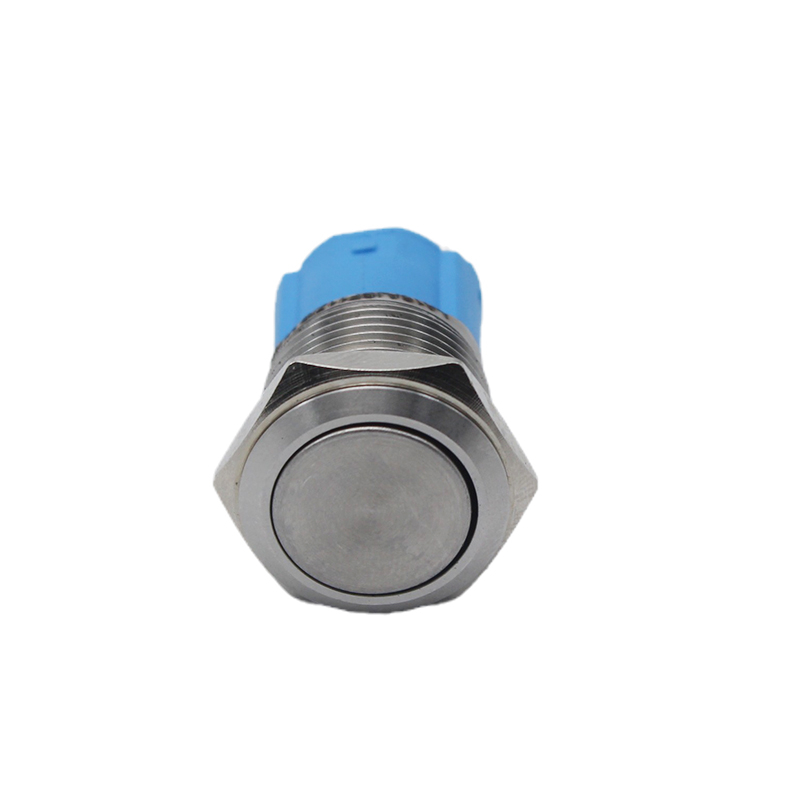

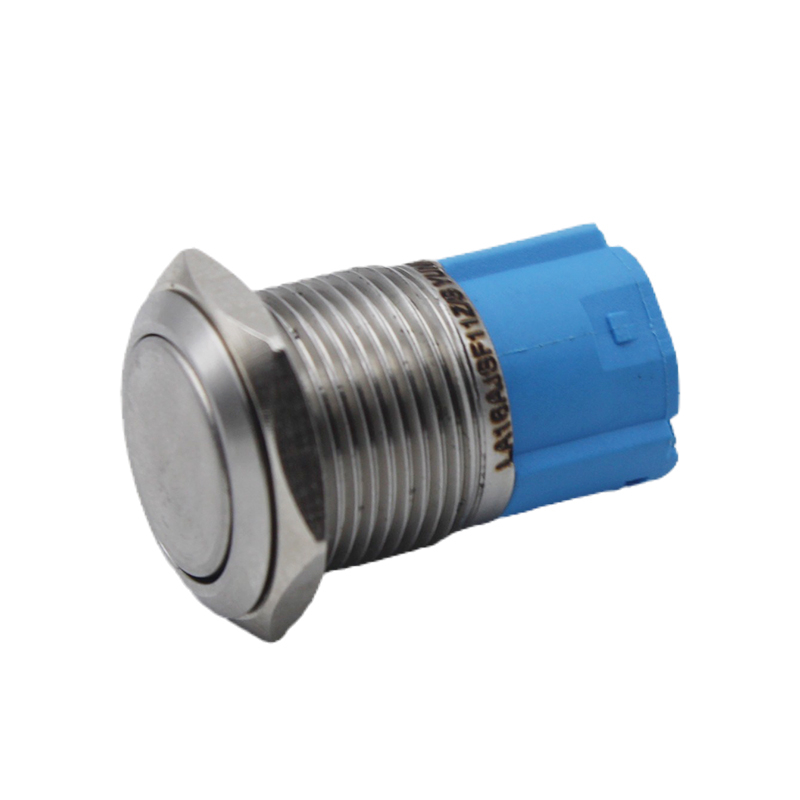

LA16AJSF11ZS
Features:
16mm diameter
Switch Rating:3A/250VDC
Contact Configuration:1NO 1NC/2NO 2NC
Operation Type:Momentary/Alternate
The Front Shape: Flat Round
The Crust Material:Stanless Steel/Brass(Nickel Plated )
Ring lluminated
IP Degree:IP40/67
Dimemsions:
Technical Specifications
| Specification | LA16AJSF11ZS | |
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(1.8x0.4mm) | |
| Switching | NO.4 | |
| Max.Switch Rating | lth:3A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃~+55℃ | |
| Mechanical life | 500,000cycles | |
| Electrical life | 50, 000cycles | |
| Panel Thickness | 1~10mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | 2.5~4N | |
| Operation Distance | About 2.8mm | |
| IP Degree | IP40/IP67 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Stee/Brass(Nickel Plated) | |
| Base | PBT | |
| LED Specl | Type | Dot lluminated(LED) |
| Rated voltage | 3V/6V/12V/24V/36V/110V/220V | |
| Life | 40000 hours | |
