G2040PV-1000 3P
Features
Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement.
No load current is considered; plug and pull design, can be charged replacement, easy to maintain.
Bult-in temperature control circuit technology, high safety performance, no after flow.
Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
Optional remote monitoring interface can be used for remote monitoring.
High working voltages, high pass flow, high safety performance and high stability.
| Product capability parameter | |
| Product Model | G2040PV/1000 |
| Uc | 1000V |
| Up | <4.0kV |
| Ures(5kA) | <2.8kV |
| In(8/20 μm) | 20kA |
| Imax(8/20 μm) | 40kA |
| Sheathing material | Fire-retardant reinforced nylon (UL94V-0) |
| Recommended area of grounding wire | 16mm2 multiple flexible conductor |
| Max backup protective fuse | 80A gL |
| Clearance and creepage distance | >25mm |
| Protection grade | IP20 |
| Normal working temperature | -40℃~80℃ |

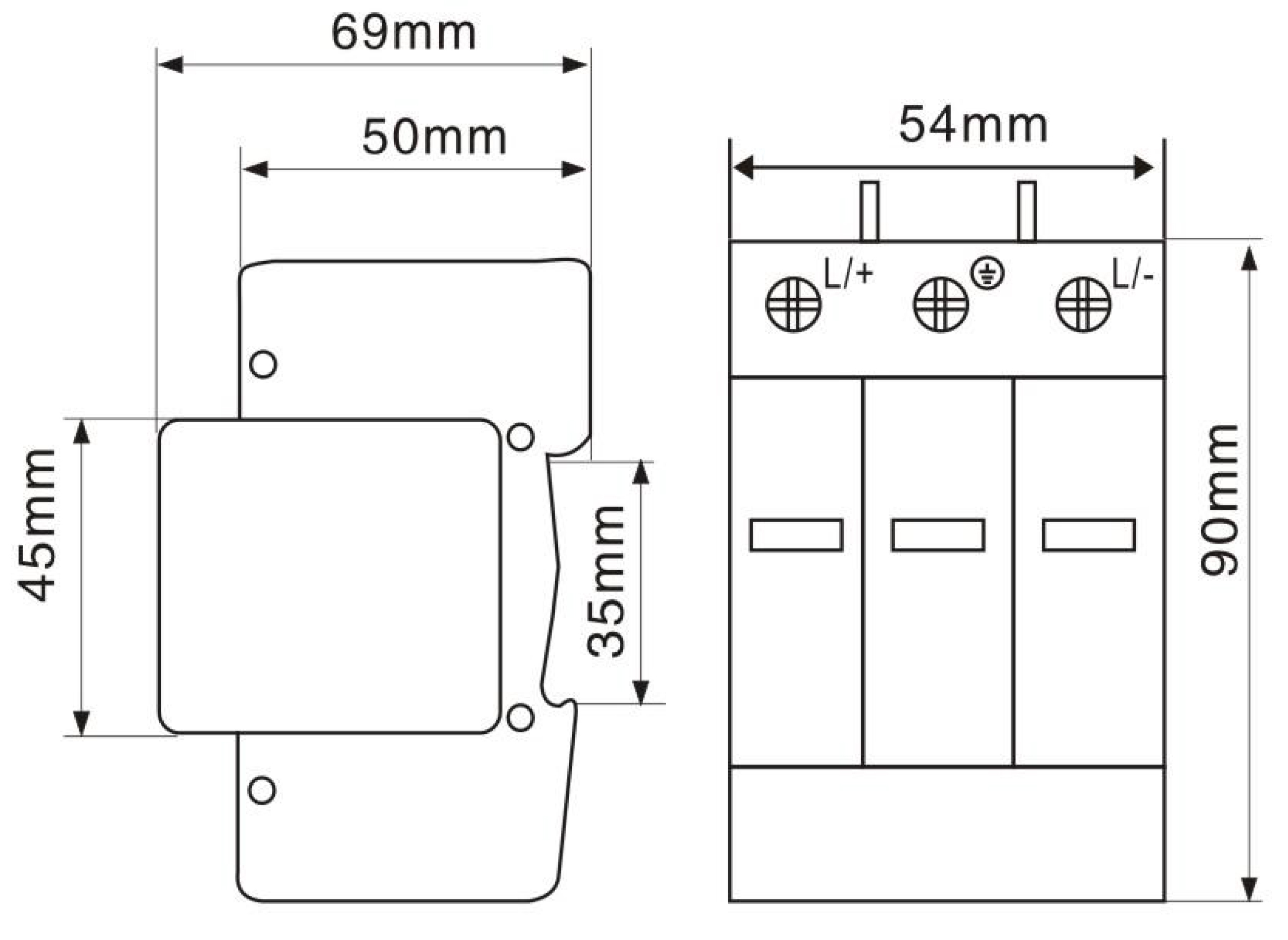

Product dimension drawing
