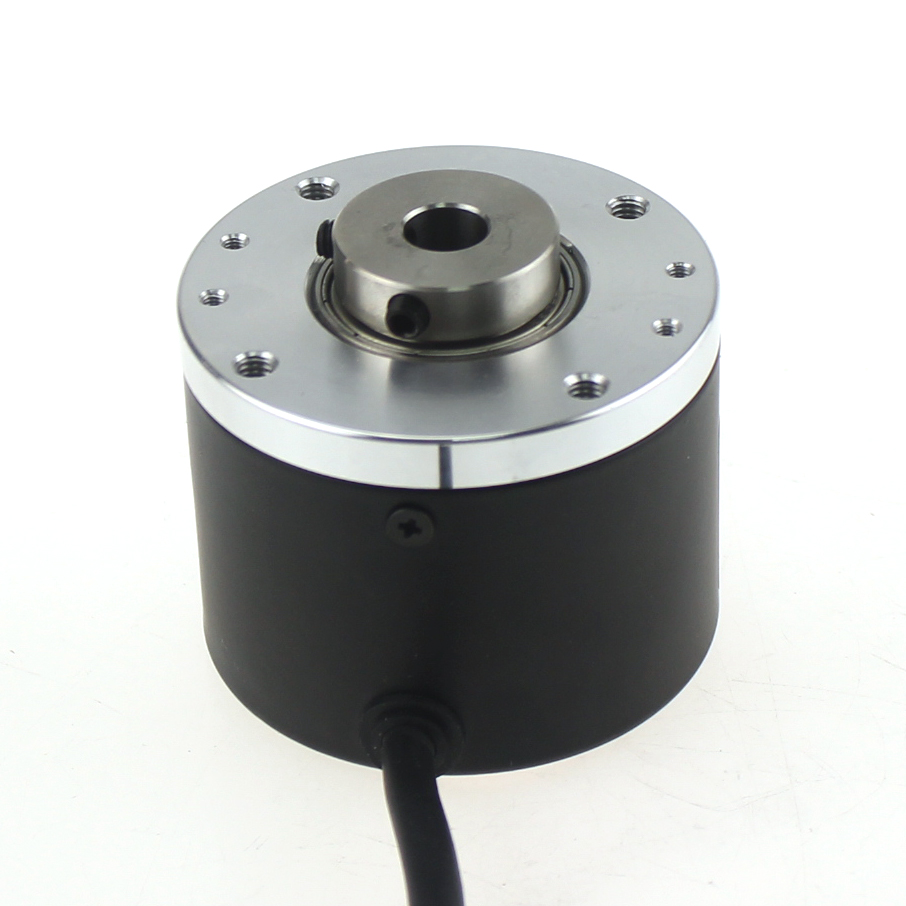

ISMM1274
Note:

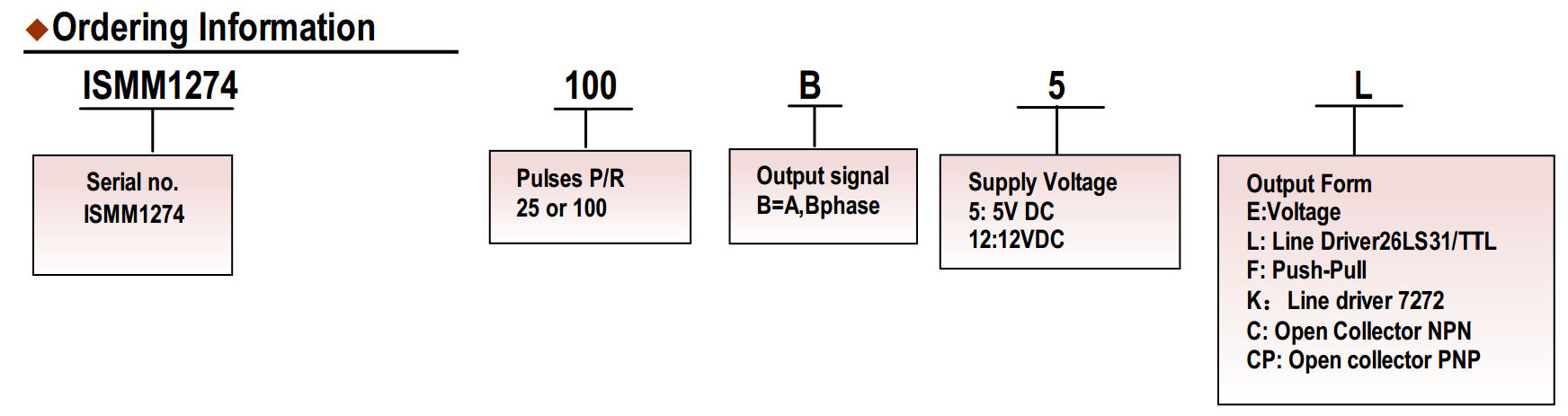

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC,12VDC option
Technical Specifications
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.2512V |
Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
Mechanical Specification | ||||
Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
600 | -25~70℃ | -30~85℃ | IP50 | 750g |

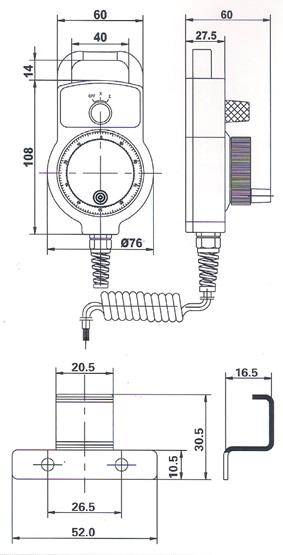

Dimensions(mm)

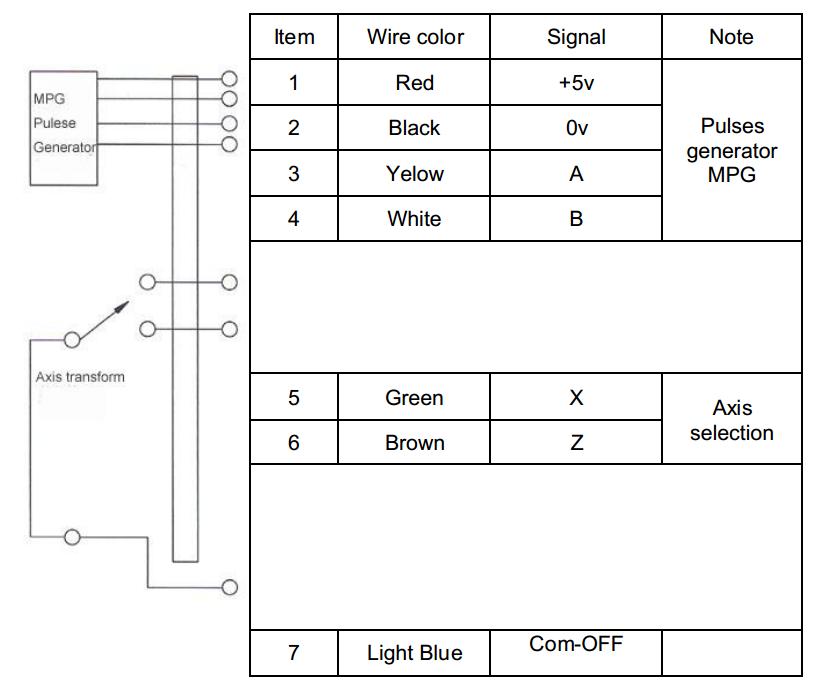

Connection Table
