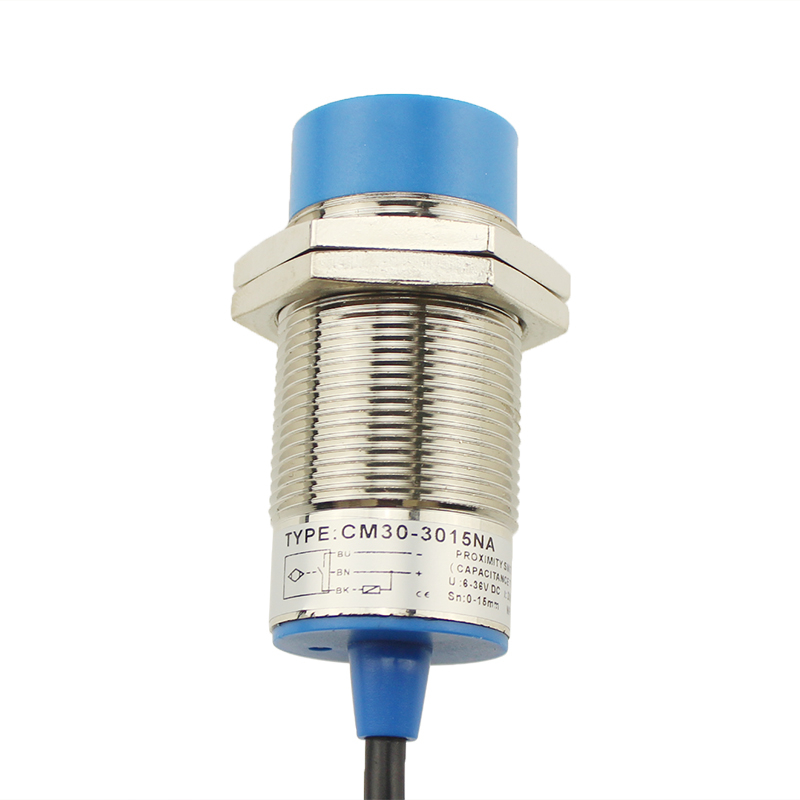

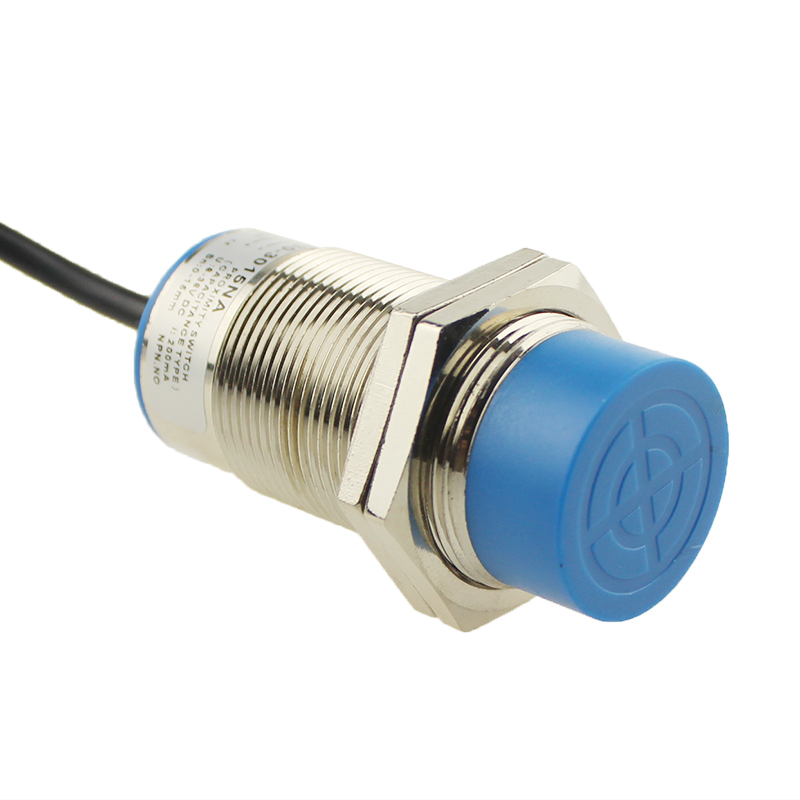

CM30-3015NA Non-Flush Type NPN IP67 Capacitive Proximity Switch Sensors

Availability:
Inquire Add to Basket

  • CM30-3015NA





Model NOCM30-3015NA
InstallationNon-Flush
Structural category Capacitance proximity switch
Detection distance15mm
Supply voltage6-36VDC
Output formNPN
Output stateNO
Output current200mA
Output voltage dropDC/ACDC≤3V  AC≤7V
Consumption currentDC≤15mA AC≤10mA
Detectable object conductor and dielectric body
DC/AC Response frequency50Hz/10Hz
Working environment temperature–25℃~75℃
Insulation resistance50MΩ
Protection gradeIP67
