Hot Sale Capacitive Proximity Switch Sensor

Availability:
Inquire Add to Basket

  • CM8-3002NA

Hot sale capacitive proximity switch sensor

Product Description

Technical parameters

Sensing range

 0-2mm
Output function NO
Operating voltage 10-30VDC
Load Current 200mA
Short-circuit protection Yes
Reverse polarity protection Yes
Overload protection Yes
Voltage drop <7V
Current consumption <10mA
Switch-point drift ≤+10
Hysteresis 5-15
Switching frequency 50Hz
Housing material Brass
Ambient temperature -25℃-70℃
Protection grade IP67
Switching status Red LED
Certification standard CE

1

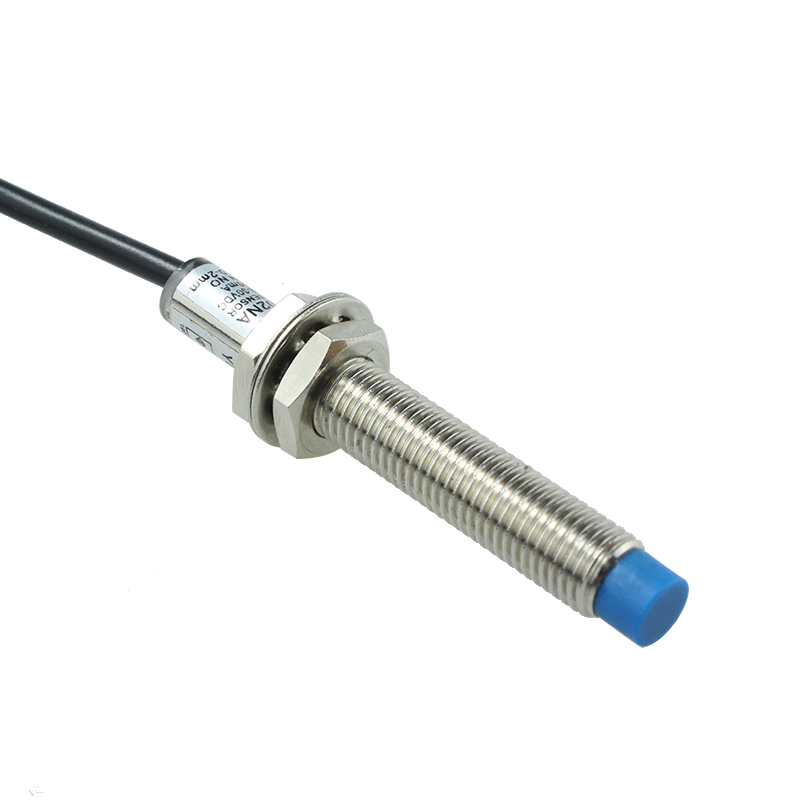

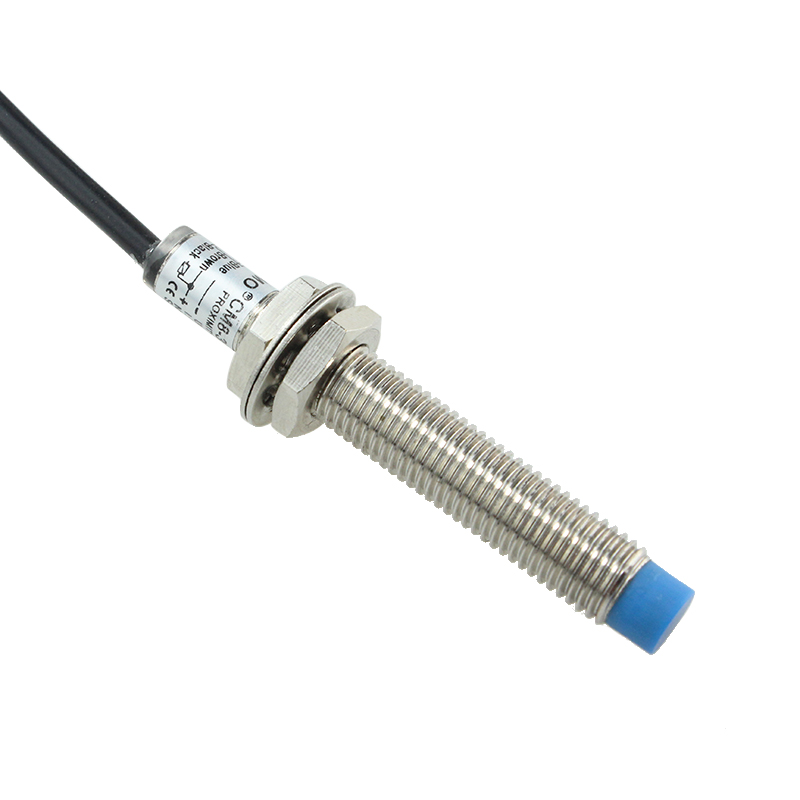

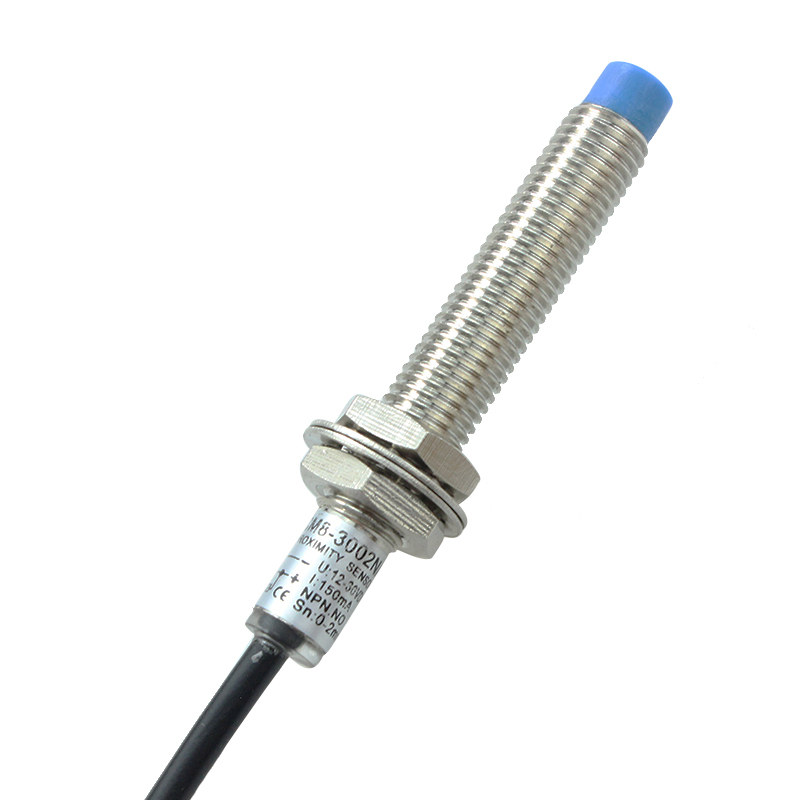

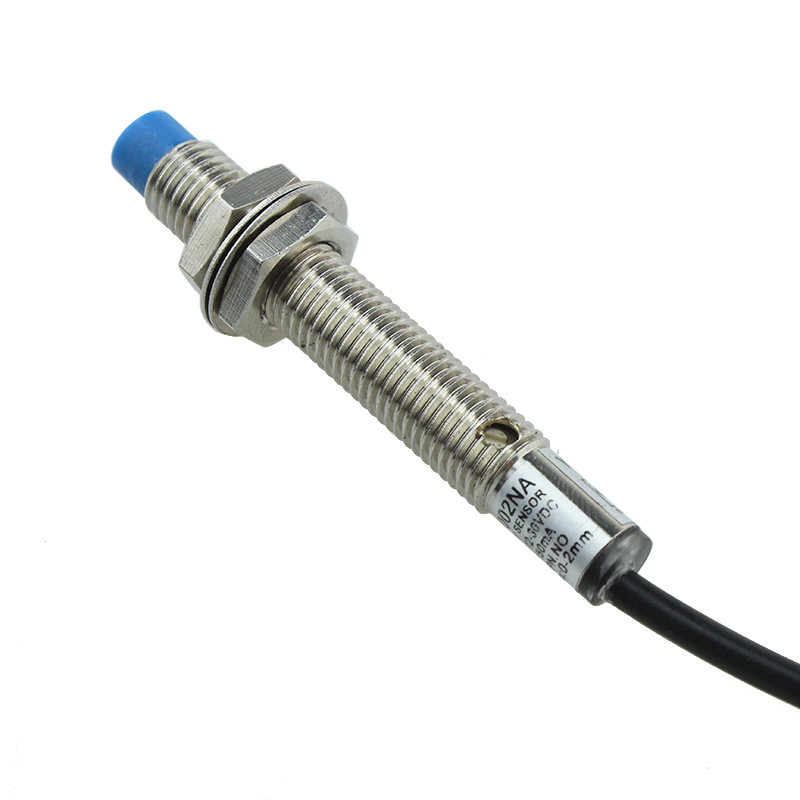

Product Pictures

CM8-3002NA (4)CM8-3002NA (8)
