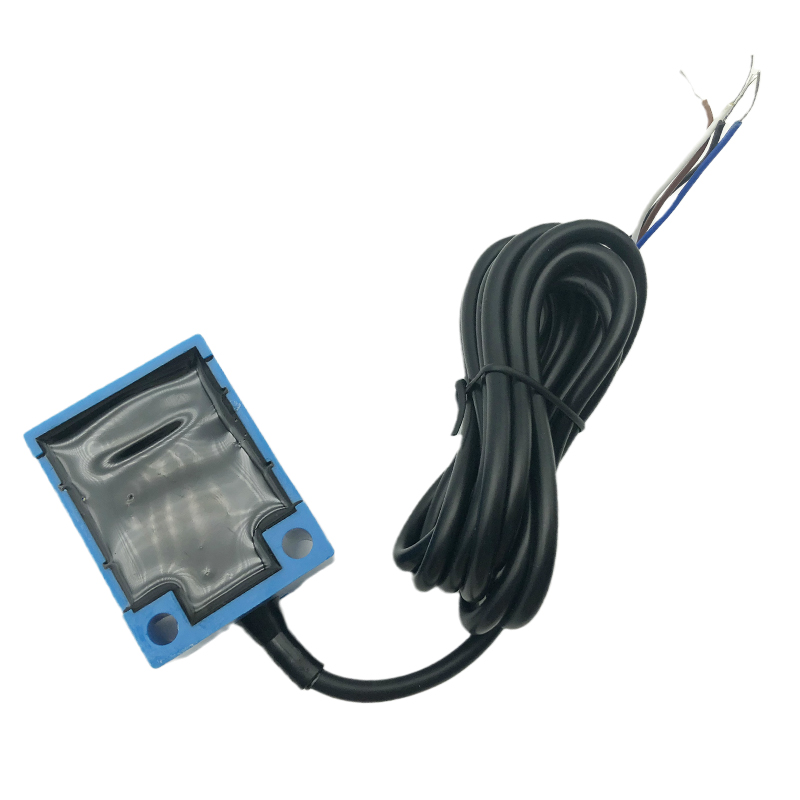

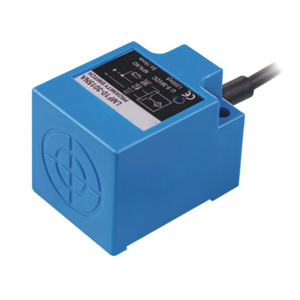

LMF10 Inductive proximity switches sensors

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
Inquire Add to Basket

  • LMF10

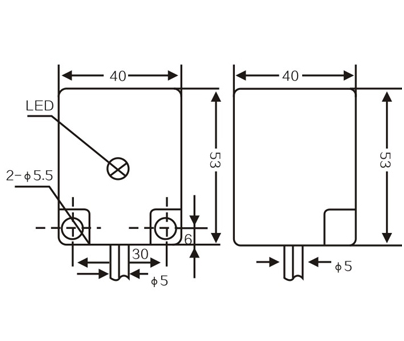

OVERALL DIMENSIONS



LMF10

DETECTION DISTANCE                             15mm


Flush


DC10-30
VDC


AC90-250
VAC

NPN

NO

LMF10-3015NA

NC

LMF10-3015NB

NO+NC

LMF10-3015NC

PNP

NO

LMF10-3015PA

NC

LMF10-3015PB

NO+NC

LMF10-3015PC

two wire
system

NO

LMF10-3015LA

NC

LMF10-3015LB

SCR
Control-lable
silicon

NO

LMF10-2015A

NC

LMF10-2015B

NO+NC

LMF10-2015C

Relay output

     DETECTION DISTANCE                           20mm


Flush


DC
10-
30
VDC


AC
90-
250
VAC

NPN

NO

LMF10-3020NA

NC

LMF10-3020NB

NO+NC

LMF10-3020NC

PNP

NO

LMF10-3020PA

NC

LMF10-3020PB

NO+NC

LMF10-3020PC

two wire
system

NO

LMF10-3020LA

NC

LMF10-3020LB

SCR
Control-
lable
silicon

NO

LMF10-2020A

NC

LMF10-2020B

NO+NC

LMF10-2020C

Controloutput

DC

200mA

SCR/Relay

500mA

Output voltagc dropDC/AC

DC<3V、AC<10V

Consumption current

DC<15mA、AC<10mA

Standard detected object

45X45X1(A3iron)

Repeated precision

0.05

DC/AC

100Hz/15Hz

Working environment temperature

-25℃～+75℃

Insulation resistance

50MΩ

Shell material

ABS Resin

Protection grade

IP67

Altemative model at home and abroad

TL-N20M


Previous:
Next:

RANDOM PRODUCTS

LM4/LM5 M4 M5 Proximity Switch Inductive Sensor
LM4/LM5 M4 M5 Proximity Switch Inductive Sensor

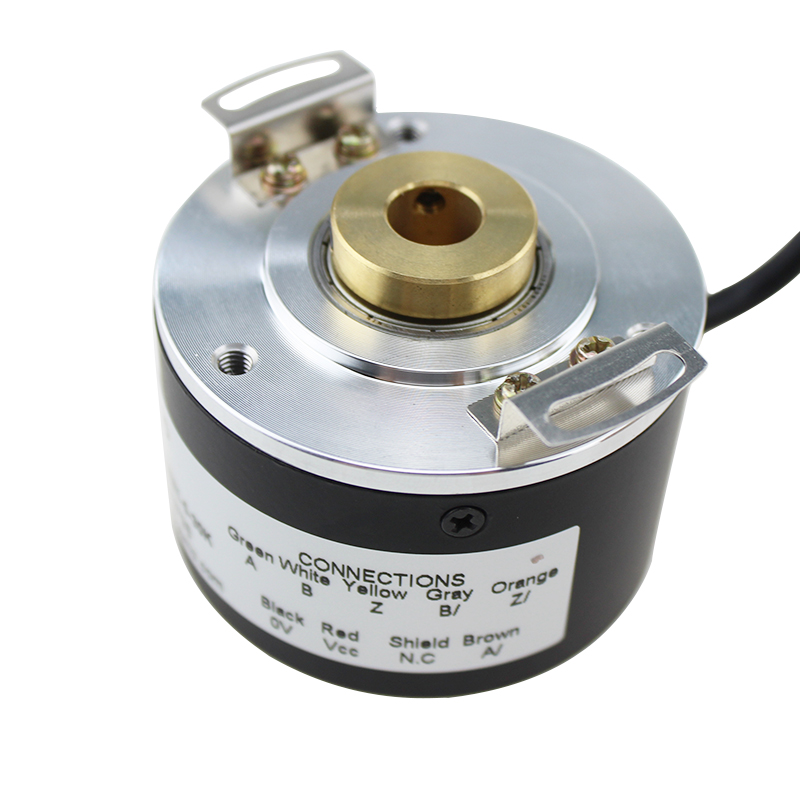

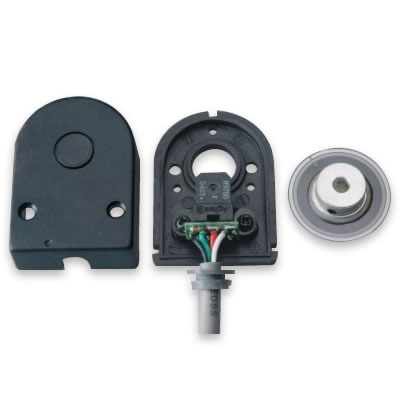

HKT30-C03 2 Channel Kit Optical Encoder cheaper Hollow Shaft Incremental motor Servomotor Encoder
HKT30-C03 2 Channel Kit Optical Encoder cheaper Hollow Shaft Incremental motor Servomotor Encoder
LM480 Inductive proximity switches sensors
LM480 Inductive proximity switches sensors

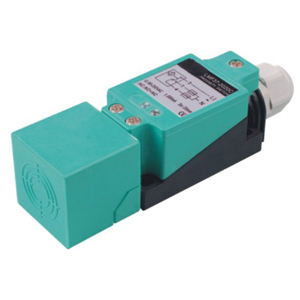

LMF37 Inductive proximity sensors
LMF37 Inductive proximity sensors
LMF41 inductive proximity switch, detection distance 0-120mm
LMF41 inductive proximity switch, detection distance 0-120mm

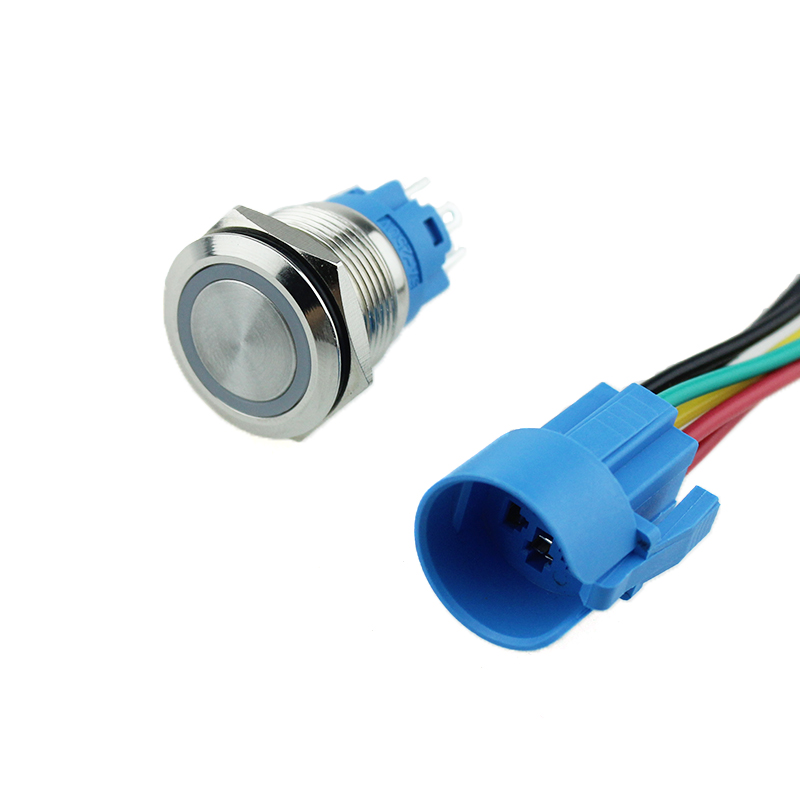

Hot Sale 19mm 250V LED Momentary Latching Push Button Switch
Hot Sale 19mm 250V LED Momentary Latching Push Button Switch
Line Drive Output 10mm Hollow Shaft Optical Rotary Encoder
Line Drive Output 10mm Hollow Shaft Optical Rotary Encoder

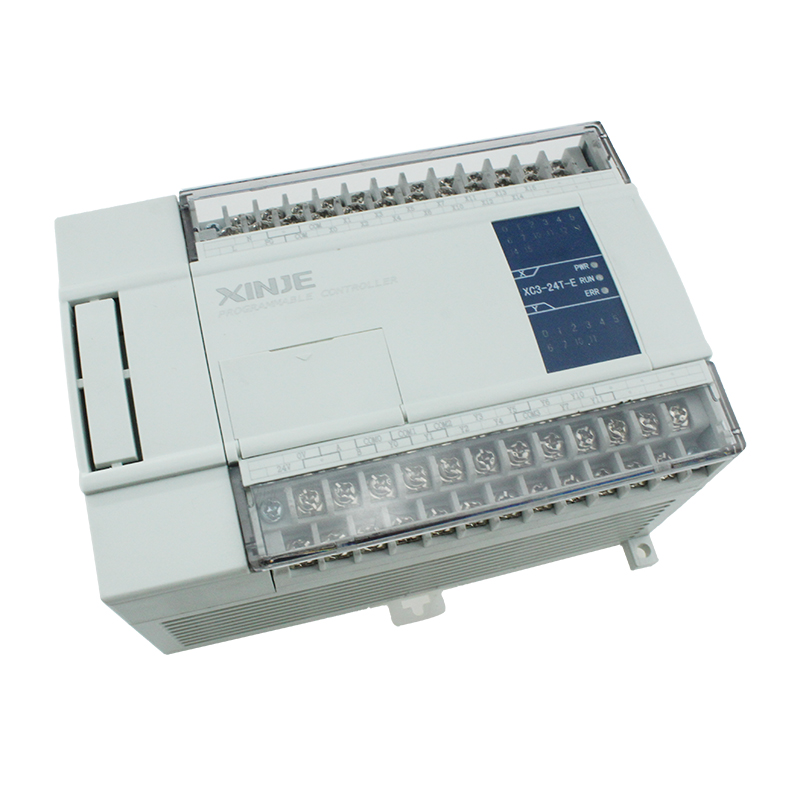

XC3-24T-E New Original PLC Programmable Controller XC3 Series XINJE PLC
XC3-24T-E New Original PLC Programmable Controller XC3 Series XINJE PLC
Vertical Mounting Type Limit Switch Door Safety Switch
Vertical Mounting Type Limit Switch Door Safety Switch

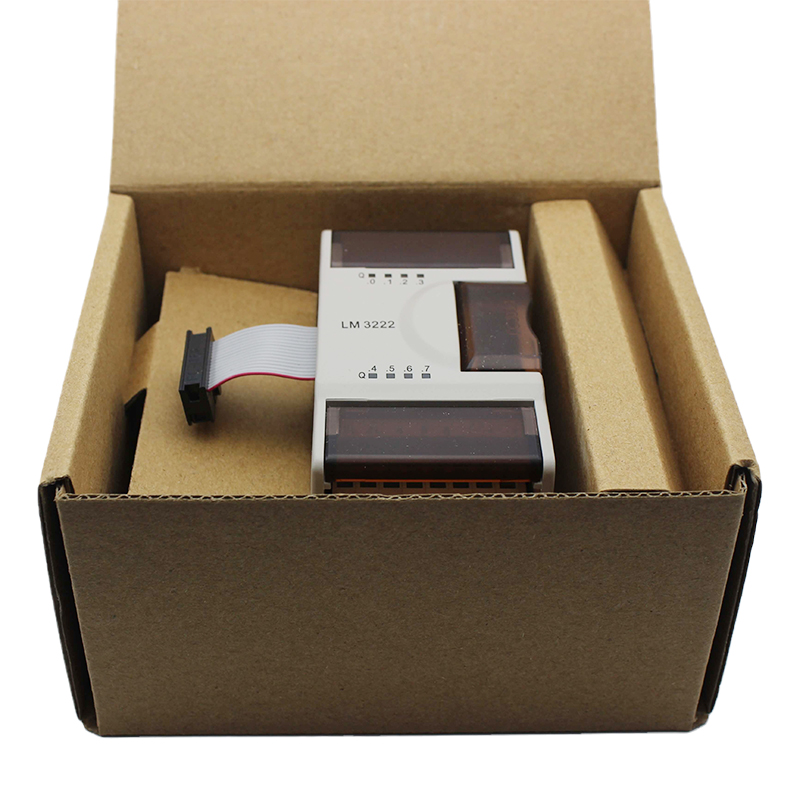

LM3222 Digital Output Module 8 Relay
LM3222 Digital Output Module 8 Relay

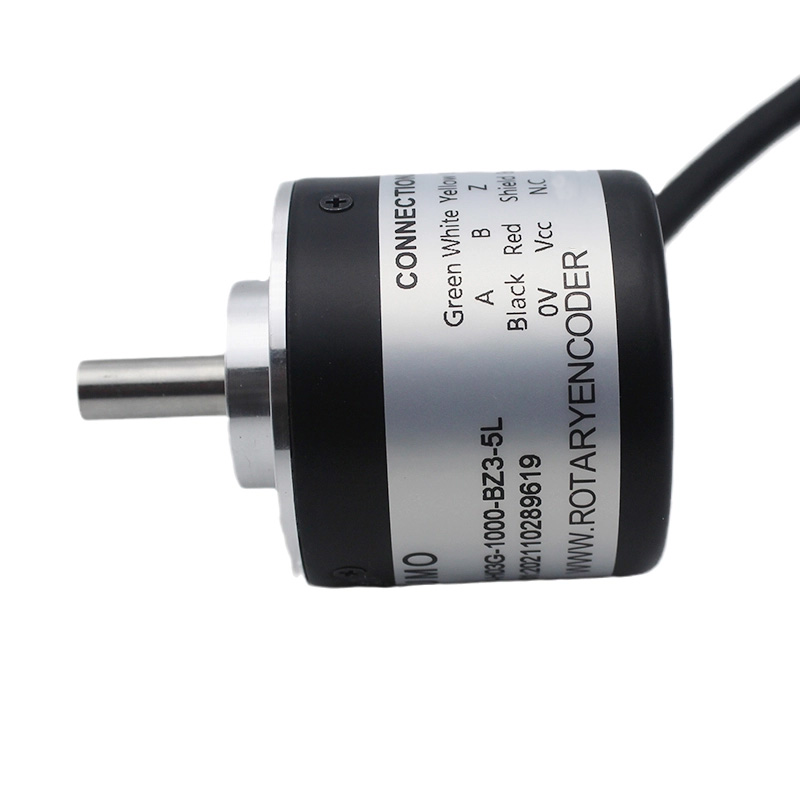

ISC3806-H03G-1000-BZ3-5L rotary position encoder shaft rotary encoder 6mm shaft encoder
ISC3806-H03G-1000-BZ3-5L rotary position encoder shaft rotary encoder 6mm shaft encoder

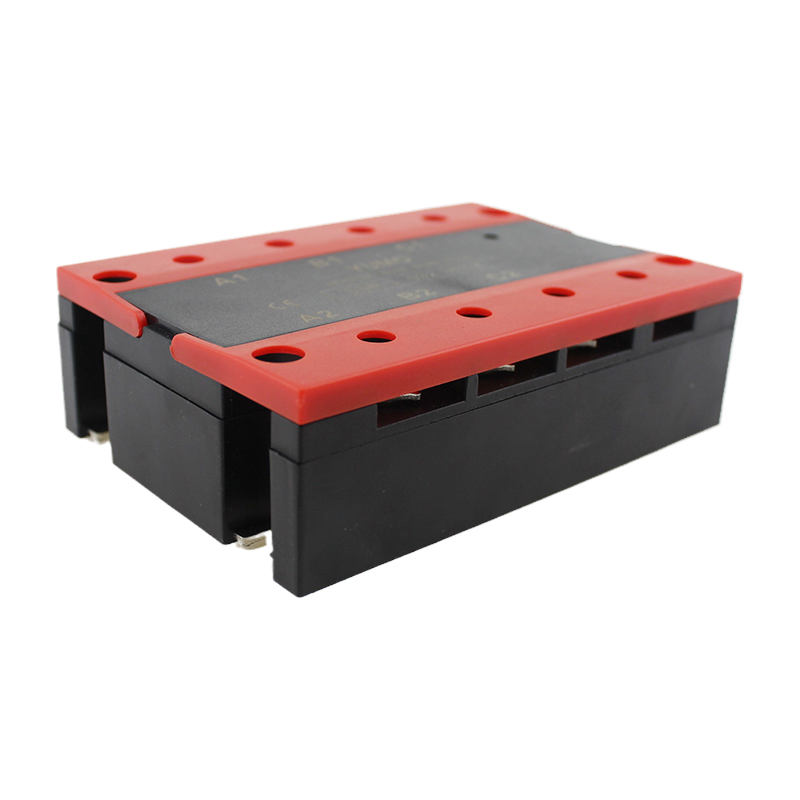

Three Phase Solid State Relay Aluminum Base Black Body with Red Cover
Three Phase Solid State Relay Aluminum Base Black Body with Red Cover

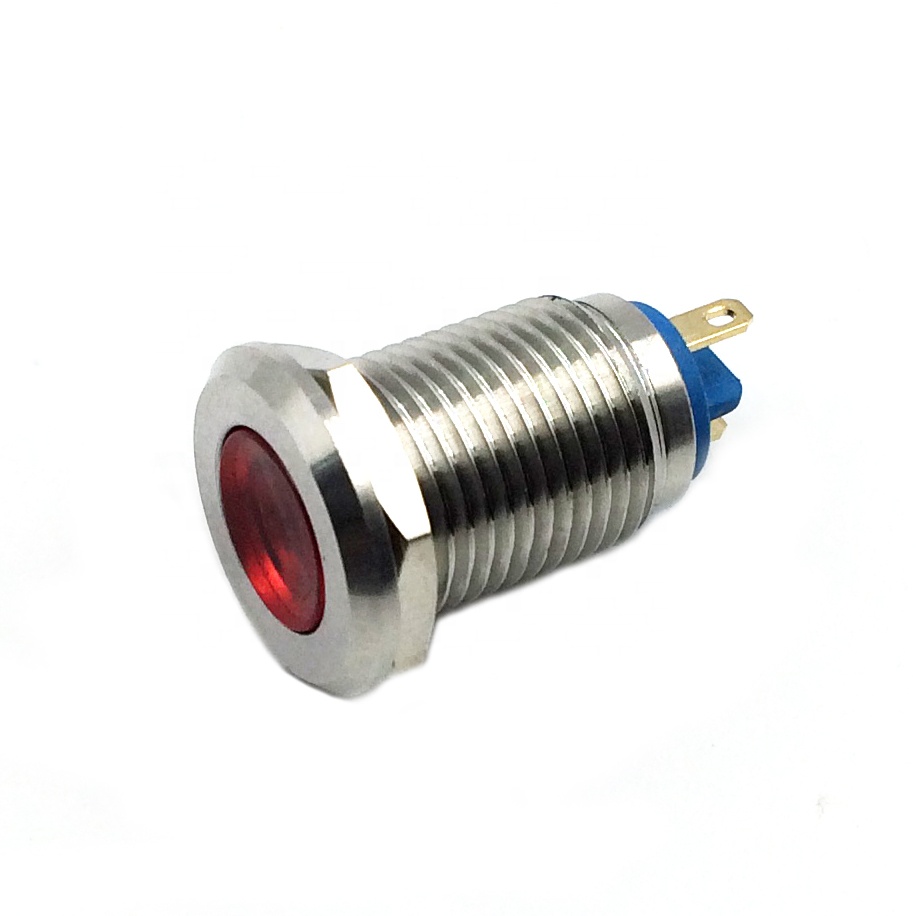

Hot sale ABI16C-P1 16mm Metal Indicator Light Series LED IP67 Indicator lamp Metal push button
Hot sale ABI16C-P1 16mm Metal Indicator Light Series LED IP67 Indicator lamp Metal push button
Electric Blanket USB Multi-function Adjustment Low Pressure Heating Blanket Warm Blanket for Convenient Travel
Electric Blanket USB Multi-function Adjustment Low Pressure Heating Blanket Warm Blanket for Convenient Travel

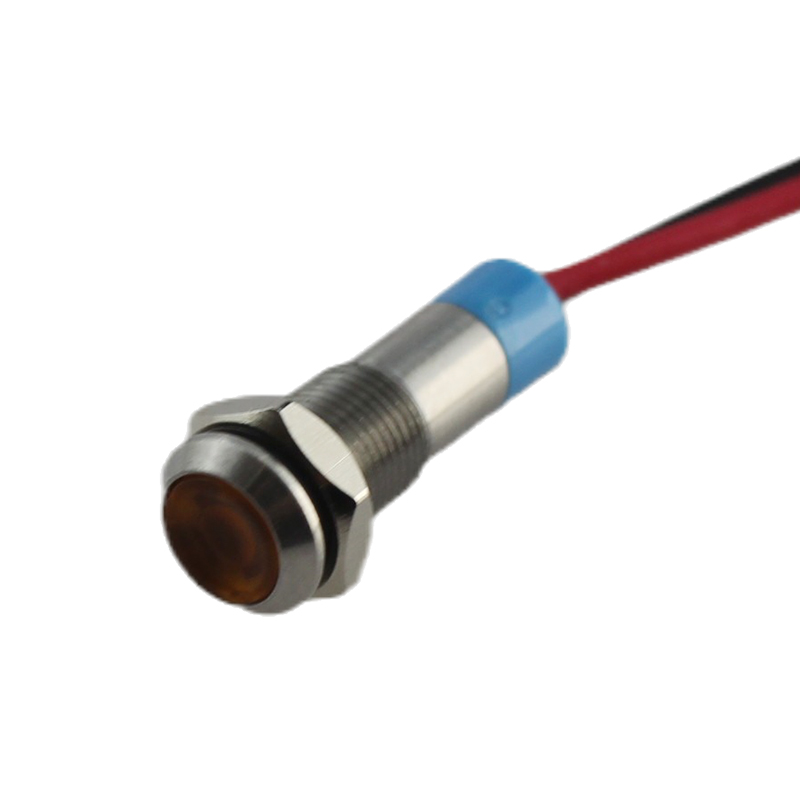

6mm Metal Push Button Switch Stainless Steel Signal Lamp DC12V Red Indicator Lamp
6mm Metal Push Button Switch Stainless Steel Signal Lamp DC12V Red Indicator Lamp
flat head Pin type 1NO copper nickel plated DC12V Metal button indicator light without wire
flat head Pin type 1NO copper nickel plated DC12V Metal button indicator light without wire

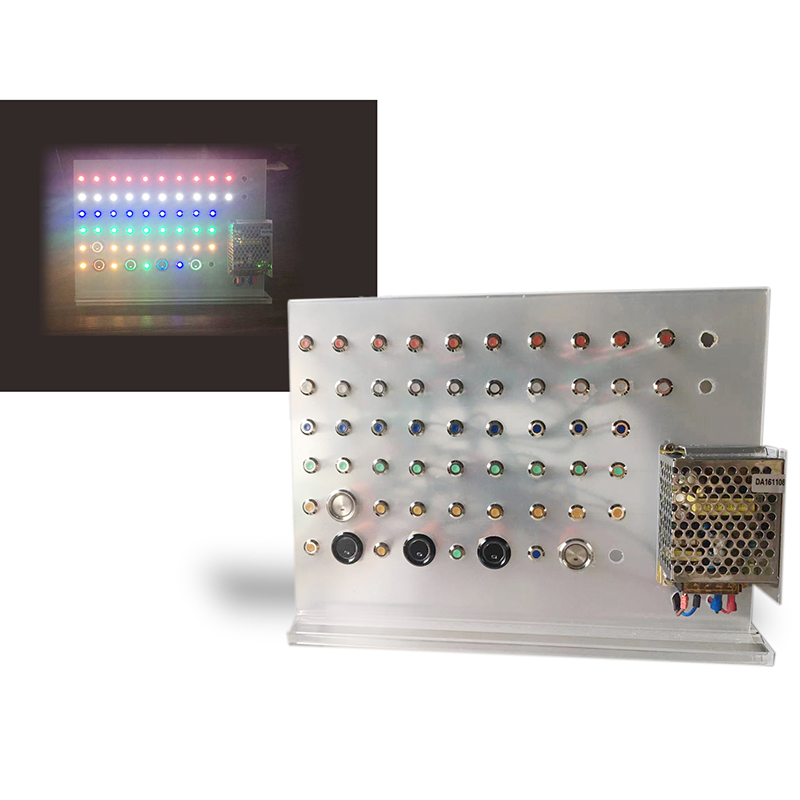

8mm Indictor display panel with Multicolor Metal Push Button Switches
8mm Indictor display panel with Multicolor Metal Push Button Switches

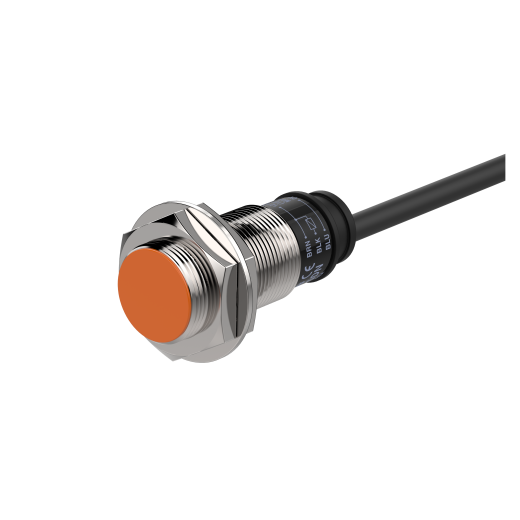

Autonics Proximity Sensor PR18-5DP
Autonics Proximity Sensor PR18-5DP

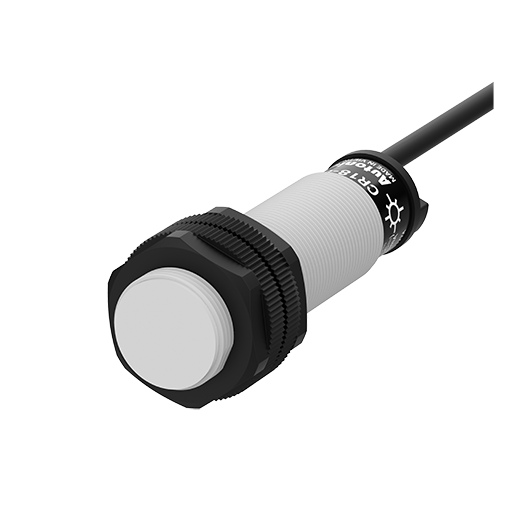

Autonics Proximity Sensor CR18-8AC
