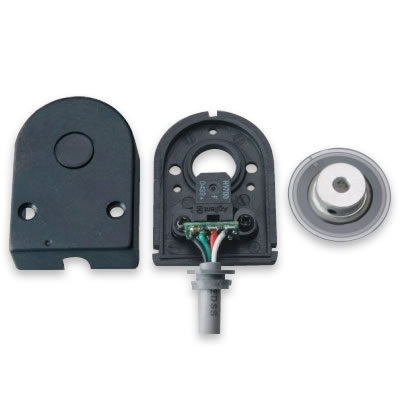

HKT30-C03

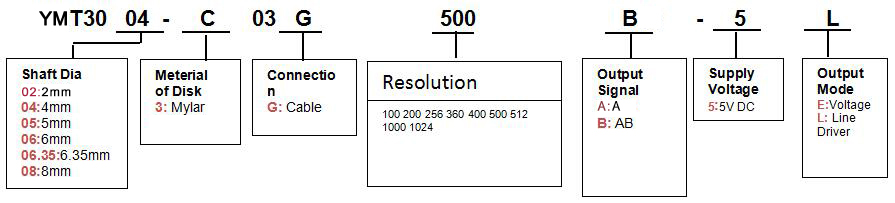

◆Note
2, 1000/1024 cpr is only available with mylar disk.
◆Feature
Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.
◆Technical Specification
| Parameter | Value | Note |
| Supply Voltage | DC5V (±10%) | Max. response frequency is gated by max. rotation speed |
| Max. Response Frequency | 100kHz | |
| Max. Rotation Speed (*1) | 3000 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns(Line Driver) | |
| Max. Rise-Fall Time | 1us(unfrozen) | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) |
◆Connection Table
Line Driver | 0V | Vcc | A+ | A- | B+ | B- | Z+ | Z- |
| Ribbon Cable | Color | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Wire Color | BK | RD | GN | BN | GY | WH | YE | OG |
| TTL | 0V | Z | A | Vcc | B |
| Ribbon Cable | Color | 2 | 3 | 4 | 5 |
| Wire Color | BK | YE | GN | RD | WH |

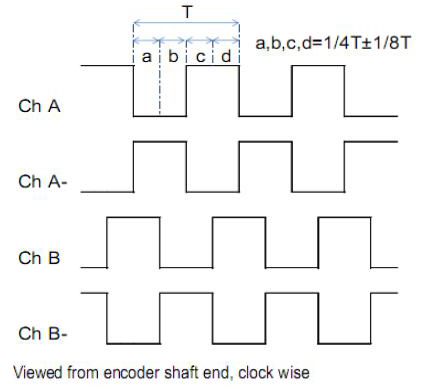

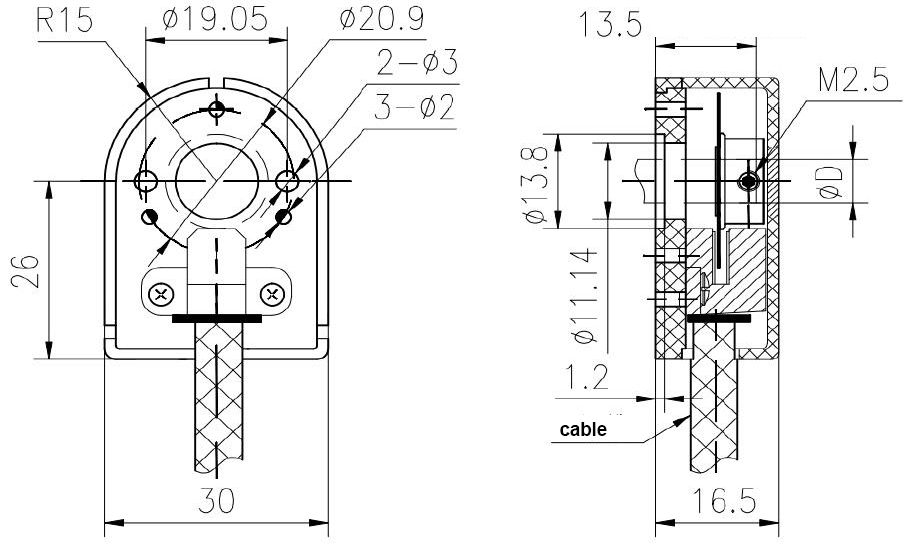

◆Diamension
