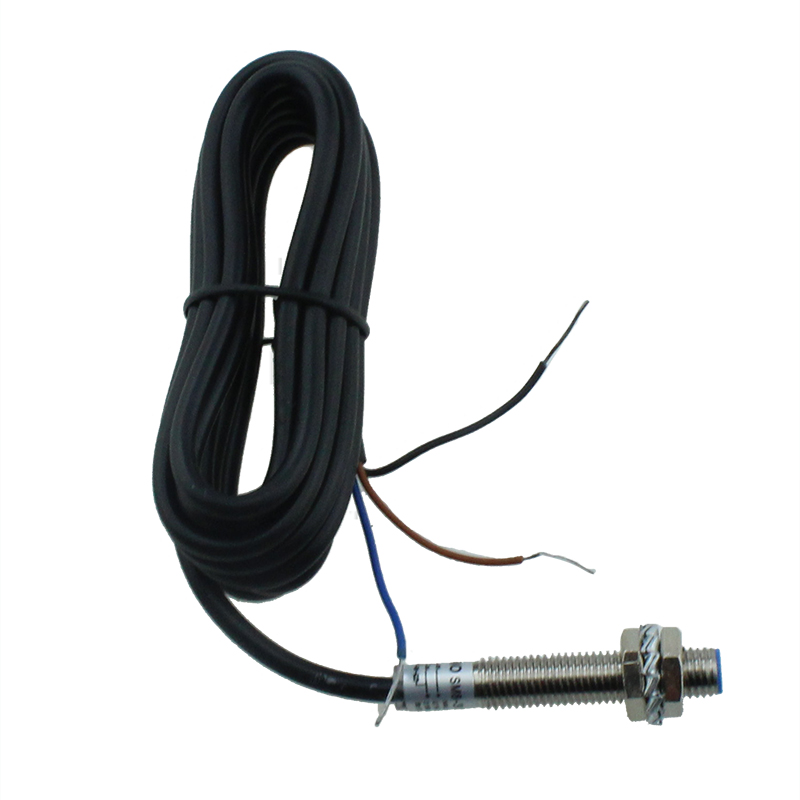

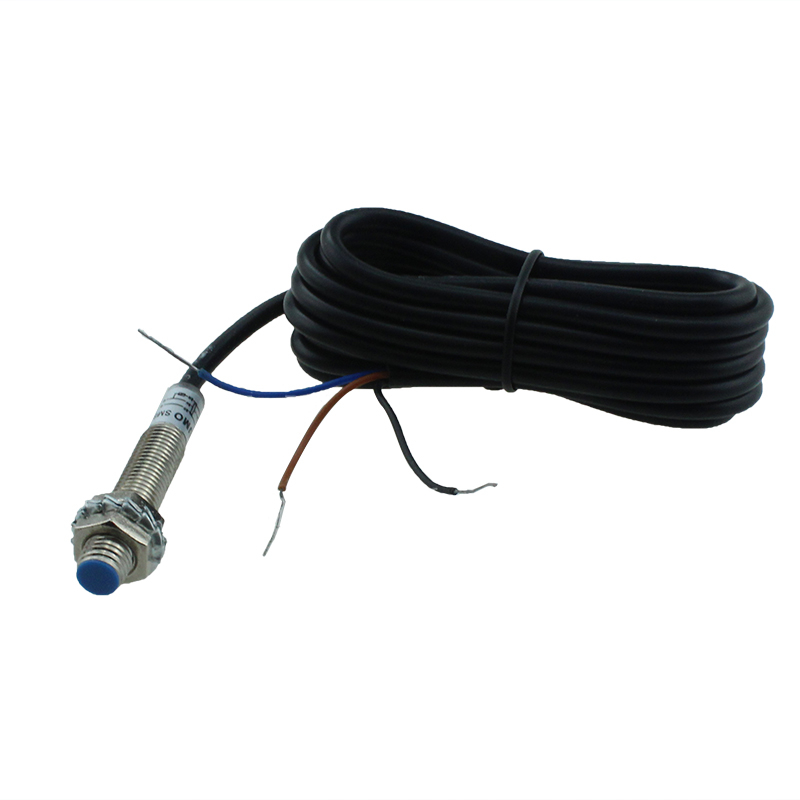

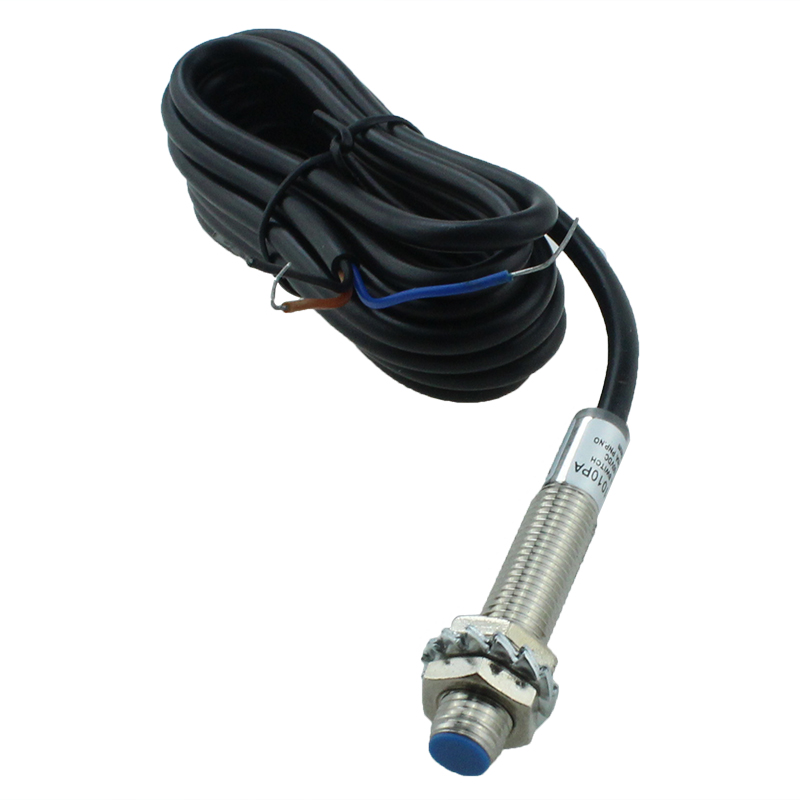

SM8-31010PA PNP NO 10mm Detection Distance Hall Effect Sensor Proximity Switch

SM series Hall sensor is a kind of magnct-sensitve scnsor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is a digital voltage signal.
Availability:
Inquire Add to Basket

  • SM8-31010PA

 SM series Hall sensor is a kind of magnct-sensitve scnsor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is a digital voltage signal.

Features:

  • Wide mains voltage range

  • High frequency

  • Long service life, compact volume, and convenient installation

  • Directly connect to transistor and logic circuit pore like, TTL.MOS



Model and parameters:
Outward appearance code SM8

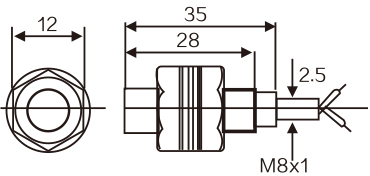

Overall dimensions SM8-31010PA
Detection distance 10mm
Mains voltage 5-24VDC
Detectable object Permanent magnet
Output low level voltage 200mV
Output high level voltage 0.1μA
Mains current 8mA
ON-OFF frequency 320KHz
Working point magnetic density 22mT
Shell material Metal
Ambient temperature -25℃~+70℃
Protection structure IP67
NPN NO SM8-31010NA
NPN NC -
PNP NO SM8-31010PA
PNP NC -




Previous:
Next:

RANDOM PRODUCTS

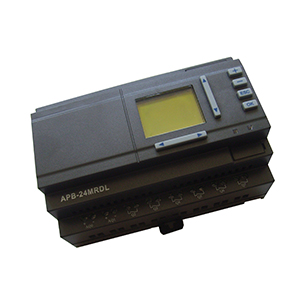

APB-24MRDL APB Series Programmable Logic Controller plc controller PLC
APB-24MRDL APB Series Programmable Logic Controller plc controller PLC
PTQ18 Photoelectric Switch Sensor
PTQ18 Photoelectric Switch Sensor
Hokuyo UST-20LX Scanning Laser Rangefinder
Hokuyo UST-20LX Scanning Laser Rangefinder

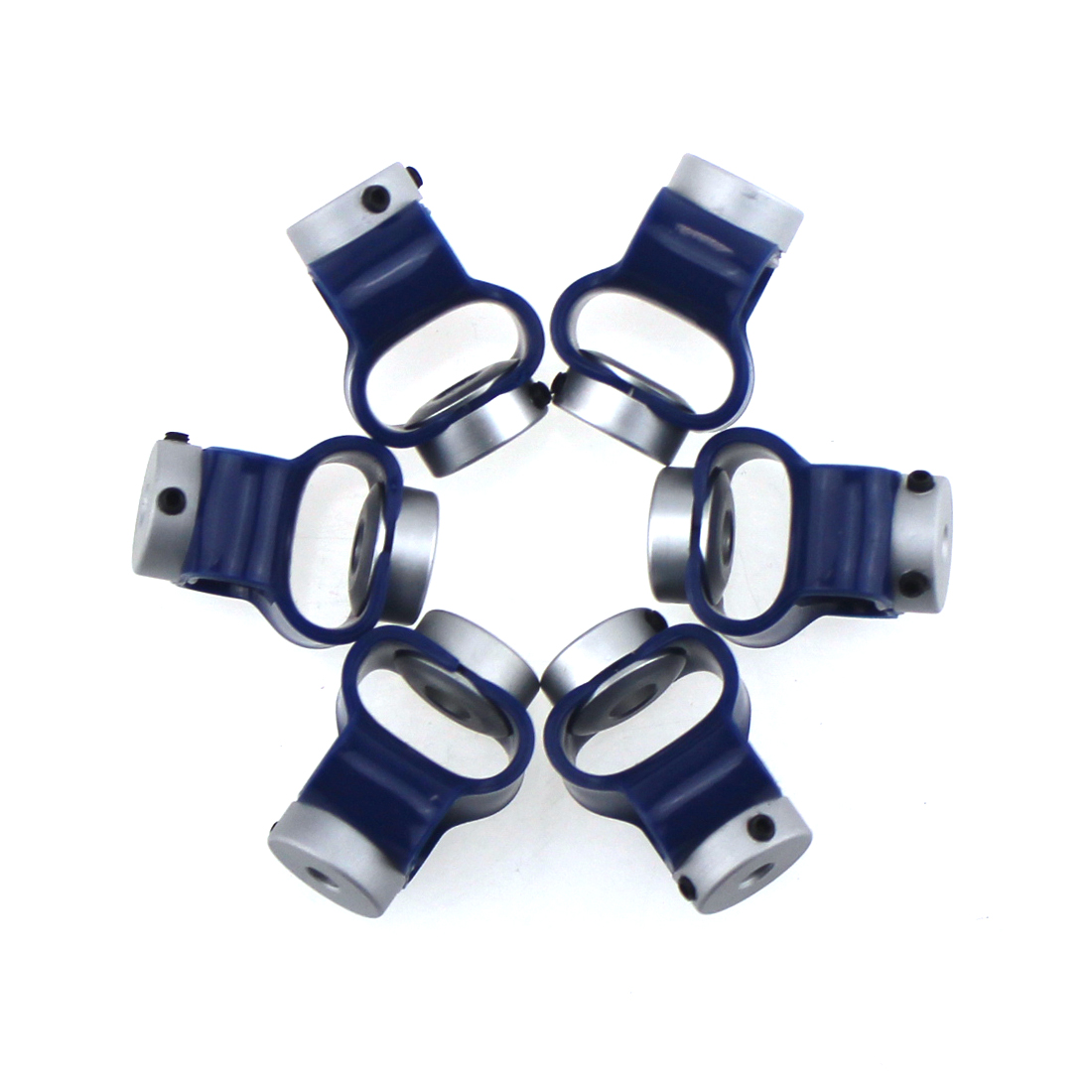

LS-D-D22L31 Encoder coupling 8-shaped coupling stepping servo motor torque Flexible couplings
LS-D-D22L31 Encoder coupling 8-shaped coupling stepping servo motor torque Flexible couplings
Screw Terminal Block UK 10N 10mm
Screw Terminal Block UK 10N 10mm
USLKG10N Screw 10mmq Din-rail Earth Clamp Terminal Block
USLKG10N Screw 10mmq Din-rail Earth Clamp Terminal Block

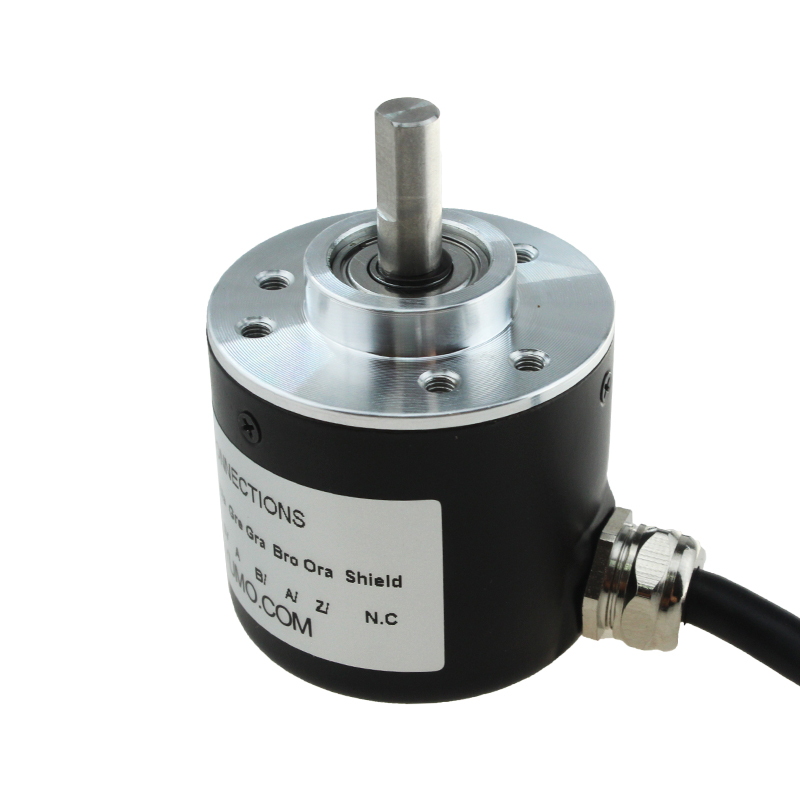

ISC3806 6mm 1024ppr Mini Incremental Rotary Encoder
ISC3806 6mm 1024ppr Mini Incremental Rotary Encoder

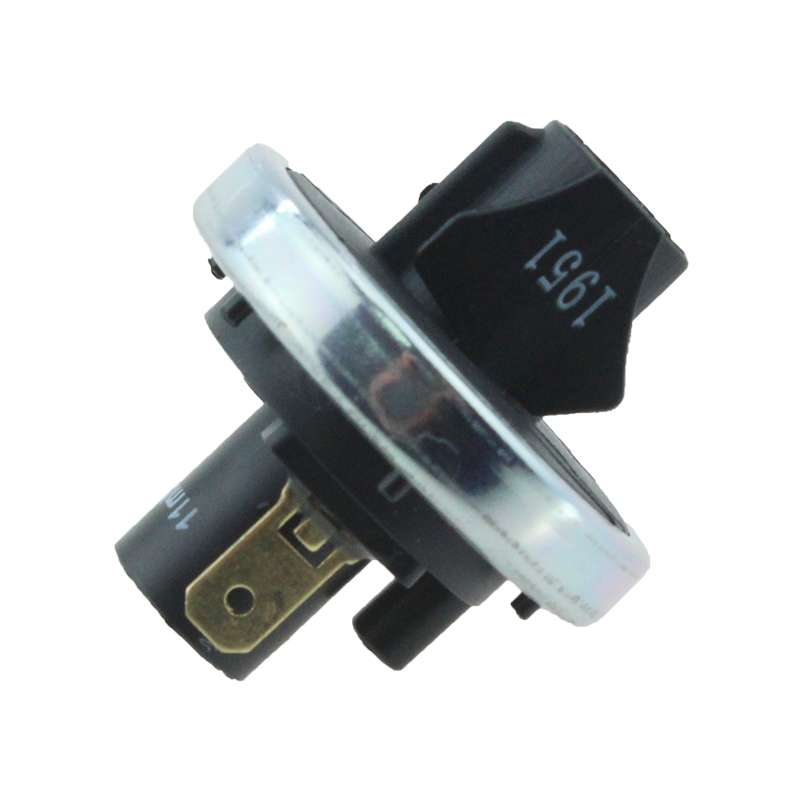

LFS 03 11mbar Adjustable Miniature Pressure Vacuum Switch
LFS 03 11mbar Adjustable Miniature Pressure Vacuum Switch
JS16B-10/S Stainless Steel Half Ball Type Metal Push Button with 1NO Screw Terminal
JS16B-10/S Stainless Steel Half Ball Type Metal Push Button with 1NO Screw Terminal

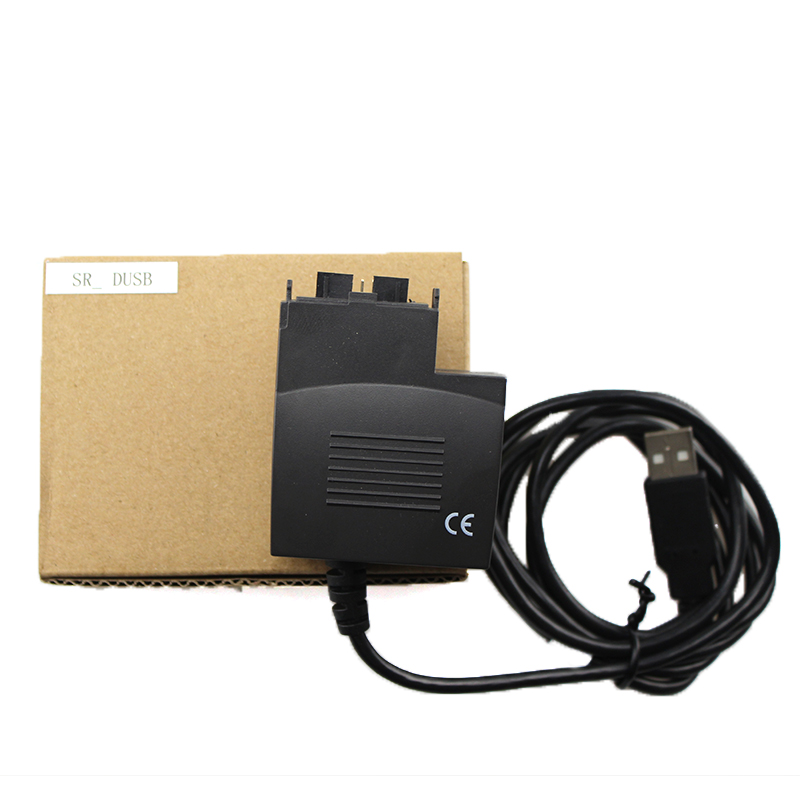

SR-DUSB PLC The Interface between SR And PC USB Port (frontispiece Plug Type)
SR-DUSB PLC The Interface between SR And PC USB Port (frontispiece Plug Type)
LM05-3001PA 1mm Detection Distance PNP NO Output Waterproof Proximity Sensor
LM05-3001PA 1mm Detection Distance PNP NO Output Waterproof Proximity Sensor
GM40-32J 24VDC 1000mm detect length Light Curtain Sensor light barrier
GM40-32J 24VDC 1000mm detect length Light Curtain Sensor light barrier
ISC3806-001E-500-BZ1-5-30CP measuring for speed or position incremental rotary encoder
ISC3806-001E-500-BZ1-5-30CP measuring for speed or position incremental rotary encoder

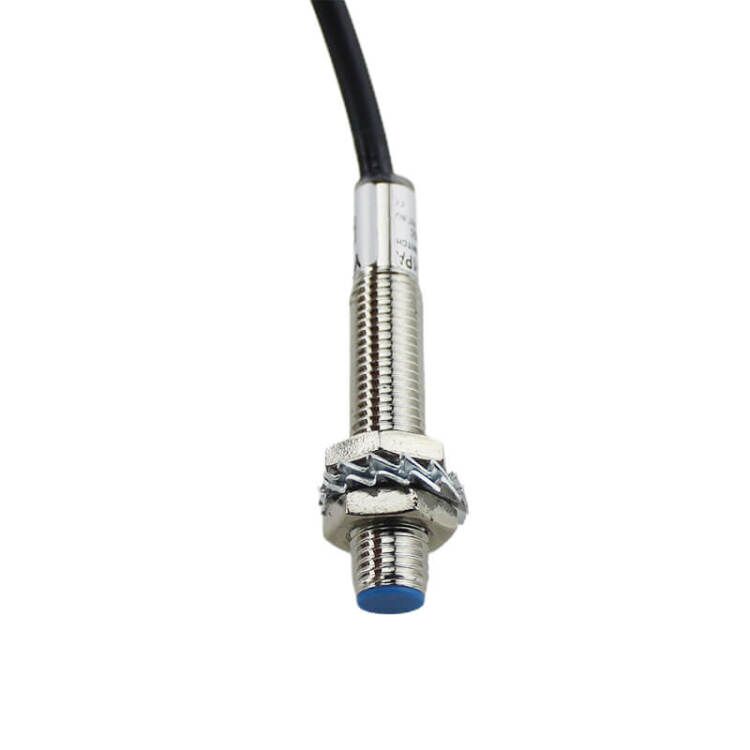

LM8-3001PA PNP NO IP67 Inductance Proximity Switch Sensor
LM8-3001PA PNP NO IP67 Inductance Proximity Switch Sensor

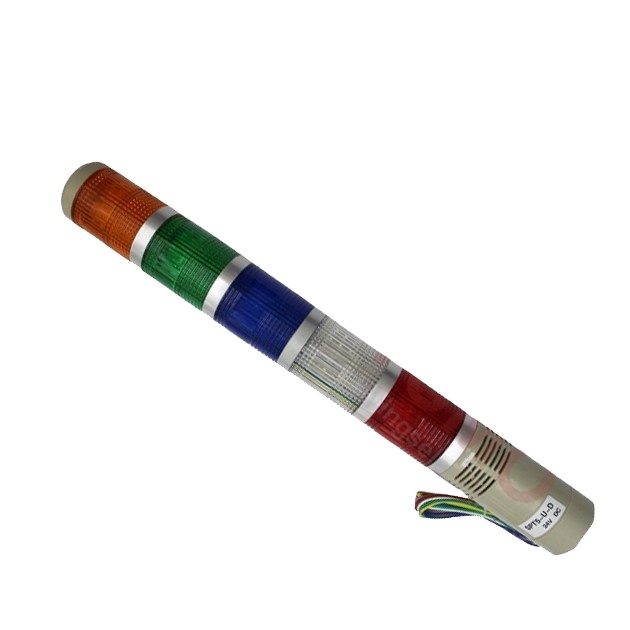

Manufacturer SPT5 5 color 24V safety LED industrial lighting Warning Light dark light tower
Manufacturer SPT5 5 color 24V safety LED industrial lighting Warning Light dark light tower

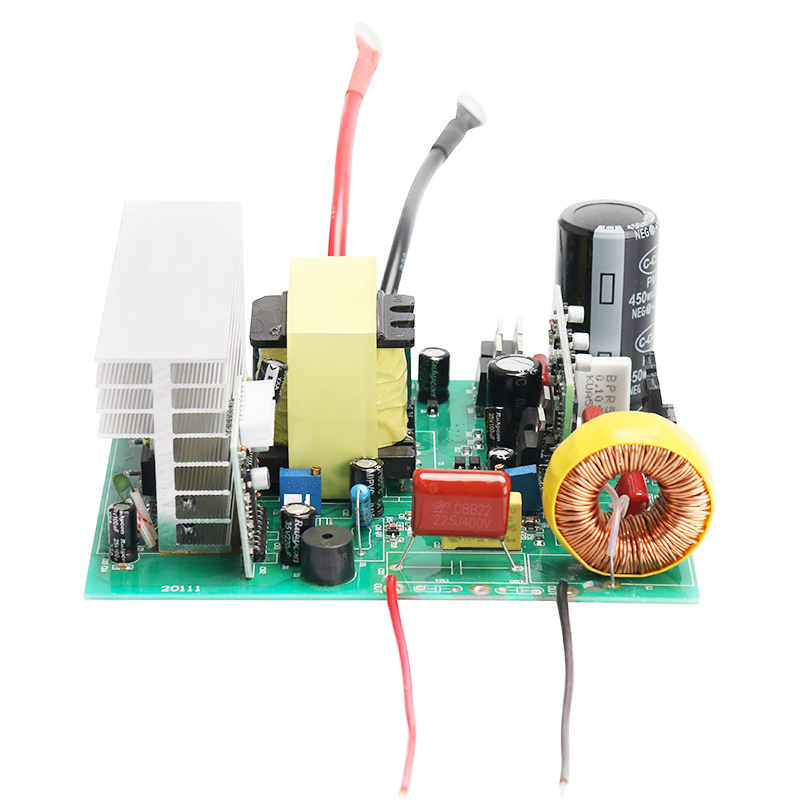

Pure sine wave inverter 500W PCB bare board with independent radiator
Pure sine wave inverter 500W PCB bare board with independent radiator

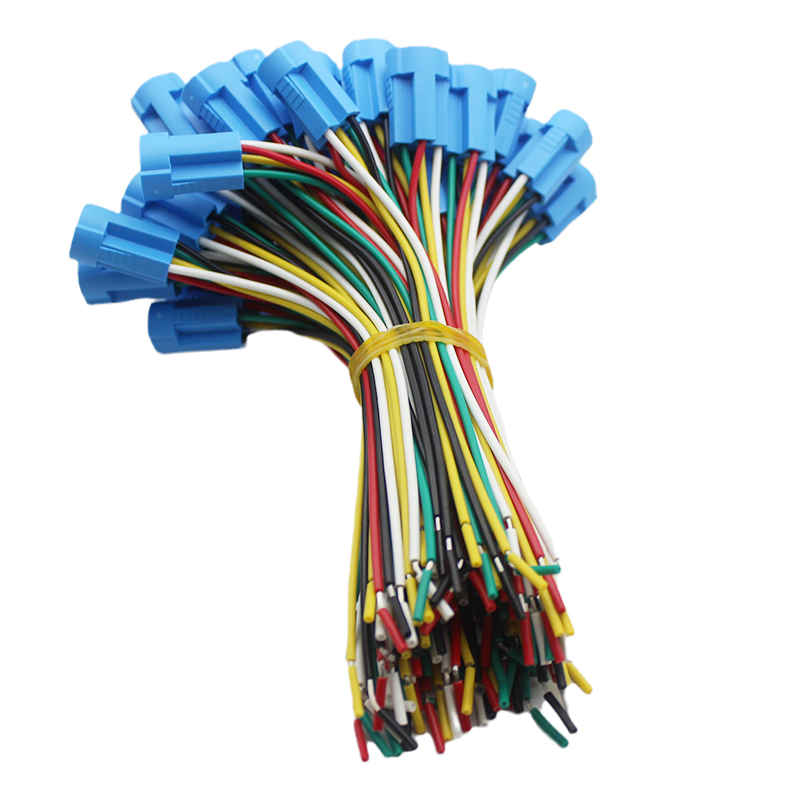

P-16 Socket Plastic Socket for 16mm metal push button switch
