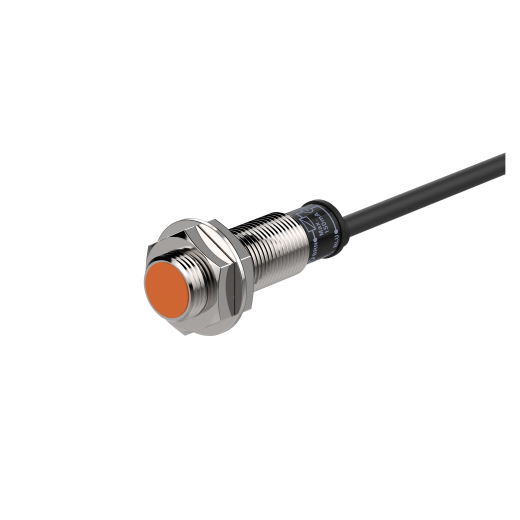

PRT12-2DC
AUTONICS
Description:
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Installation | Flush |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 1.5kHz |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67(IEC standard) |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 84g(approx. 72g) |
