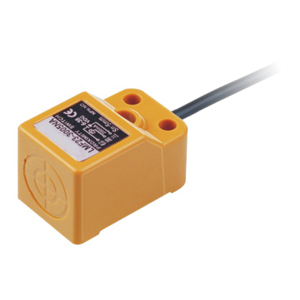

LMF23

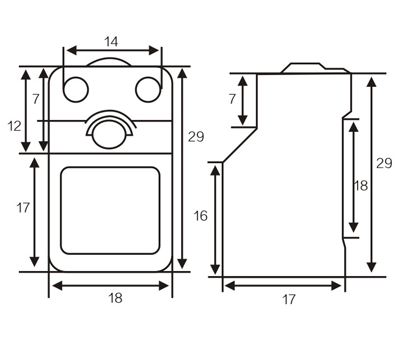

OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 5mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF23-3005NA |
| NC | LMF23-3005NB | |||
| NO+NC | LMF23-3005NC | |||
| PNP | NO | LMF23-3005PA | ||
| NC | LMF23-3005PB | |||
| NO+NC | LMF23-3005PC | |||
two wire system | NO | LMF23-3005LA | ||
| NC | LMF23-3005LB | |||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | ||||
| Output voltagc dropDC/AC | NPN PNP<3V、two-wire<3.9V AC<10V,DC<3V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 20X20X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 500Hz | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | ||||
OVERALL DIMENSIONS | | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 5mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF23-3005NA |
| NC | LMF23-3005NB | |||
| NO+NC | LMF23-3005NC | |||
| PNP | NO | LMF23-3005PA | ||
| NC | LMF23-3005PB | |||
| NO+NC | LMF23-3005PC | |||
two wire system | NO | LMF23-3005LA | ||
| NC | LMF23-3005LB | |||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | ||||
| Output voltagc dropDC/AC | NPN PNP<3V、two-wire<3.9V AC<10V,DC<3V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 20X20X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 500Hz | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | ||||
