SR012C-6

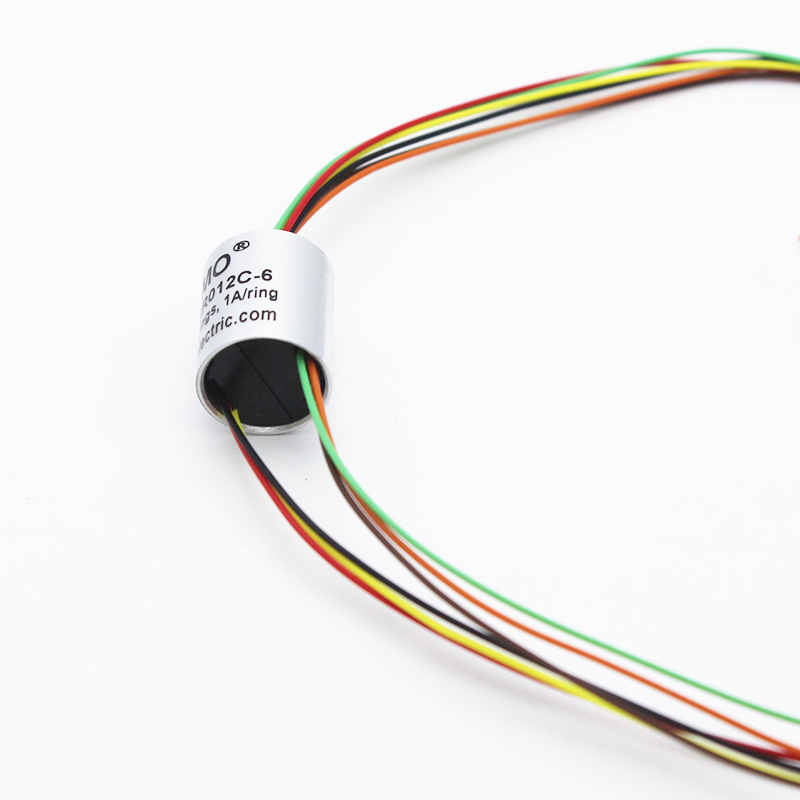

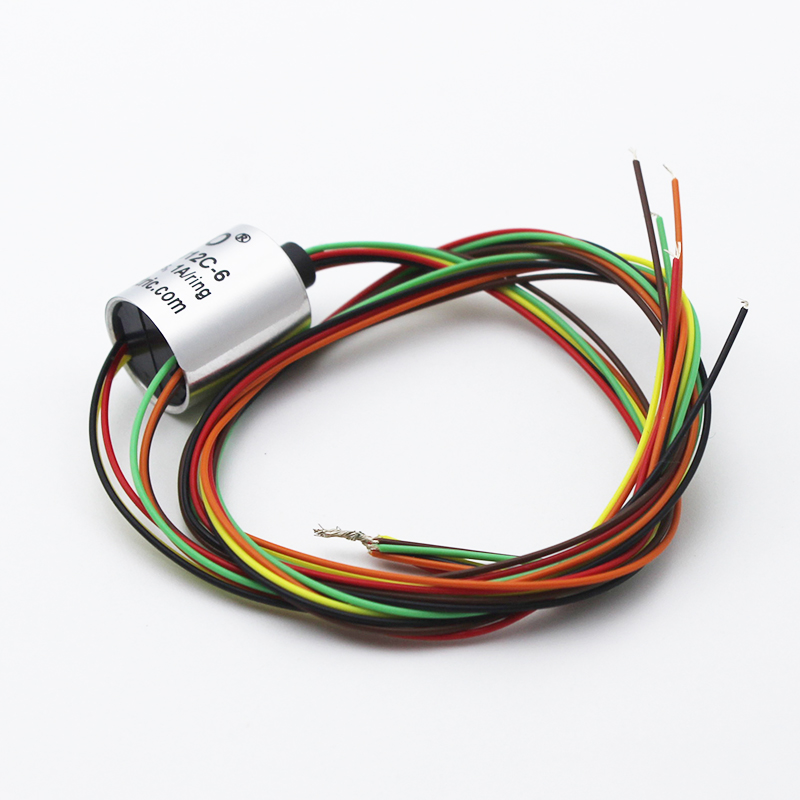

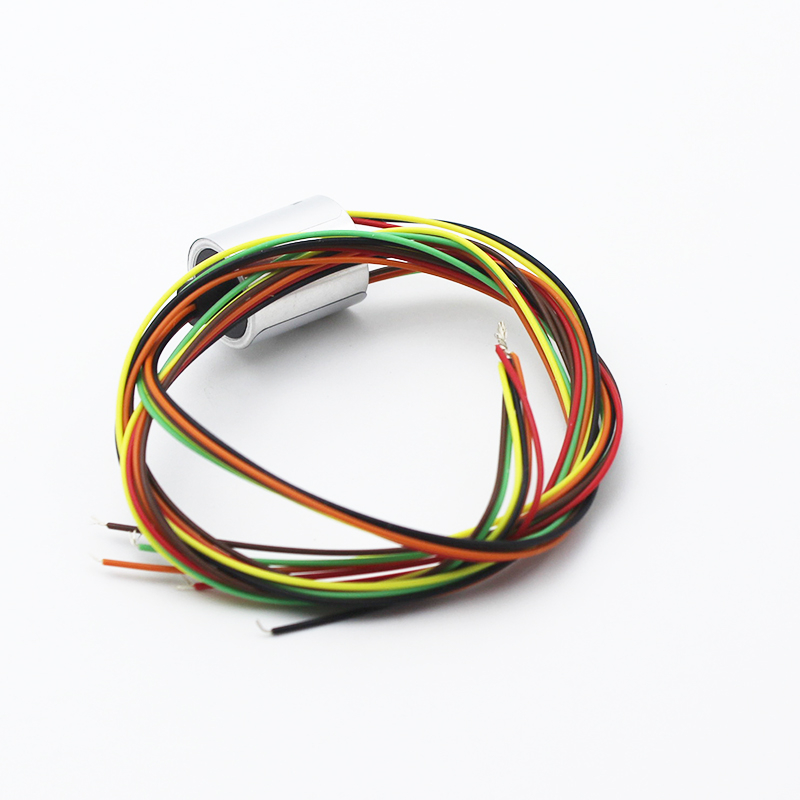

Hot Sales SR012C-6 Connector OD12mm 6wires Electric Swivel Slip Ring
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SR Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
*Computer peripherals
*Display equipment Medical equipment
| Specification List | ||
| Type | Rings | D1A *LG |
| SR012C-6 | 6 | Φ12.5*17 |
| Mechanical data | ||
| Specification | Unit | |
| Operate Speed | 250 rpm | |
| Temperature range | -20℃~+80℃ | |
| Contact material surface | Gold - gold | |
| The steel bearing | The precise small steel ball bearing | |
| Electric data | ||
| Specification | Unit | |
| Voltage | 240VDC-240VAC | |
| Lead size | Colour coded FPE insulated lead wires | |
| Standard Lead length | 250mm(other lengths on request) | |
| High pot | 500VAC@60Hz 60S | |
| Insulation Resistance | 1000MΩ/500VDC | |
| Dynamic contact Resistance | <0.01OΩ | |
