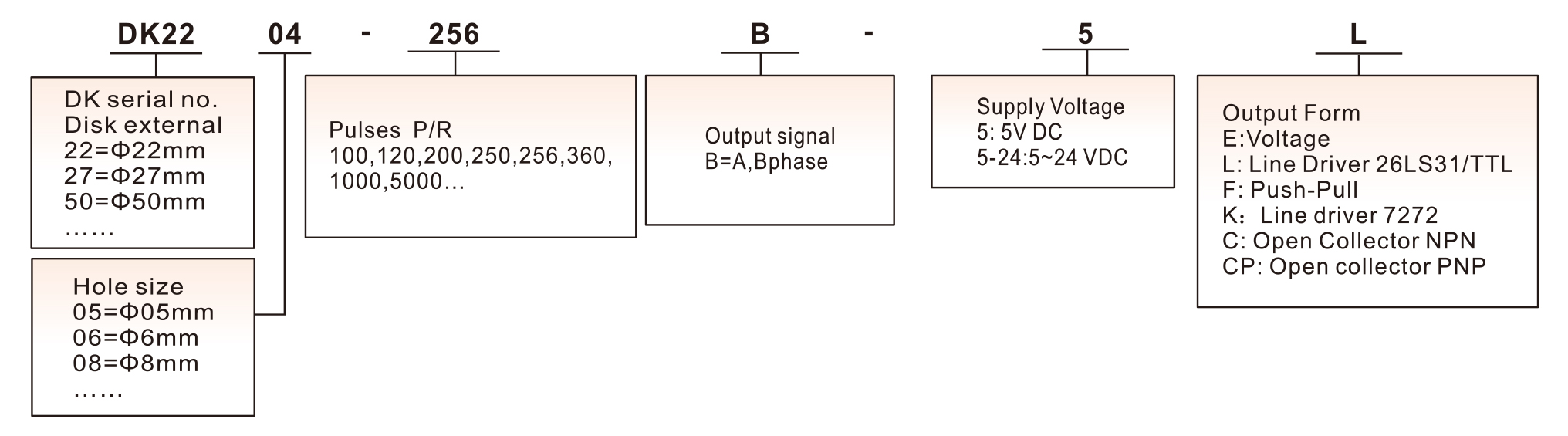

DK22
◆Note
1. Please contact sales representative to confirm the correctness and availability of the part number
2. If with grating base max hole size 10mm, without grating base max hole size 17mm
◆Feature
Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.
◆Technical Specification
| Specification | Code | Metal grating | Metal grating | Glass grating |
Storage temperature | Ts | -40~100℃ | -40~85℃ | -40~100℃ |
| Working temperature | TA | -40~100℃ | -40~85℃ | -40~100℃ |
| Speed | - | 30,000RPM | 30,000RPM | 12,000RPM |
| Humidity | - | - | Non condensing | - |
| Accelerated speed | - | 250,000Rad/Sec2 | 250,000Rad/Sec2 | 100,000Rad/Sec2 |
| Disk thickness | T | >=0.05mm | 0.178mm | >=0.6mm |

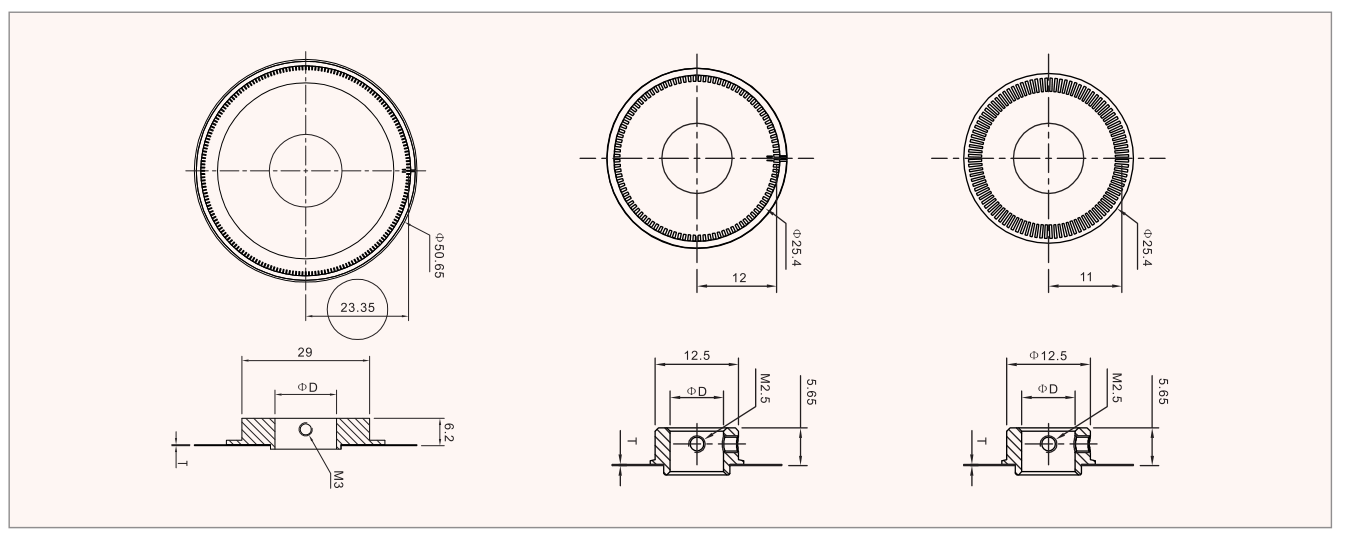

◆Dimension
