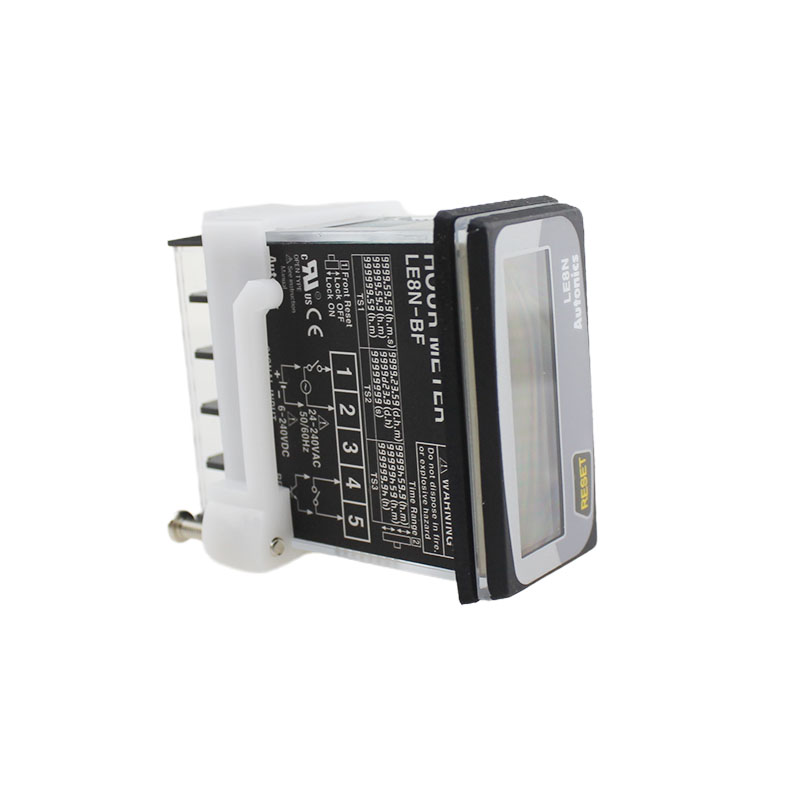

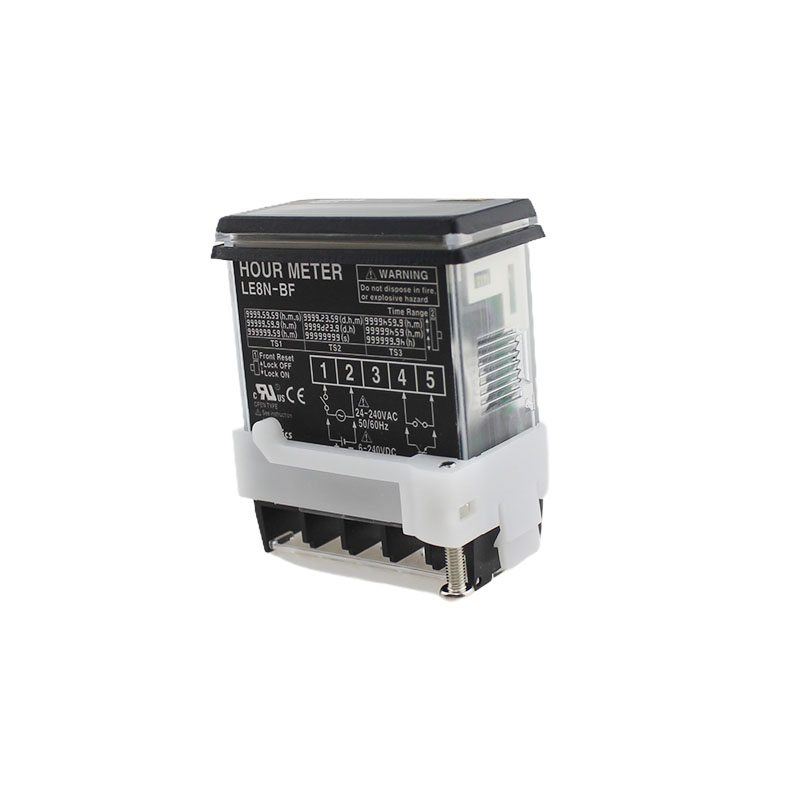

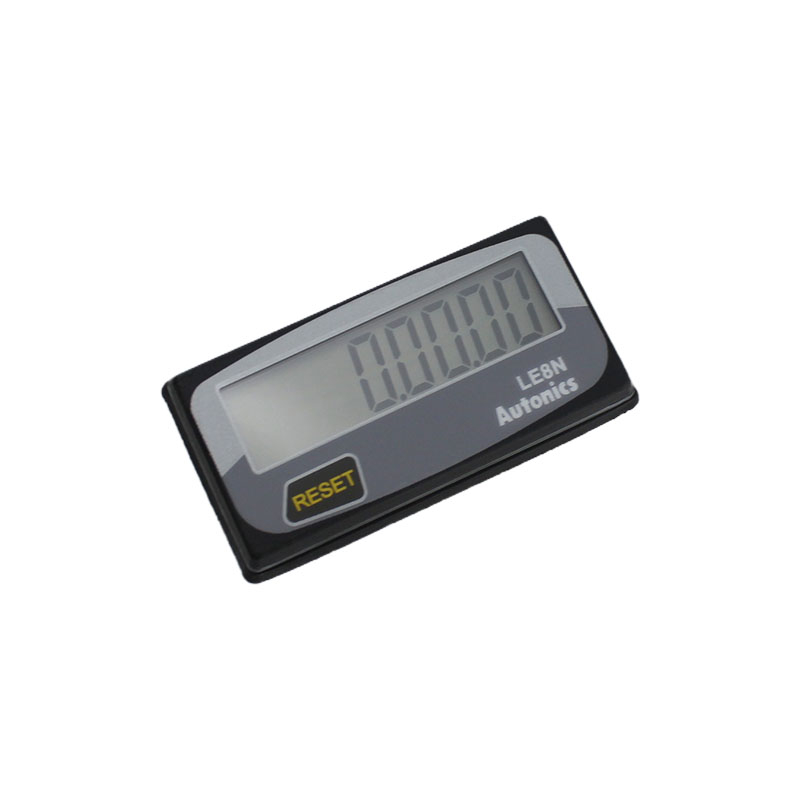

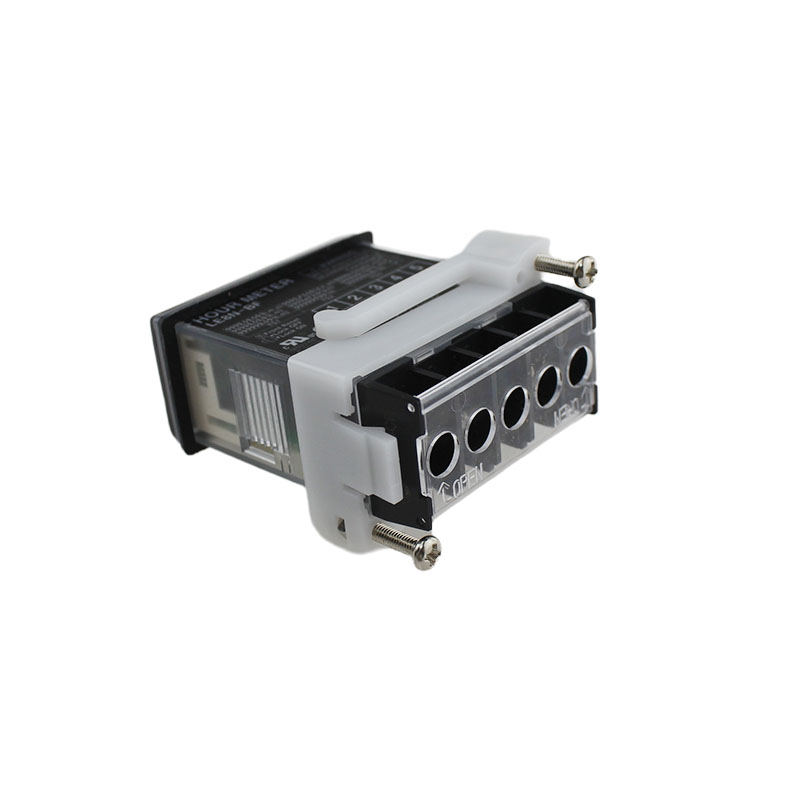

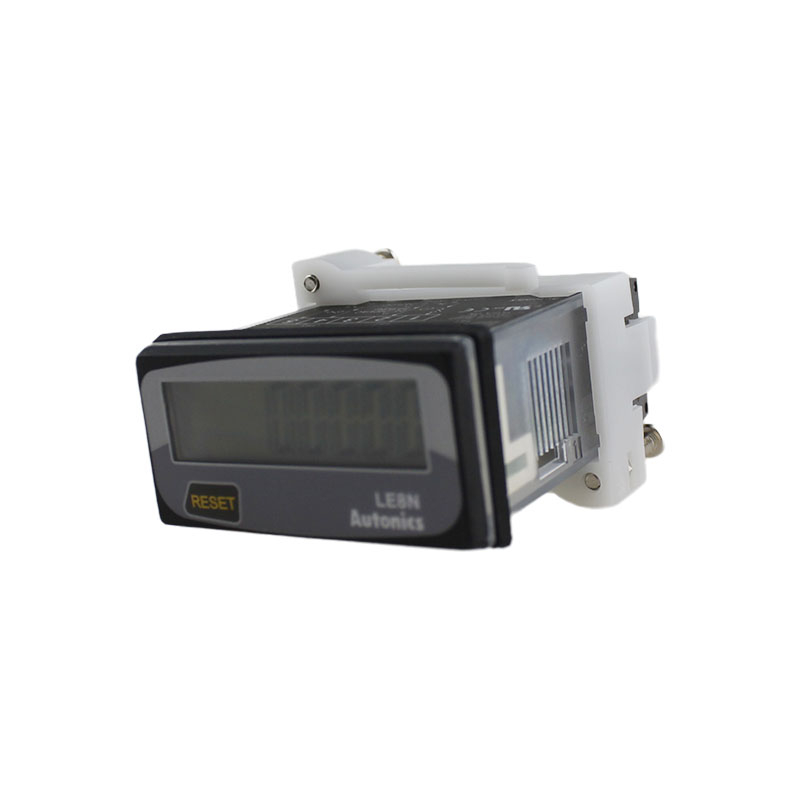

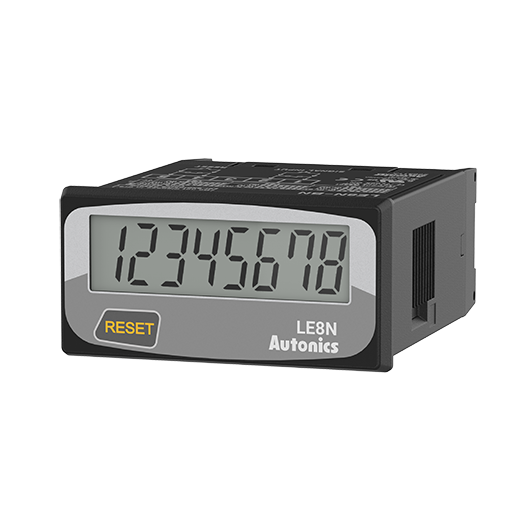

LE8N-BF
Autonics
| Display method | 8-digit 7-segment LCD |
|---|---|
| Operation method | Count up |
| Time operation | POWER ON START |
| Terminal | Terminal block |
| Power supply | Built-in battery(over 10 years) |
| Setting range | 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour |
| Input Method_Signal | Free voltage input |
| Input Method_Reset | No-voltage input(NPN) |
| Control output | Indicator |
| Protection structure | IP66(front panel) |
| Approval |   |
| Min. signal Width | SIGNAL, RESET input: Approx. 20ms |
| External set switch | SW1, SW2, SW3 |
| Accessories | Mounting bracket, Rubber waterproof ring |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 96g (approx. 50g) |
