LMF4-3005NA Proximity Switch 5mm NPN NO

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
Inquire Add to Basket

  • LMF4-3005NA

LMF4-3005NA Proximity Switch 5mm NPN NO

Product Description:

Main features of proximity switch sensor:

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dustproof, vibtation proof,waterproof and oil proof
With short-circuit protection and inverted connecting protection
Long service life



Application:

Model NO.

LMF4-3005NC

Working voltage

10-30VDC

Output form

NPN

Output state

NO

Outward appearance

Angular column type

Shell Material

ABS Resin

Protection grade

IP67

Detection distance

5mm

Detection type

Flush


LMF4 series proximity switch sensor:

Detection distance: 5mm

Flush

DC
10-
30
VDC



AC
90-
250
VAC

NPN

NO

LMF4-3005NA

NC

LMF4-3005NB

NO+NC

LMF4-3005NC

PNP

NO

LMF4-3005PA

NC

LMF4-3005PB

NO+NC

LMF4-3005PC

two wire
system

NO

LMF4-3005LA

NC

LMF4-3005LB

SCR
Control-
lable
silicon

NO

NC

NO+NC

Relay output

Flush

DC
10-
30
VDC



AC
90-
250
VAC

NPN

NO

NC

NO+NC

PNP

NO

NC

NO+NC

two wire
system

NO

NC

SCR
Control-lable
silicon

NO

NC

NO+NC

Relay output

Control output

DC

200mA

SCR/ Relay

300mA/1A

Output voltage dropDC/AC

NPN PNP<3V,two wre<3.9V
DC<3V,AC<10V

Consumption current

DC<15mA,AC<10mA

Standard detected object

20X20X1(A3 iron)

Repeated precision

0.03

DC/AC

300Hz

Working environment temperature

-25ºC~+75ºC

Insulation resistance

50MΩ

Shell material

ABS Resin

Protection grade

IP67

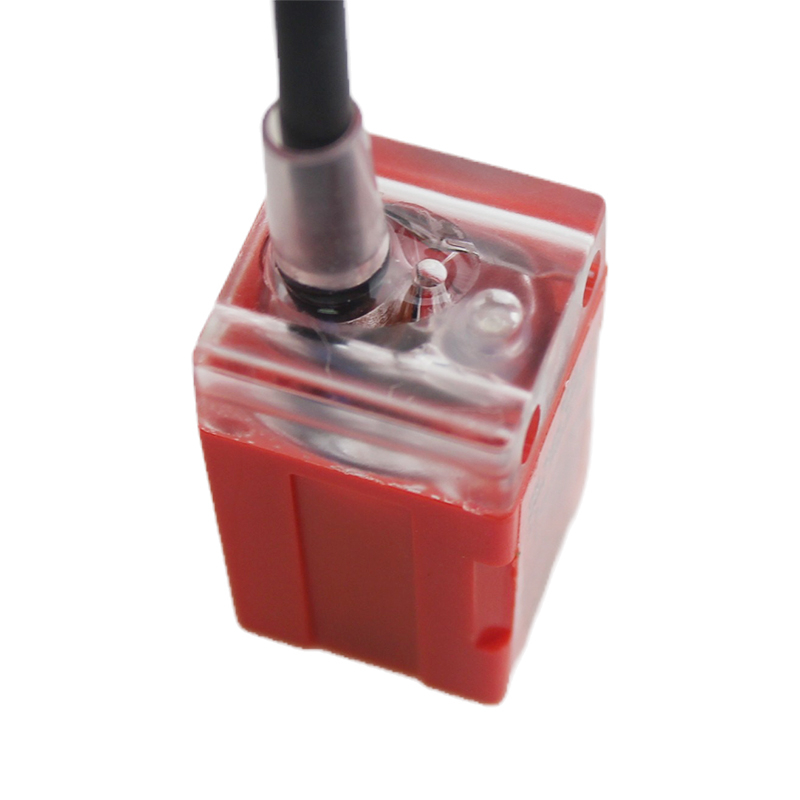

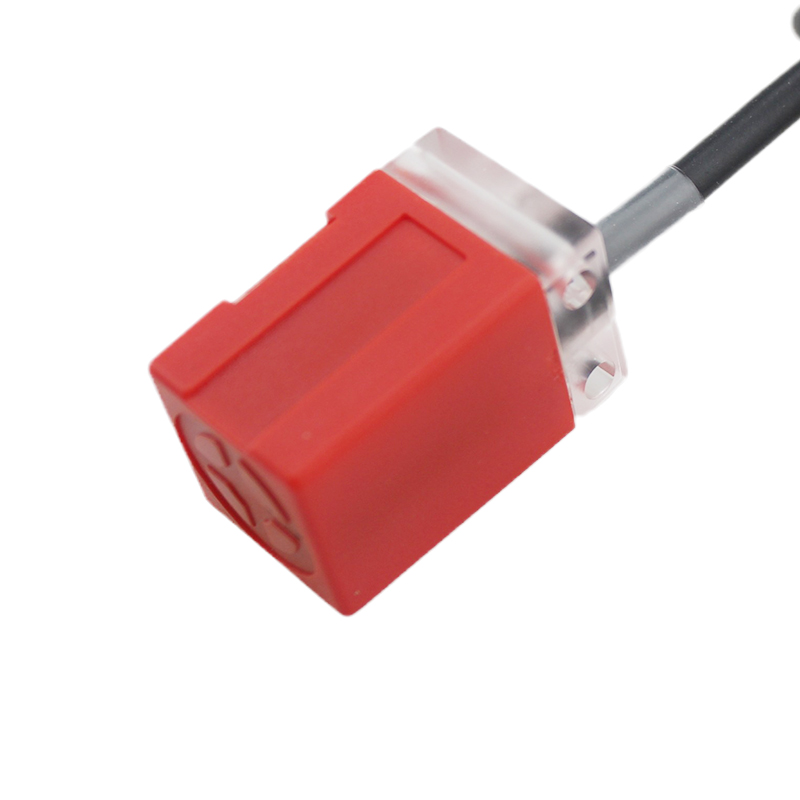

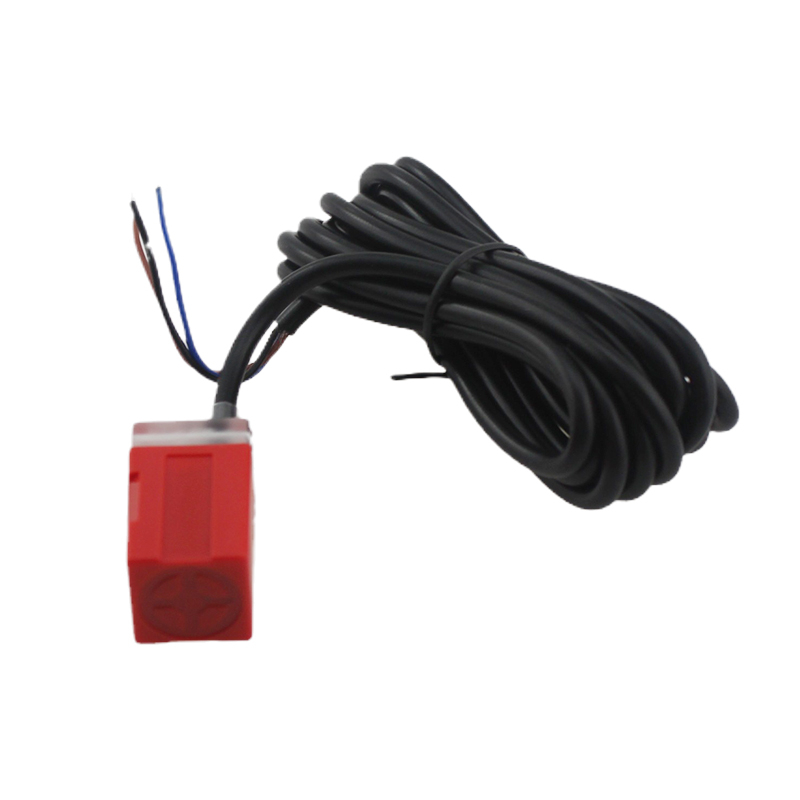

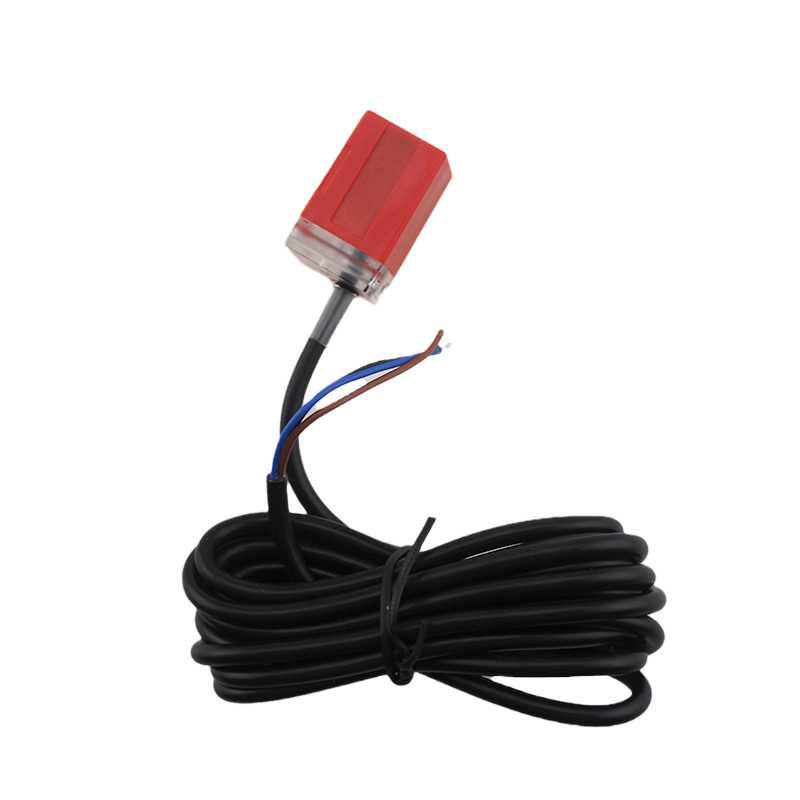

Product Pictures:

LMF4-3005NA (10)LMF4-3005NA (12)

FAQ:

Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
   2).We make the PI for you.
   3).After you confirm the PI, we arrange the order for you after receiving your payment.
   4).After the goods finished, we send the goods out to you and tell you the tracking number.
   5).We will track your goods until you receive the goods.
Q:  What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your  kindly inquiry !  ^!^
