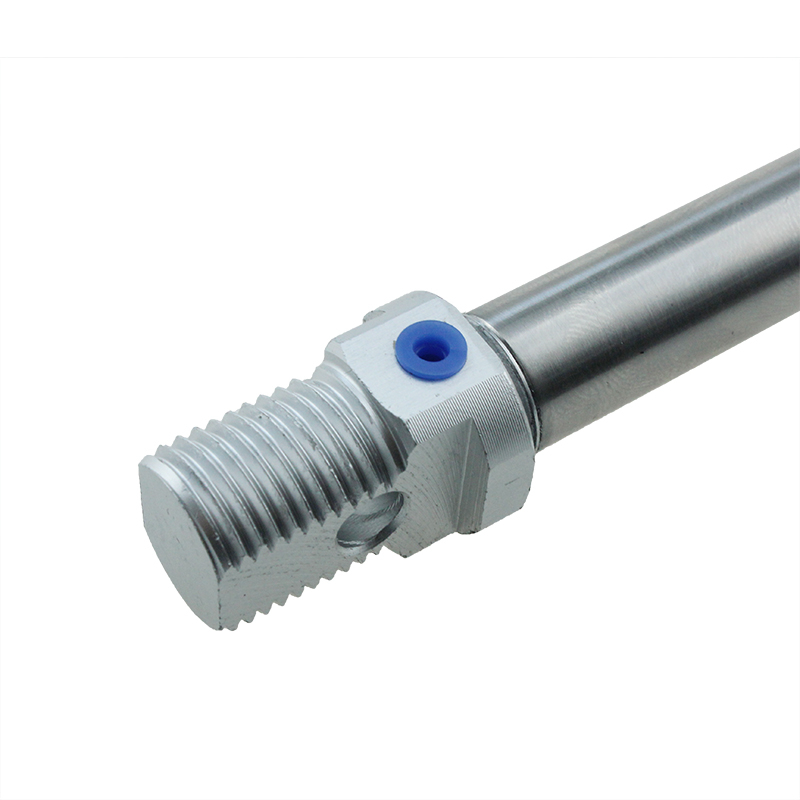

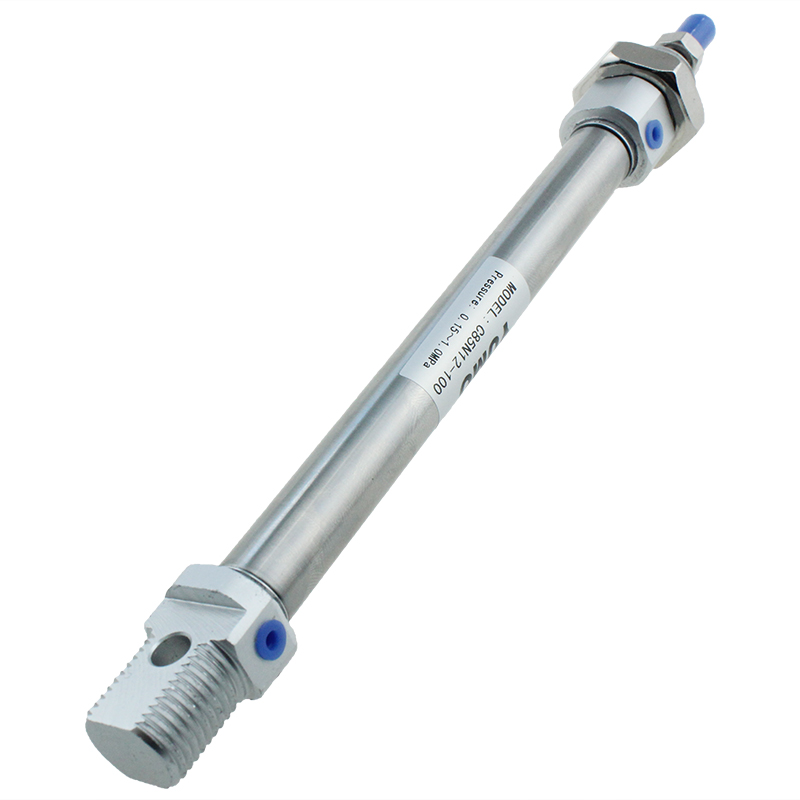

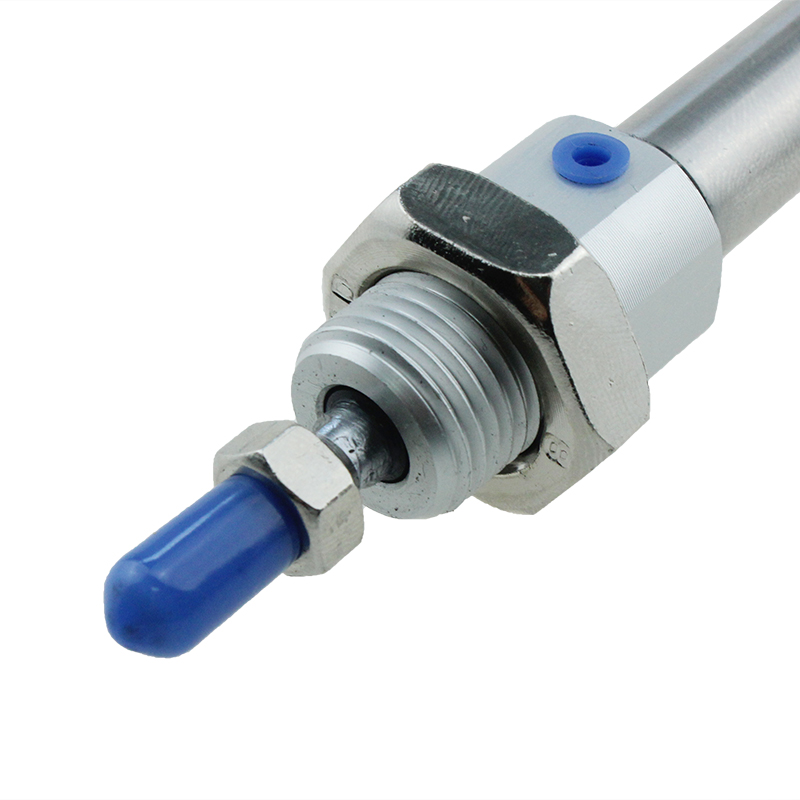

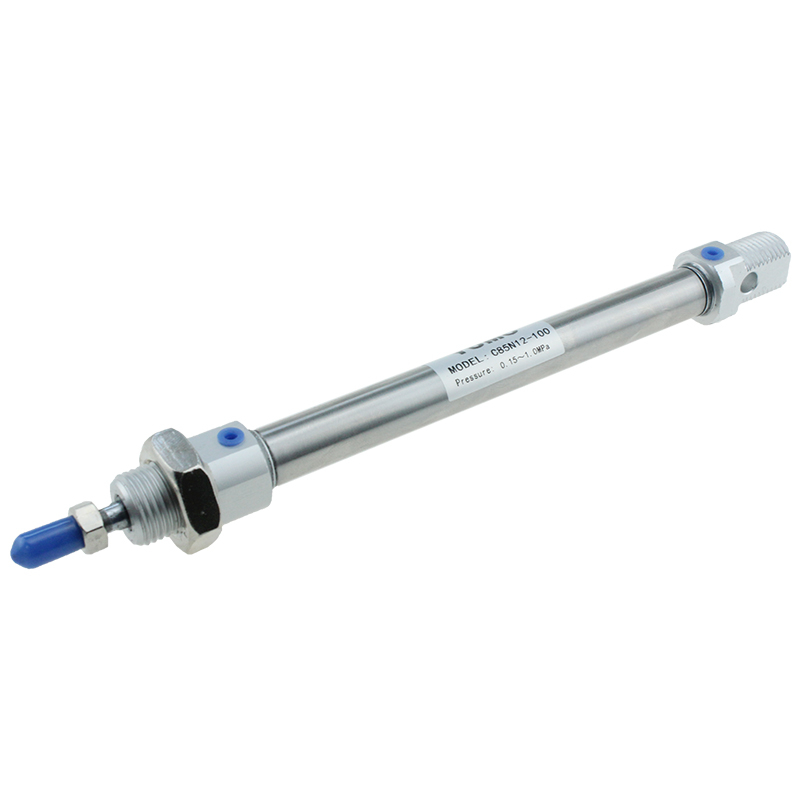

C85N12-100
Double-acting cylinder is a cylindrical metal part that guides the piston to perform linear reciprocating motion in the cylinder. Air in the engine cylinder converts heat energy into mechanical energy through expansion; The gas is compressed by the piston in the compressor cylinder to increase the pressure.
Specifications
| Bore size (mm) | 12 | |
| Piston rod dia. (mm) | 6 | |
| Piston rod thread | M6 x 1 | |
| Port size | M5 x 0.8 | |
| Action | Double acting, Single/Double rod | |
| Fluid | Air | |
| Proof pressure | 1.5 MPa | |
| Max. operating pressure | 1.0 MPa | |
| Min. operating pressure | 0.08 MPa | |
| Ambient and fluid temperature | -20 to 80°C | |
| Cushion | Rubber bumper (Non-rotating: Rubber bumper only), Air cushion | |
| Lubrication | Not required. Use turbine oil Class 1 ISO VG32, if lubricated. | |
| Piston speed | 50 to 1500 mm/s | |
Allowable kinetic energy | Rubber bumper | 0.04 J |
| Air cushion | 0.19 J | |
| Non-rotating accuracy | ±1° | |
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
