LAY5-BW36
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Work environment
Surrounding temperature:-25℃~+55℃;
Air relative humidity:≤85%.
It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
Altitude:≤2000m
Main technical parameter | |
| Rated insulation voltage | AC 600V (50Hz/60Hz) |
| Conventional heating current | 10A |
| Insulation resistance | ≥50MΩ |
| Contact resistance | ≤25MinΩ |
| Mechanical life | 100 ×104 (Pustbutton) |
| Electrical life | 500 ×104 (Pustbutton) |
| Description | Color | Type |
| Pilot light head with shorter transparent protecting cover | Green | LAY5-BW13 |
| Red | LAY5-BW14 | |
| Yellow | LAY5-BW15 | |
| Blue | LAY5-BW16 | |
| Pilot light head with higher transparent protecting cover | Green | LAY5-BW33 |
| Red | LAY5-BW34 | |
| Yellow | LAY5-BW35 | |

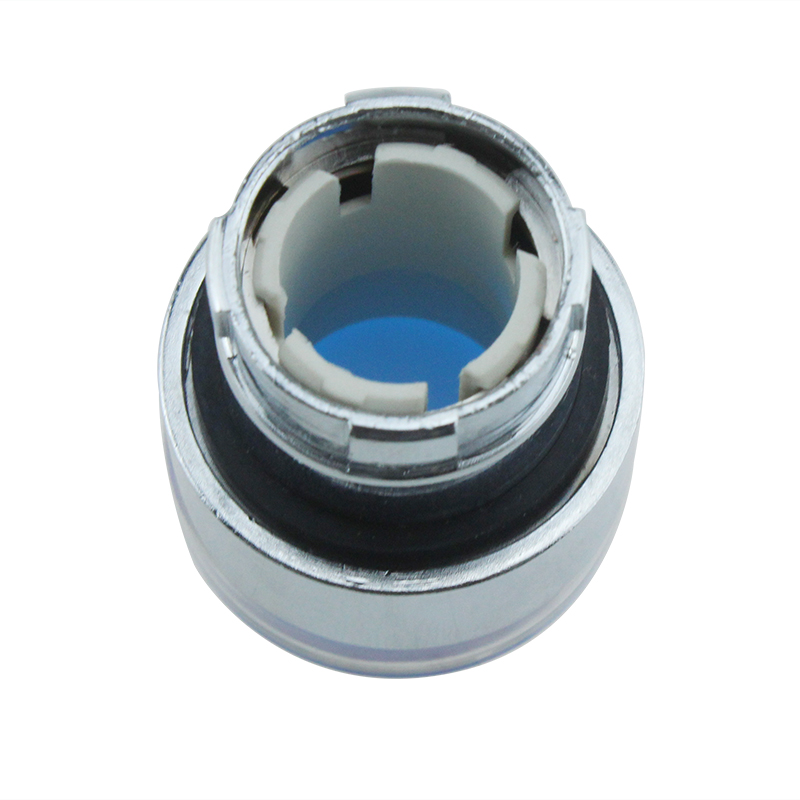

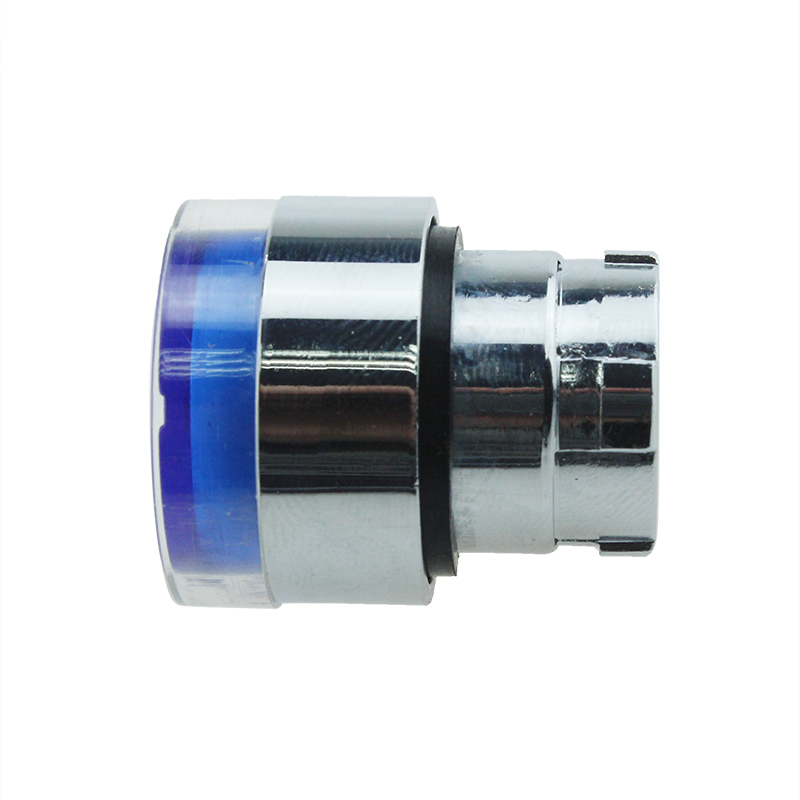

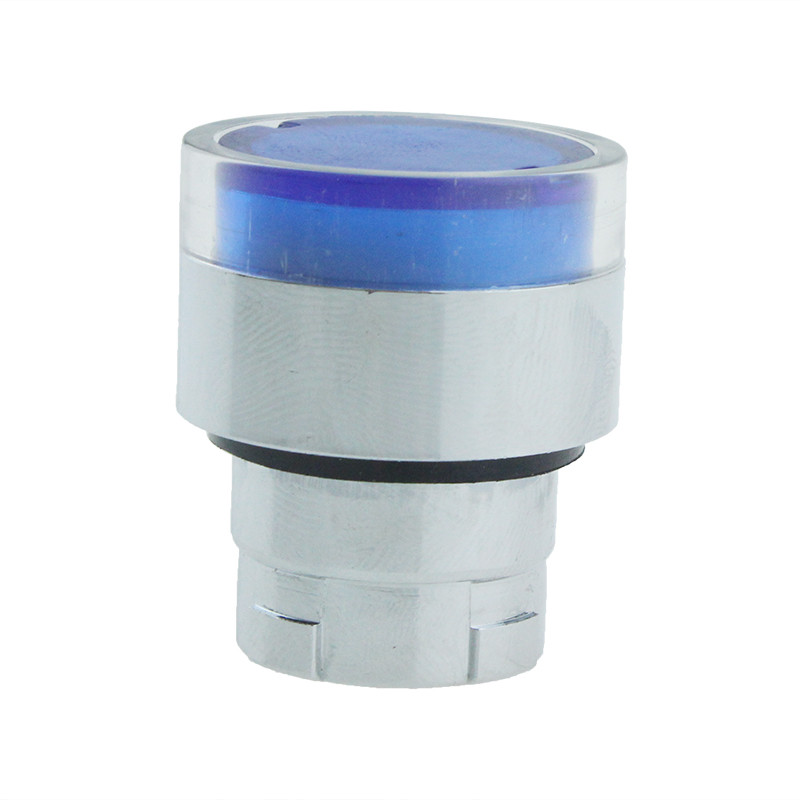

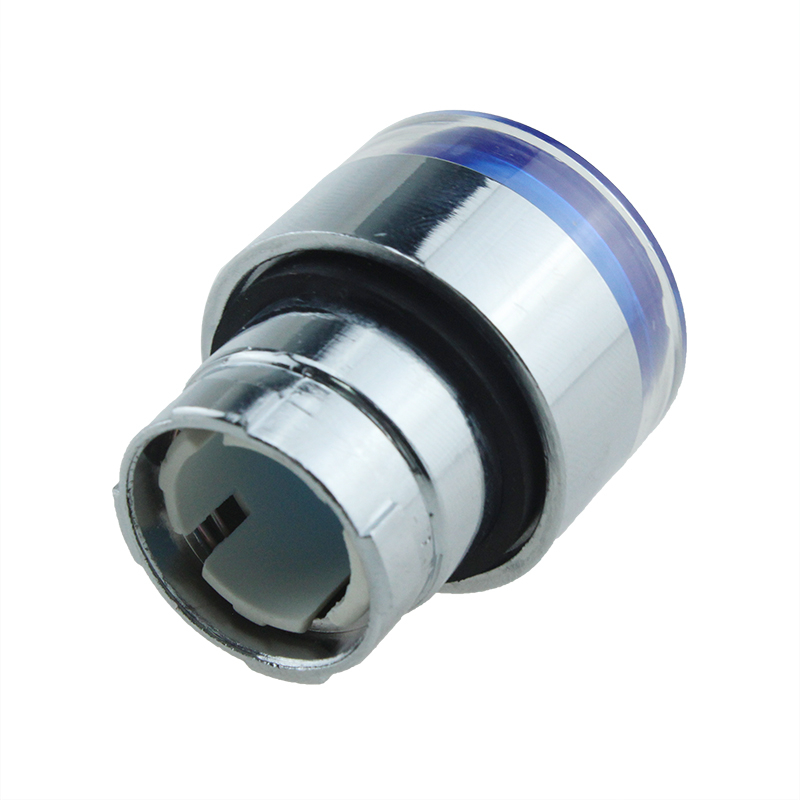

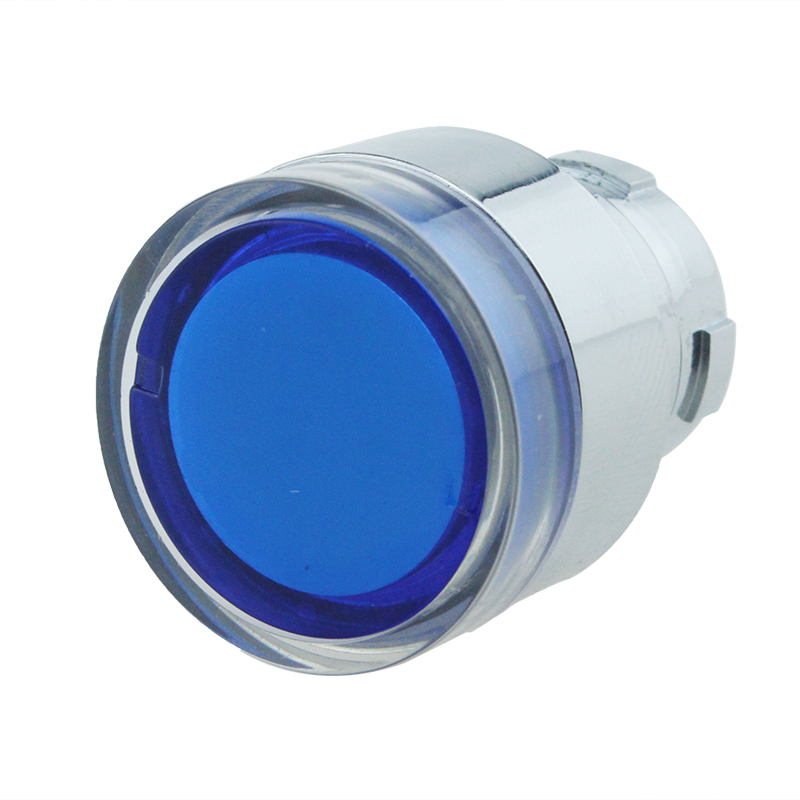

| Blue | LAY5-BW36 |
