G14 Infrared ray Photoelectric Switch Sensor from China manufacturer

Model:
G14

Product Description

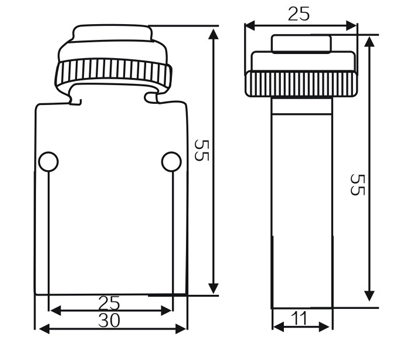

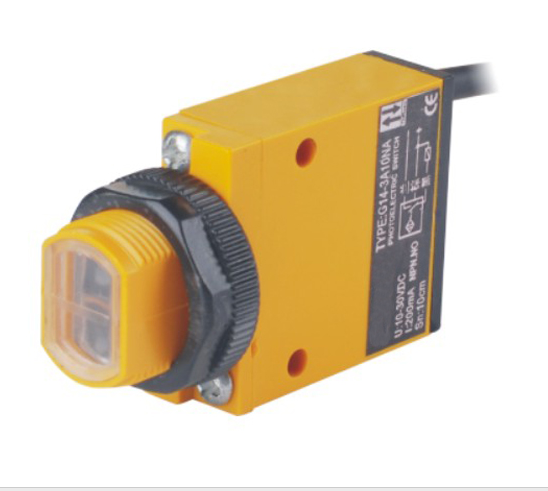

G14 Detection 10cm Diffusse reflection square photoelectric switch

Technique parameter:

1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet

Diffuse type	Detection distance			10cm
	10-30VDC	NPN	NO	G14-3A10NA
			NC	G14-3A10NB
			NO+NC	G14-3A10NC
		PNP	NO	G14-3A10PA
	90-250VAC		NC	G14-3A10PB
			NO+NC	G14-3A10PC
Retroreflective type	Detection distance			1m
	10-30VDC	NPN	NO	G14-3B1NA
			NC	G14-3B1NB
			NO+NC	G14-3B1NC
		PNP	NO	G14-3B1PA
	90-250VAC		NC	G14-3B1PB
			NO+NC	G14-3B1PC
Through beam	Detection distance			3m
	10-30VDC	NPN	NO	G14-3C3NA
			NC	G14-3C3NB
			NO+NC	G14-3C3NC
		PNP	NO	G14-3C3PA
	90-250VAC		NC	G14-3C3PB
			NO+NC	G14-3C3PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA
DC/AC Response time				Dc<2ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54
