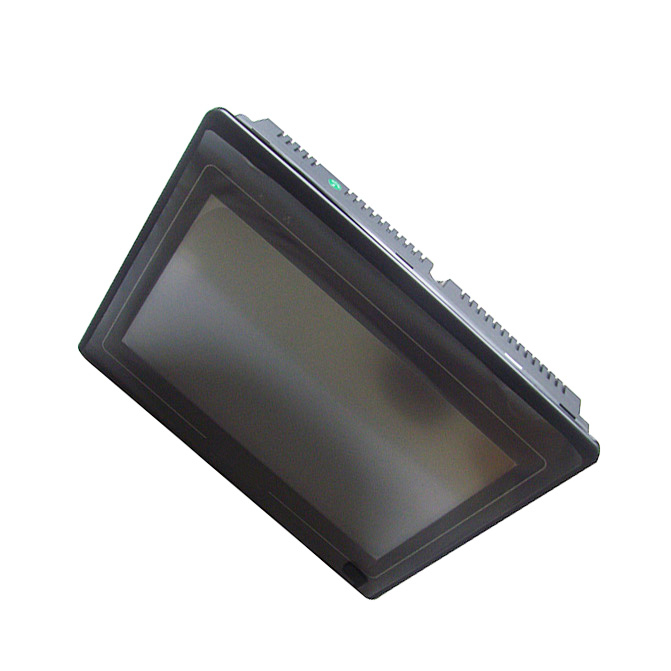

MT6100IV2 10 inch Human Machine Interface touch screen HMI

10", 65536color, TFT, 800x480, 300cd/m2, 300:1, LED, CPU 400MHZ, 64MB-DRAM, 128MBFlash 2 USB PORT
Availability:
  • MT6100IV2

HMI (Human Machine Interface) touch screen,plc operator interface


Specifications



 Display

 10" TFT Widescreen

 Resolution

800x480

 Brightness cd/m²

 300 cd/m2

 Contrast Ratio

300:1

 Back Light

 LED

 Life Time

30,000 hr

 Touch Panel Type

 4 wires resistive type

 Storage(MB)

128

 RAM(MB)

 64

 Processor

32 bit RISC CPU 400 MHz

 CF Card Slot

N/A

 SD Card Slot

Yes

 USB Host

USB 1.1 x 1

 USB Client

USB 2.0 x 1

 Ethernet Port

N/A

 PS2 Ports

N/A

 Mini PCI

N/A

 VGA Port

N/A

 COM Port

COM1 (RS232 / RS485 2W/4W),COM(RS232)
COM3(RS232/RS485 2W)

 Audio

Option

 RTC

Yes

 Input Power

24± 20% VDC

 Power Consumption

300mA@24VDC

 Panel Cutout (mm)

 259x201mm

 Weight(Kg)

Approx 1.6kg
