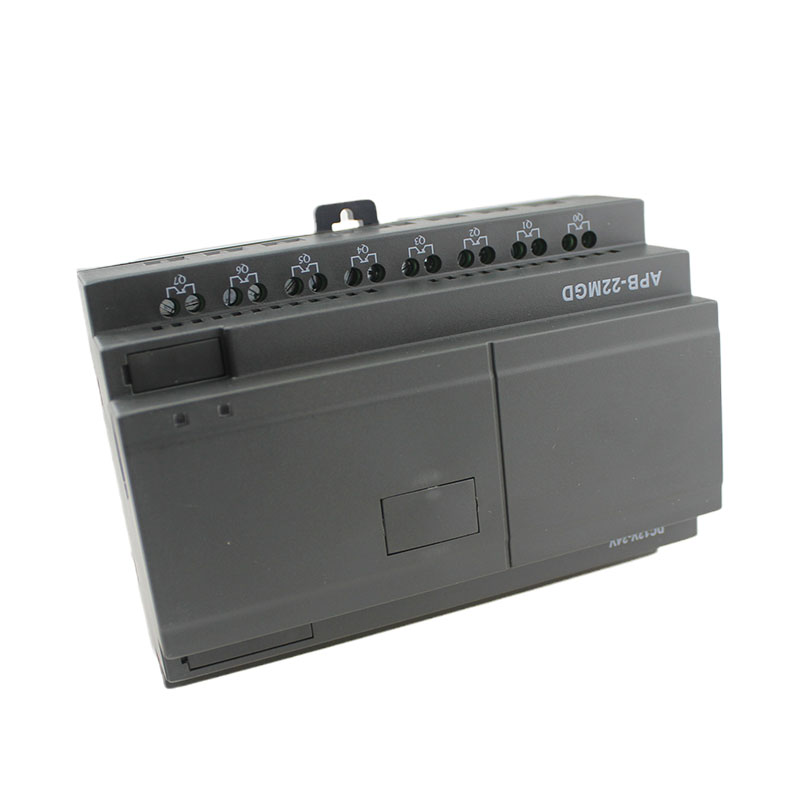

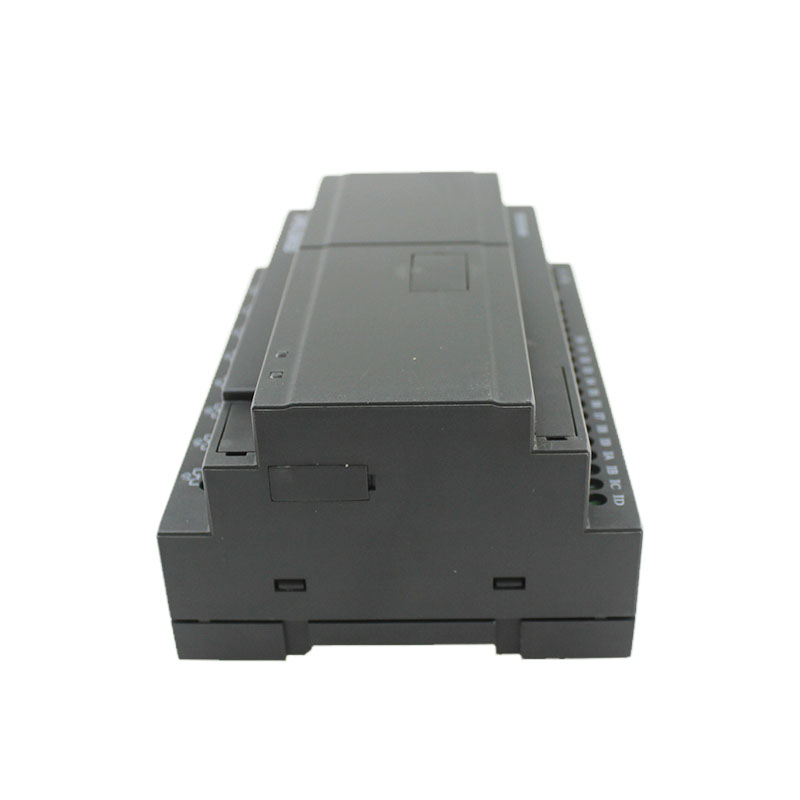

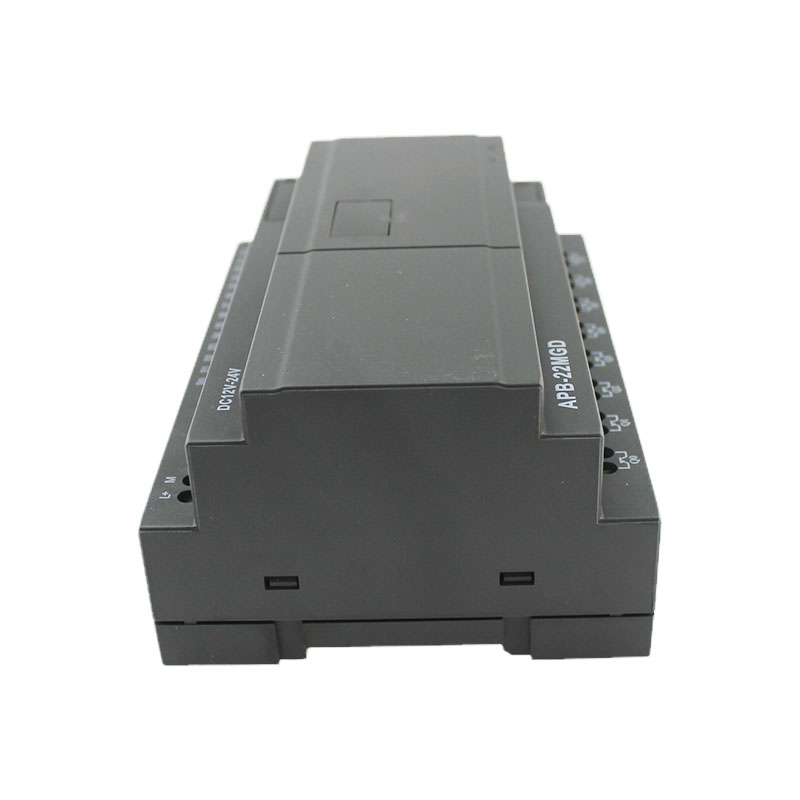

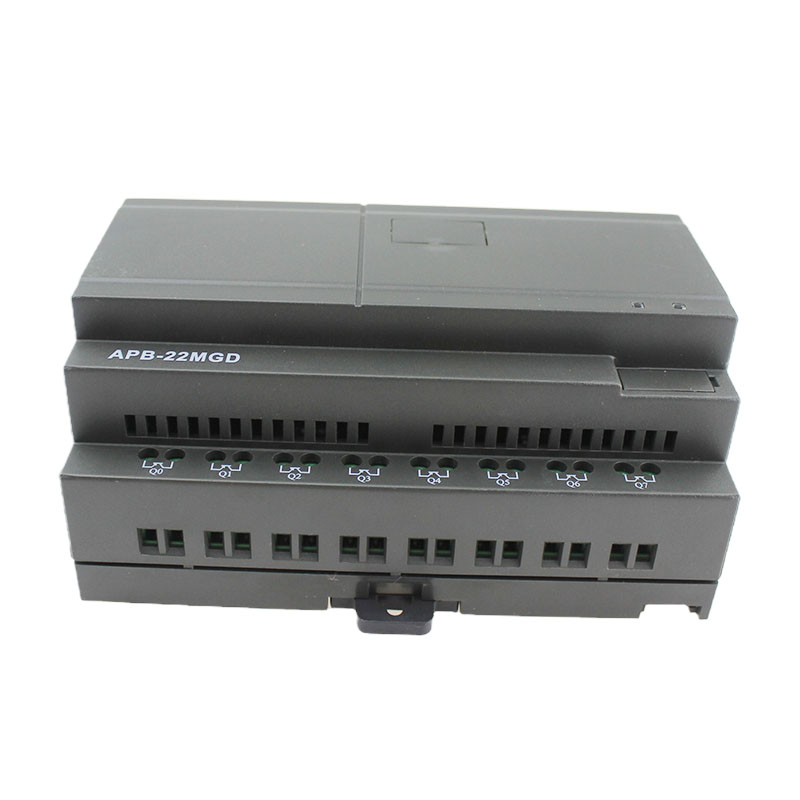

APB Series PLC Programmable Logic Controller APB-22MGD

 Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal max. configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;

Program memory capacity: 320 FBDs, EEPROM;

Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA;

High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;

MODBUS protocol, and can be connected to SH-300 (Text Panel);

New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.;
