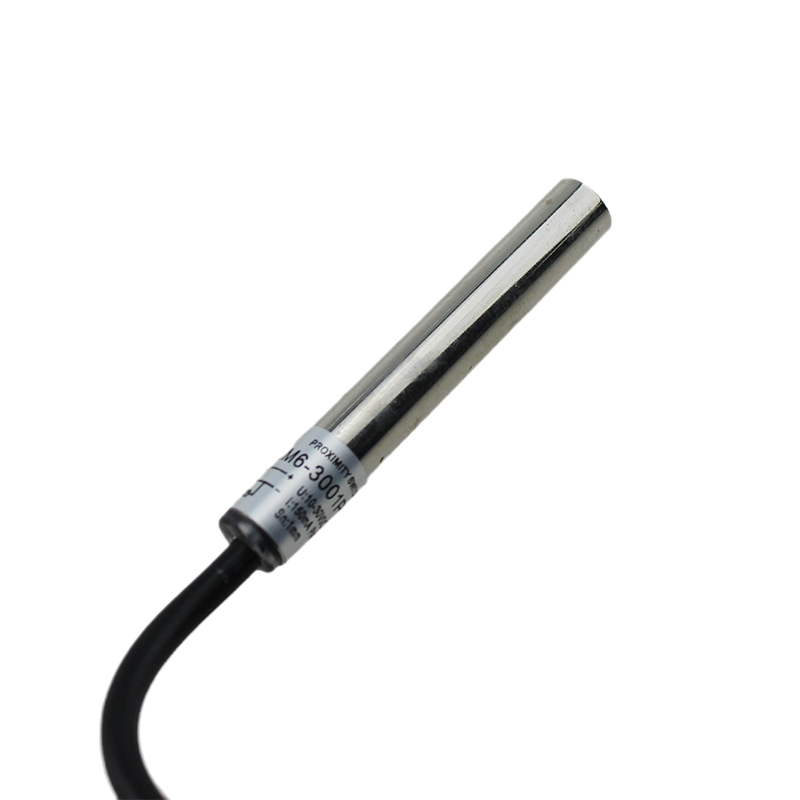

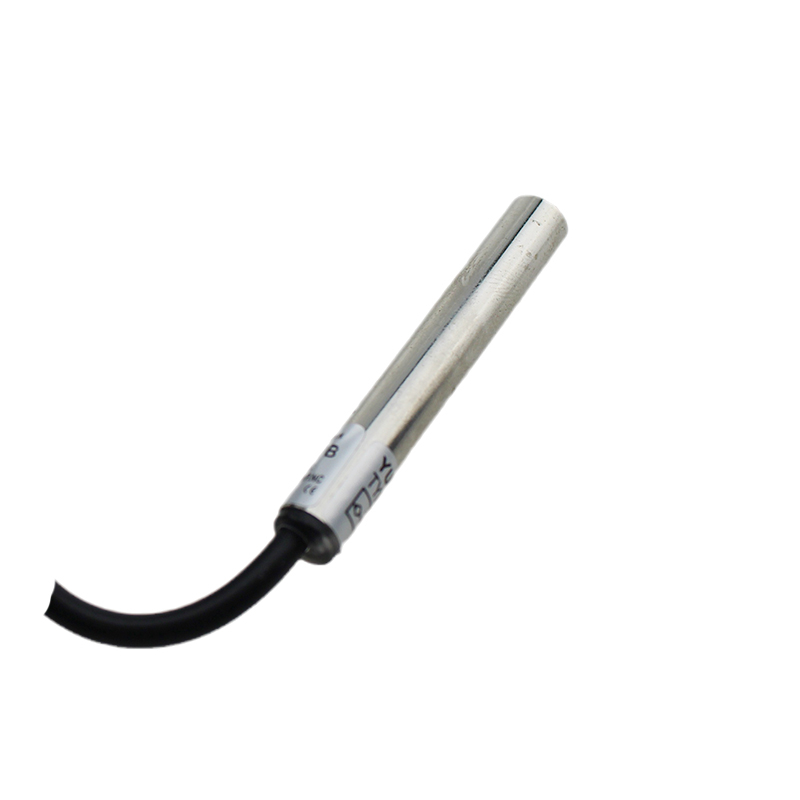

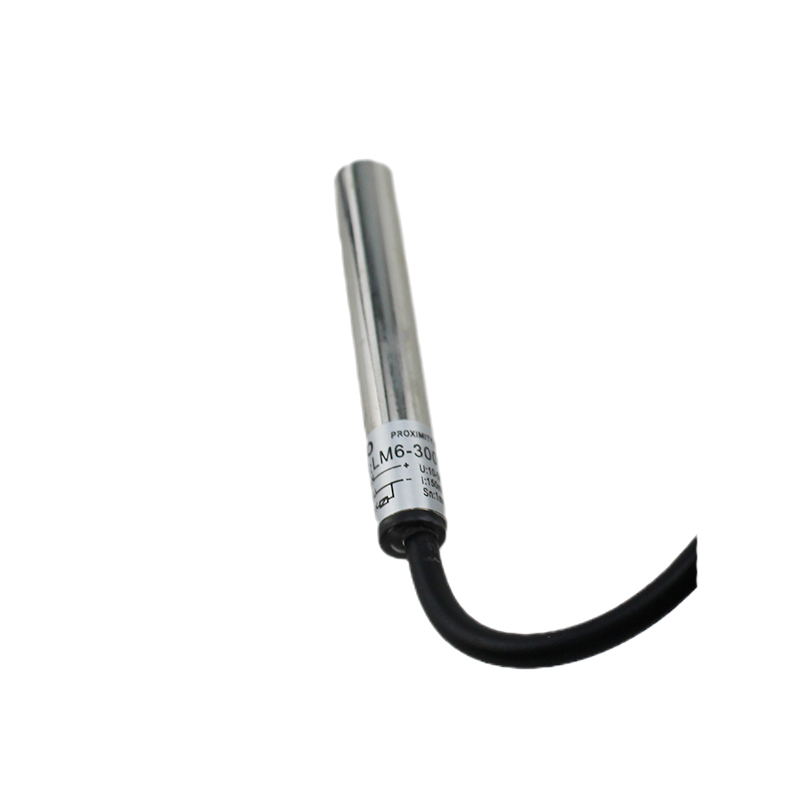

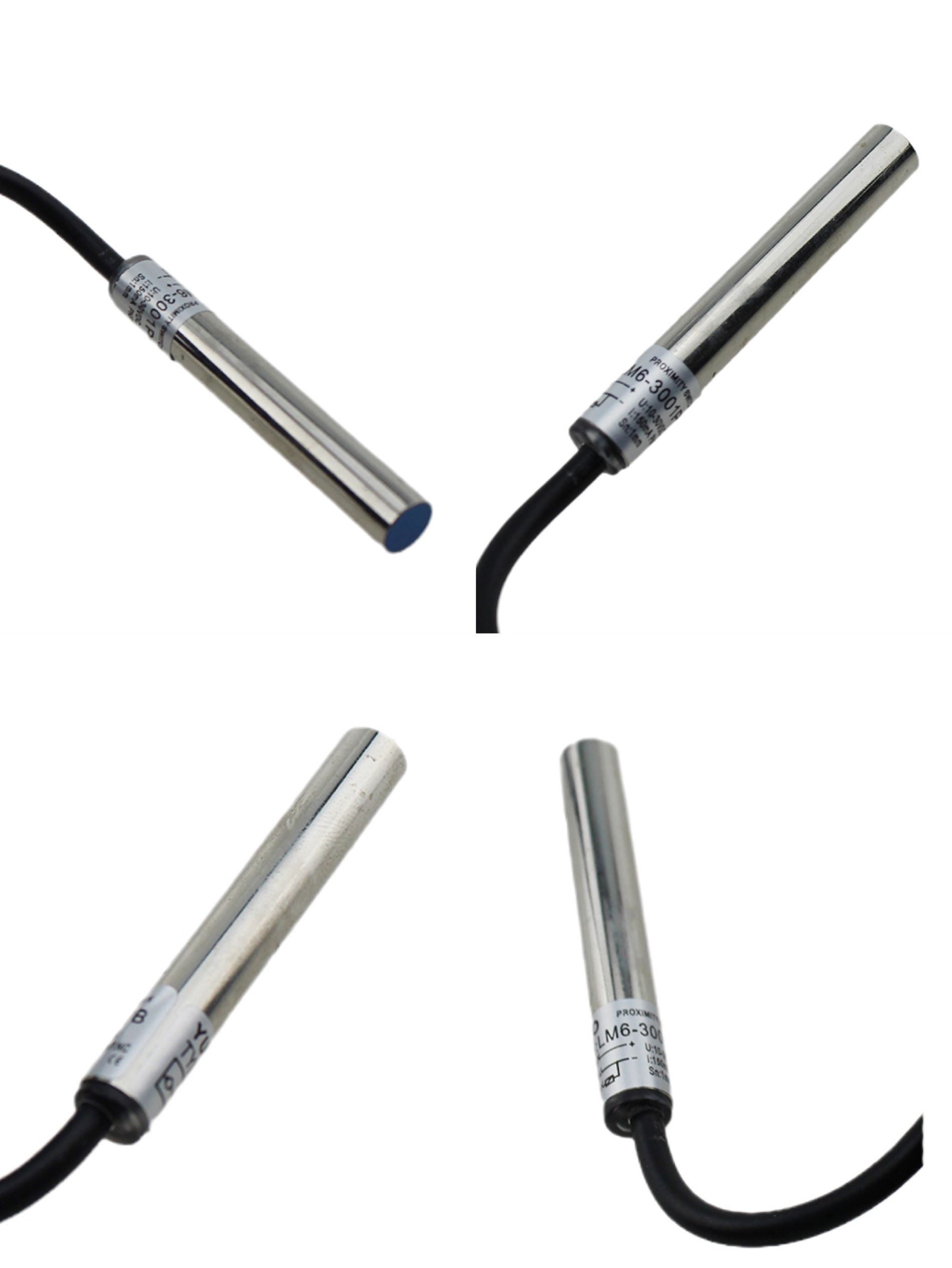

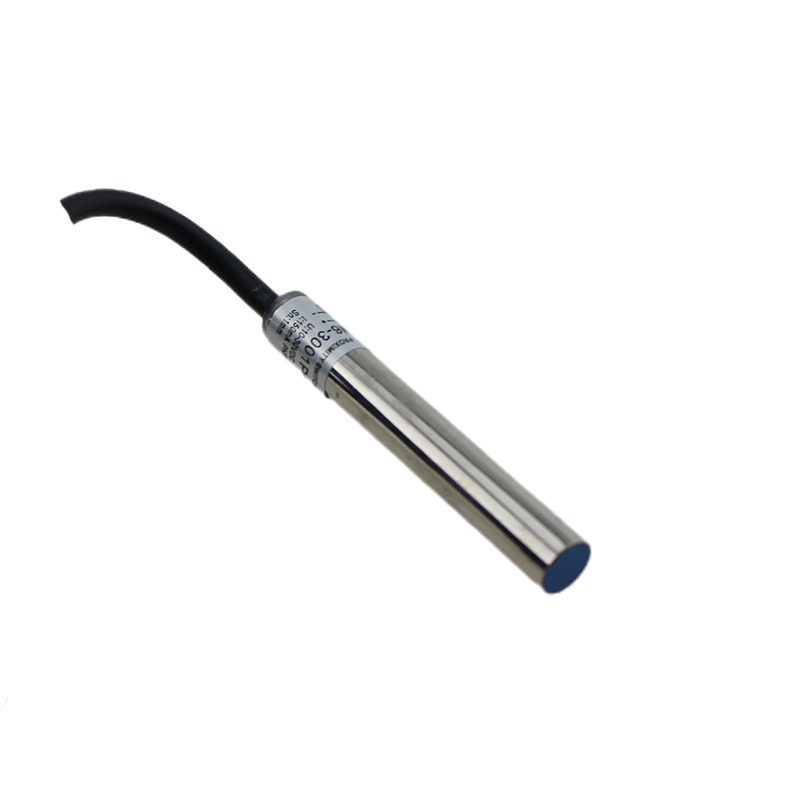

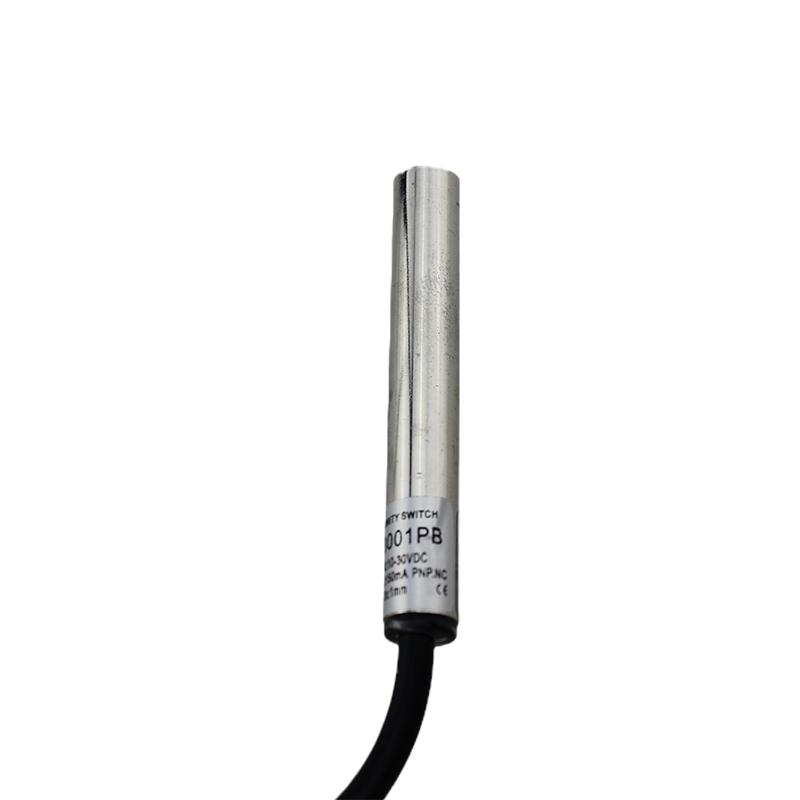

great quality 6-36VDC PNP LM6-3001PB sensor for industry

great quality 6-36VDC PNP LM6-3001PB sensor for industry

Inductive proximity sensor

Used in harsh working environment, it can withstand all kinds of cutting fluids and has the effects of waterproof and oil proof. Protection grade IP67. Installed in metal, flush or non flush, it can realize three wire npn/pnp, normally open / normally closed output; Two wire normally open / normally closed output, four wire npn/pnp one open one closed output, five wire relay output. There are various models, and the power supply voltage can be 6-36v/15-36 DC power supply; 380V, 20 ~ 250V, 90 ~ 250V AC power supply, 20 ~ 250V AC and DC power supply. Solid brass, nickel plated shell / plastic shell, inner shell sealed with process polymer, LED status red indicator.

Advantages of proximity switches

1.Compact volume

2.High precision of repeated location

3.Diversified exterior structures

4.Good performance of anti-interference

5.Many output forms

OVERALL DIMENSIONS
	DETECTION   DISTANCE                                1mm
Flush		NPN	NO	LM6-3001NA
	DC		NC	LM6-3001NB
	10-		NO+NC
	30	PNP	NO	LM6-3001PA
	VDC		NC	LM6-3001PB
			NO+NC
	AC	two wire
	90-	system	NC	LM6-3001LB
	250	SCR Control-lable silicon	NO	LM6-2001A
	VAC
			NC	LM6-2001B
			NO+NC
	DETECTION   DISTANCE                            1.5mm
Non-Flush		NPN	NO	LM6-3002NA
	DC		NC	LM6-3002NB
	10-		NO+NC
	30	PNP	NO	LM6-3002PA
	VDC		NC	LM6-3002PB
			NO+NC
		two wire   system	NO	LM6-3002LA
	AC
	90-		NC	LM6-3002LB
	250	SCR Control-lable silicon	NO	LM6-2002A
	VAC
			NC	LM6-2002B
			NO+NC
		Relay output
Control output		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				DC<3V、AC<10V
Consumption current				DC<15mA、AC<10mA
Standard detected object				8X8X1(A3 iron)
Repeated precision				0.01
DC/AC				500Hz
Working environment temperature				-25℃～+75℃
Insulation resistance				≥30MΩ
Shell material				Stainless   steel
Protection grade				IP67
