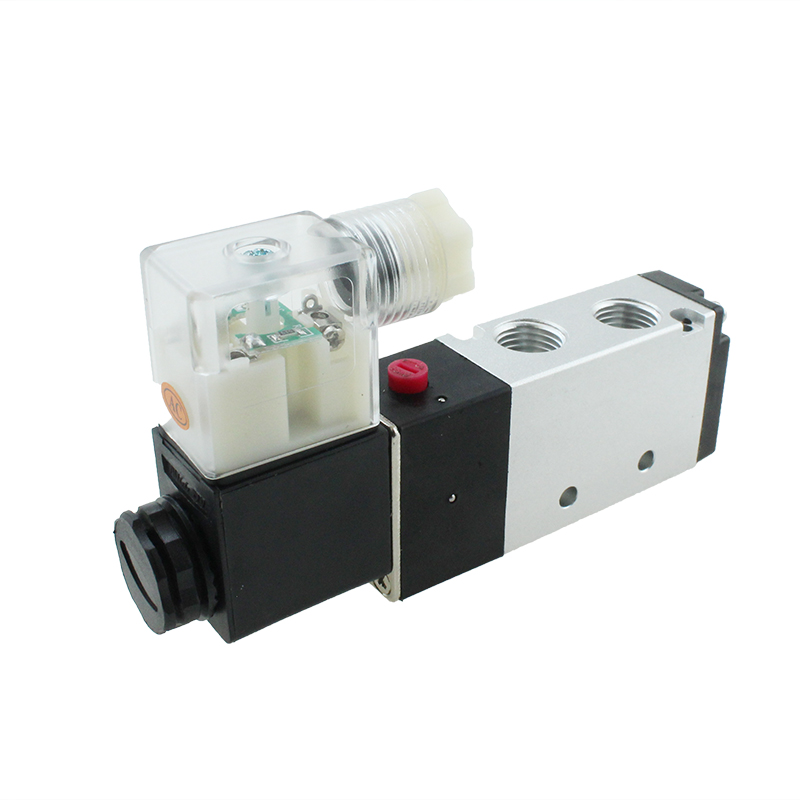

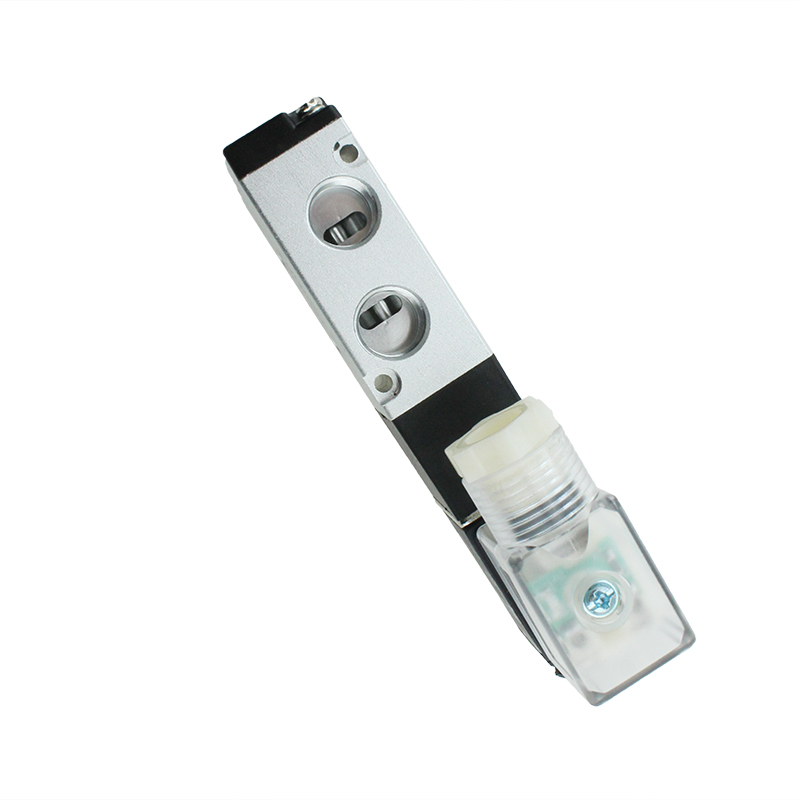

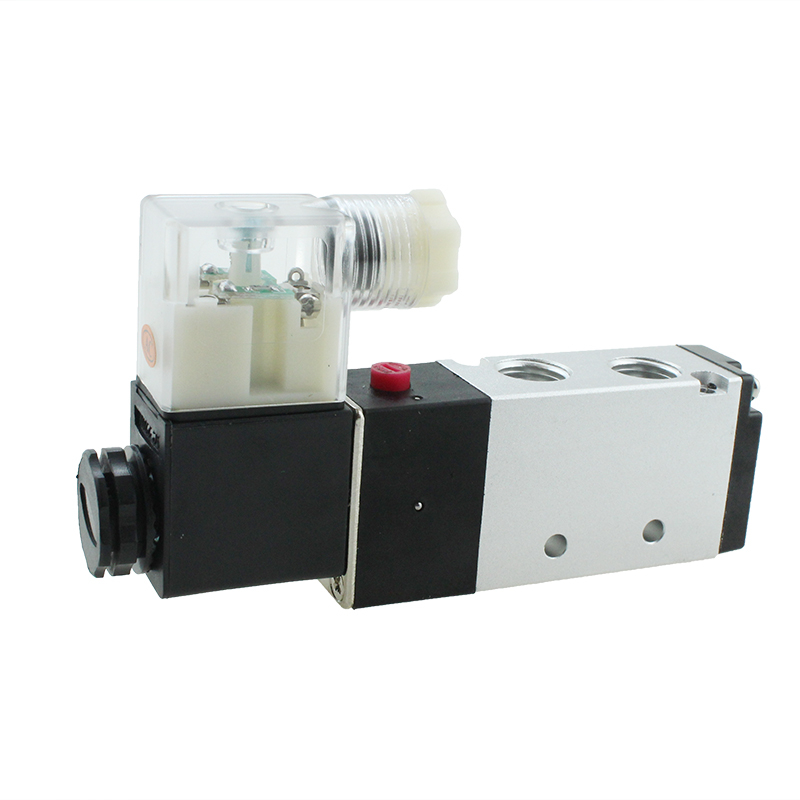

4V210-08 AC220V
Product feature
Pilot-oriented mode: optional for internal or external;
Structure in sliding column mode: good tightness and sensitive reaction;
Three position solenoid valves have three kinds of central function for your choice;
Double control solenoid valves have memory function;
Internal hole adopts special processing technology which has lttle attrition friction, low start pressure and long service life;
No need to add oil for lubrication;
It is available to form integrated valve group with the base to save installation space;
Affiliated manual devices are equipped to facilitate installation and debugging;
Several standard voltage grades are optional;
Specifi cations
| Model | 4V210-08 |
| Fluid | Air |
| Acting | Piloted |
| Port size | In=Out =1/4" Exhaust=1/8" |
| Orifice size | 16.0mm2(Cv=0.89) |
| Valve type | 5 port 2 position |
| Operating pressure | 0.15 ~ 0.8MPa |
| Max. proof pressure | 1.5MPa |
| Temperature | -20 ~ 70 ℃ |
| Material of body | Aluminum alloy |
| Lubrication | Not required |
| Highest action frequency | 5 cycle / second |

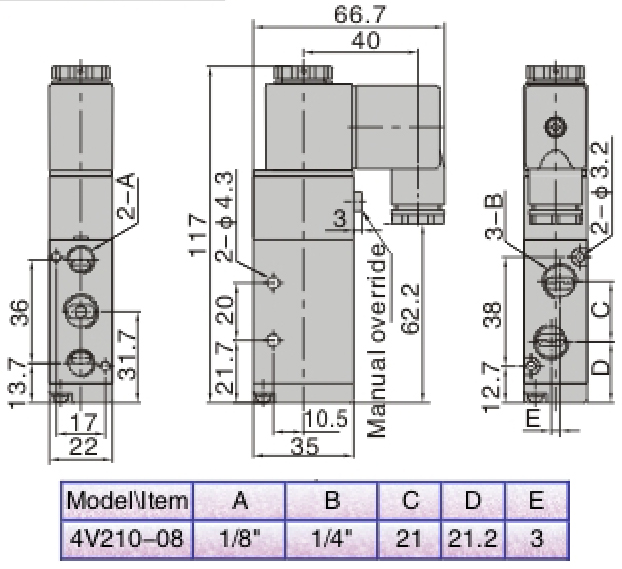

Dimensions
