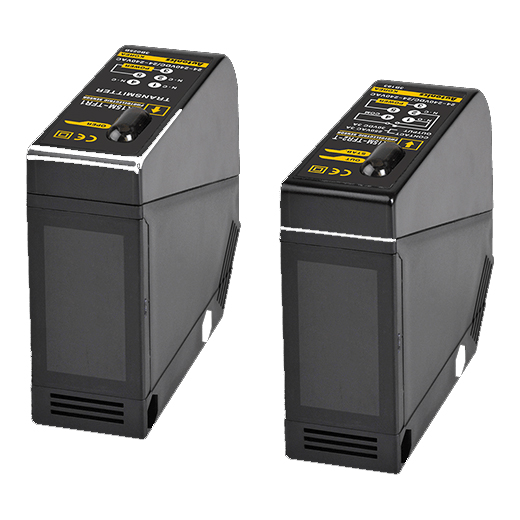

BX15M-TFR-T
Autonics

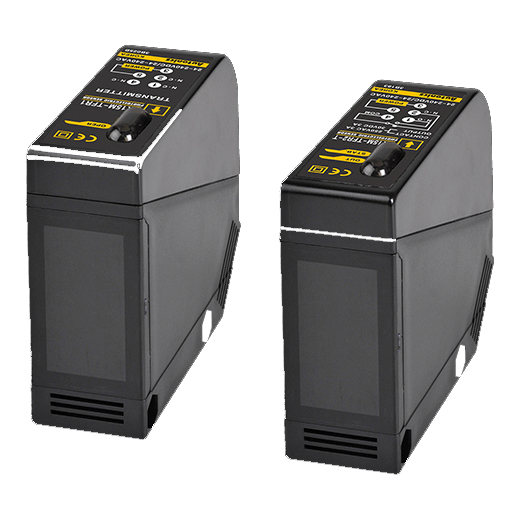

BX15M-TFR-T Autonics Sensor 15M Sensing Distance Light & Dark On 24-240VAC
Detection type: opposite type
Detection distance: 15m
Detection object: opaque object Min.Ø15mm
Light Source: Infrared LED(850nm)
Response time: Max.20ms
Power supply voltage: 24-240VAC~±10% 50/60Hz, 24-240VDC±10%(Ripple P-P: Max.10%)
Action mode: Light ON/Dark ON(switch setting)
Control output: Relay
| Detection type | opposite type |
|---|---|
| Detection distance | 15m |
| Detection object Opaque object | opaque object Min.Ø15mm |
| Light Source | Infrared LED(850nm) |
| Response time | Max.20ms |
| Power supply voltage | 24-240VAC~±10% 50/60Hz, 24-240VDC±10%(Ripple P-P: Max.10%) |
| Ambient temperature | -20~55 ° C |
| storage | -25~70 ° C |
| Material shell | lens cover: PC, testing part: acrylic, bracket: cold heading steel, bolt: SCM, nut: SCM |
| Protection level | IP66 |
| Weight | Approx. 226g |
