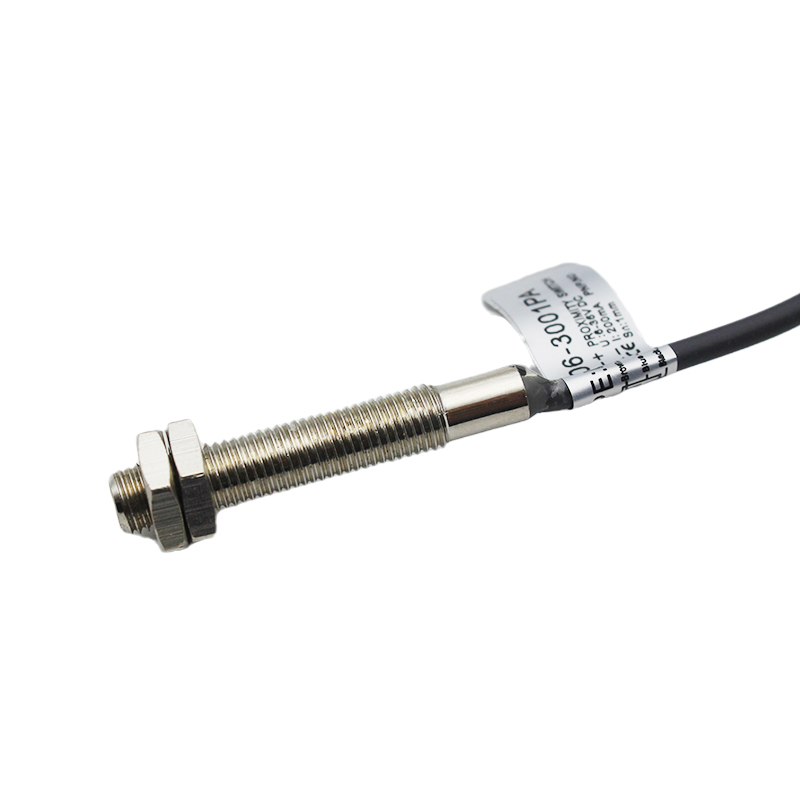

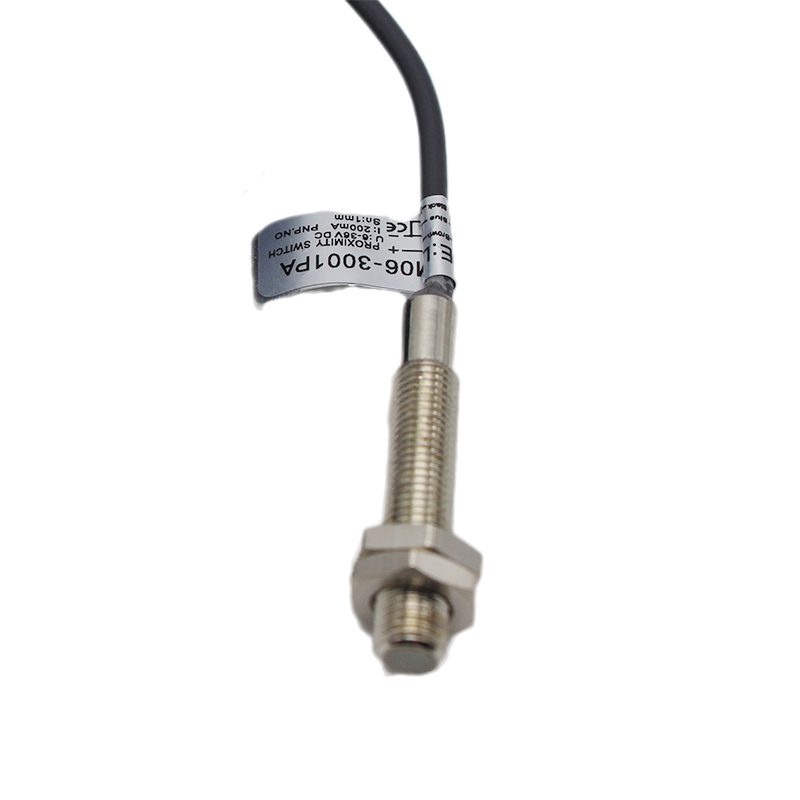

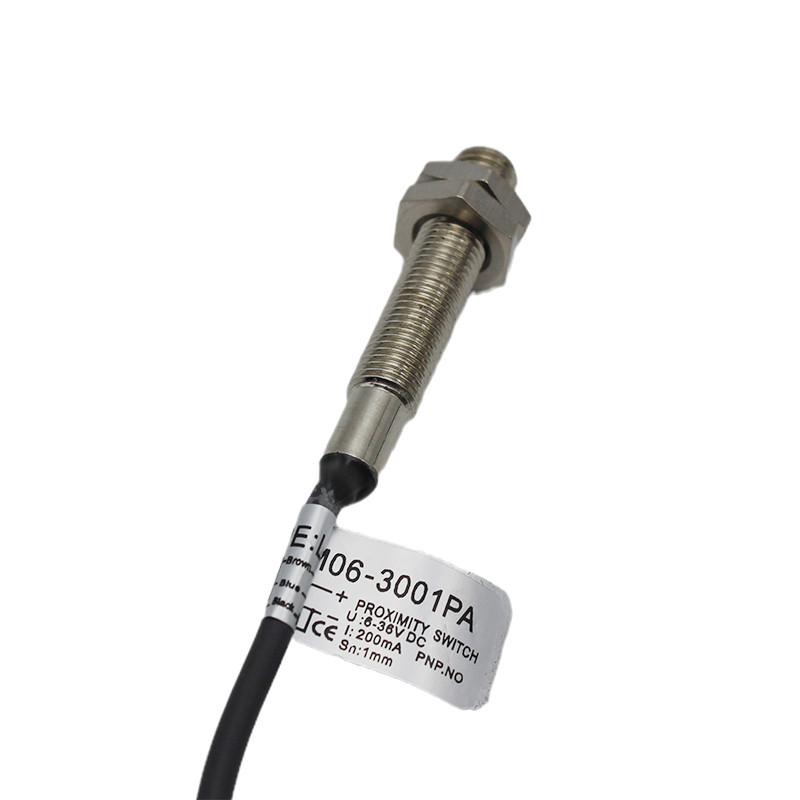

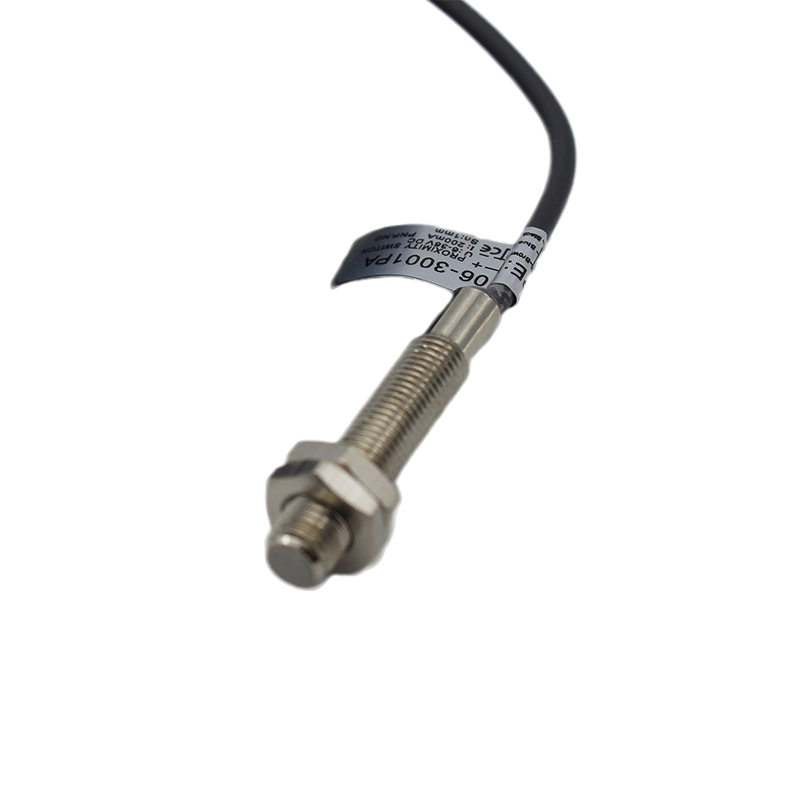

great quality proximity switch for LM06-3001PA

great quality proximity switch for LM06-3001PA

Inductive proximity sensor
Used in harsh working environment, it can withstand all kinds of cutting fluids and has the effects of waterproof and oil proof. Protection grade IP67. Installed in metal, flush or non flush, it can realize three wire npn/pnp, normally open / normally closed output; Two wire normally open / normally closed output, four wire npn/pnp one open one closed output, five wire relay output. There are various models, and the power supply voltage can be 6-36v/15-36 DC power supply; 380V, 20 ~ 250V, 90 ~ 250V AC power supply, 20 ~ 250V AC and DC power supply. Solid brass, nickel plated shell / plastic shell, inner shell sealed with process polymer, LED status red indicator.

Advantages of proximity switches

1.Compact volume

2.High precision of repeated location

3.Diversified exterior structures

4.Good performance of anti-interference

5.Many output forms

OVERALL DIMENSIONS
	DETECTION DISTANCE                              1mm
Flush	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO	LM06-3001NA
			NC
			NO+NC
		PNP	NO	LM06-3001PA
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE                          1.5mm
Non-Flush	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
Control output		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				DC<3V、AC<10V
Consumption current				DC<15mA、AC<10mA
Standard detected object				8X8X1(A3 iron)
Repeated precision				0.01
DC/AC				500Hz
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
