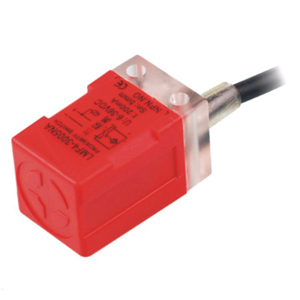

LMF4 Angular Column inductive proximity switch

LMF21 Angular Column NPN Type 2-Wire Inductive Proximity Sensor Switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Technical Parameter

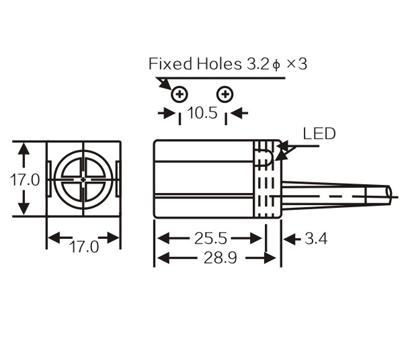

OVERALL DIMENSIONS
	DETECTION DISTANCE 5mm
NON-Flush	DC10-30 VDC AC90-250 VAC	NPN	NO	LMF4-3005NA
			NC	LMF4-3005NB
			NO+NC	LMF4-3005NC
		PNP	NO	LMF4-3005PA
			NC	LMF4-3005PB
			NO+NC	LMF4-3005PC
		two wire system	NO	LMF4-3005LA
			NC	LMF4-3005LB
		SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR Relay
Output voltagc dropDC/AC				DC<3V、AC<10V
Consumption current				DC<15mA、AC<10mA
Standard detected object				20X20X1(A3iron)
Repeated precision				0.03
DC/AC				300Hz
Working environment temperature				-25℃～+75℃
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad				PS05-N、PS05-P
