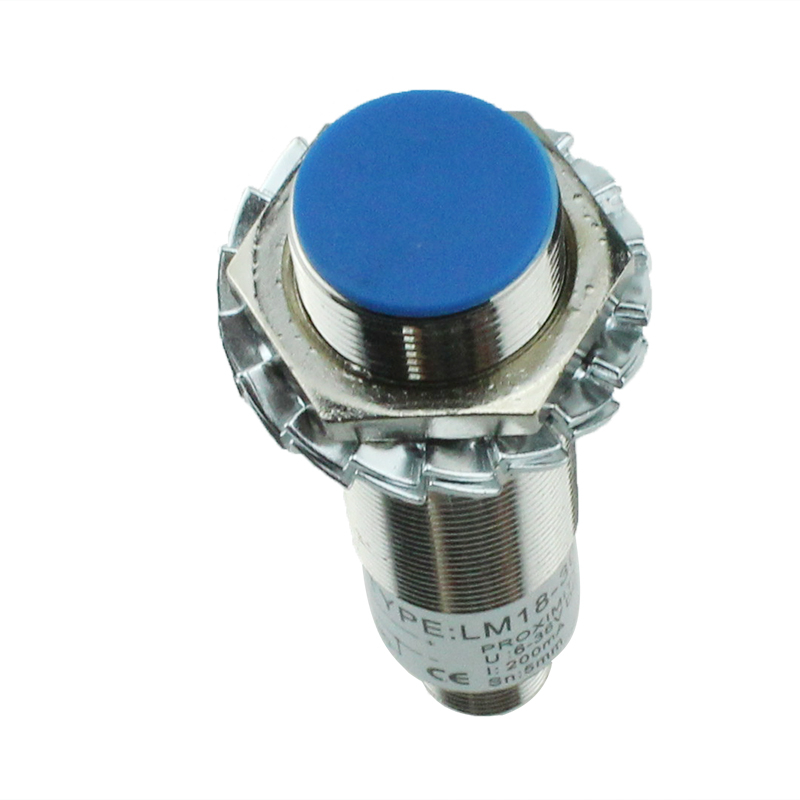

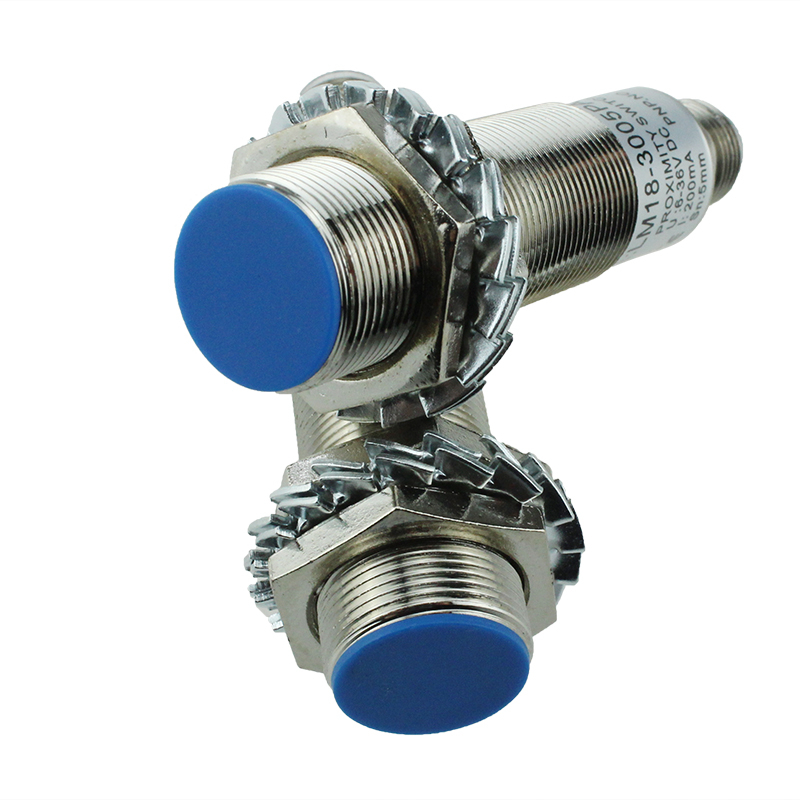

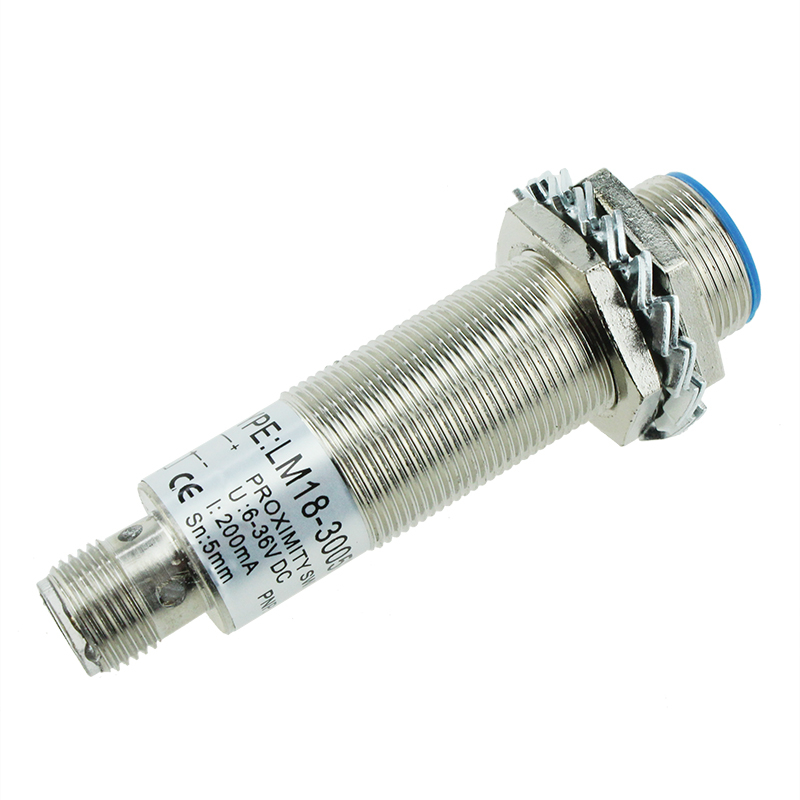

LM18-3005PAT
| LM18 Inductive proximity switch | ||||
| Structural category | Connector type | |||
| Detecting range | 5mm | |||

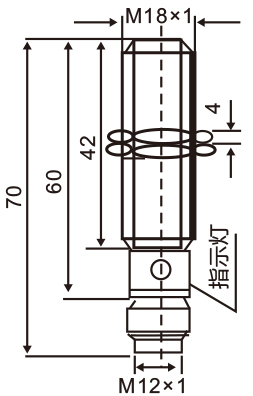

| Overall dimensions |  | |||
| Flush | 10-30VDC
90-250VAC | NPN | NO | LM18-3005NAT |
| NC | LM18-3005NBT | |||
| NO+NC | LM18-3005NCT | |||
| PNP | NO | LM18-3005PAT | ||
| NC | LM18-3005PBT | |||
| NO+NC | LM18-3005PCT | |||
| 2 Wires | NO | LM18-3005LAT | ||
| NC | LM18-3005LBT | |||
| SCR | NO | LM18-2005AT | ||
| NC | LM18-2005BT | |||
| NO+NC | ||||
| Relay output | ||||
| Detecting rang 8mm | ||||
| Non-flush | 10-30VDC
90-250VAC | NPN | NO | LM18-3008NAT |
| NC | LM18-3008NBT | |||
| NO+NC | LM18-3008NCT | |||
| PNP | NO | LM18-3008PAT | ||
| NC | LM18-3008PBT | |||
| NO+NC | LM18-3008PCT | |||
| 2 Wires | NO | LM18-3008LAT | ||
| NC | LM18-3008LBT | |||
| SCR | NO | LM18-2008AT | ||
| NC | LM18-2008BT | |||
| NO+NC | ||||
| Relay output | ||||
Specifications:
| Output current | DC | 200mA | |||||
| SCR/relay | 300mA | ||||||
| Output voltage drop | DC< 3V; AC< 10V | ||||||
| Consumption current | DC<15mA; AC<10mA | ||||||
| Standard detected object | 18×18×1(A3 Iron) | ||||||
| Repeated precision | 0.02 | ||||||
| Response Frequency | 200Hz/10Hz | ||||||
| Working environment temperature | -25℃~+65℃ | ||||||
| Insulation resistance | 50MΩ | ||||||
| Shell material | Metal | ||||||
| Protection grade | IP67 | ||||||
