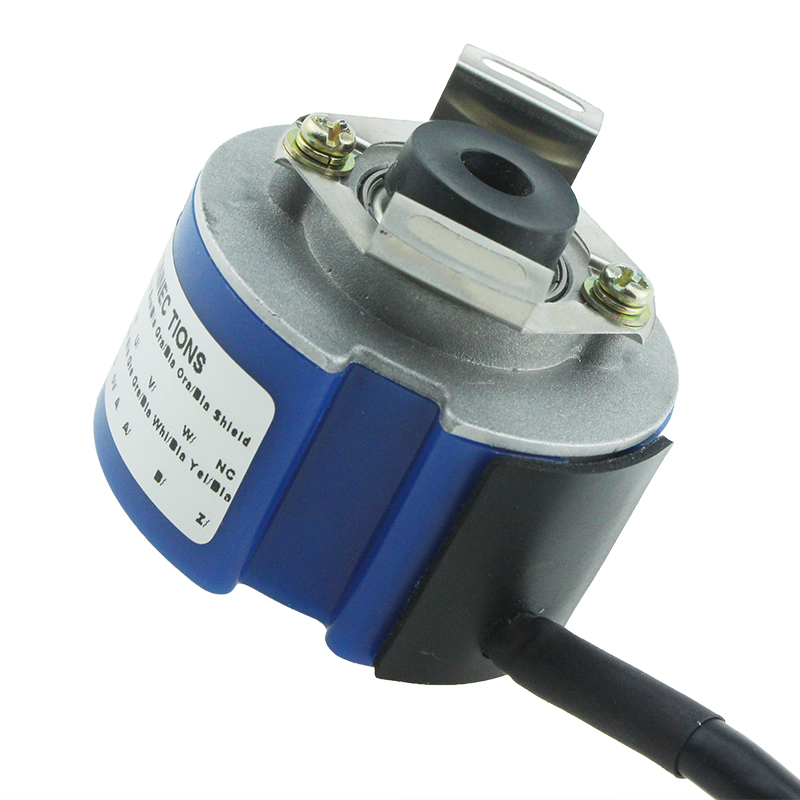

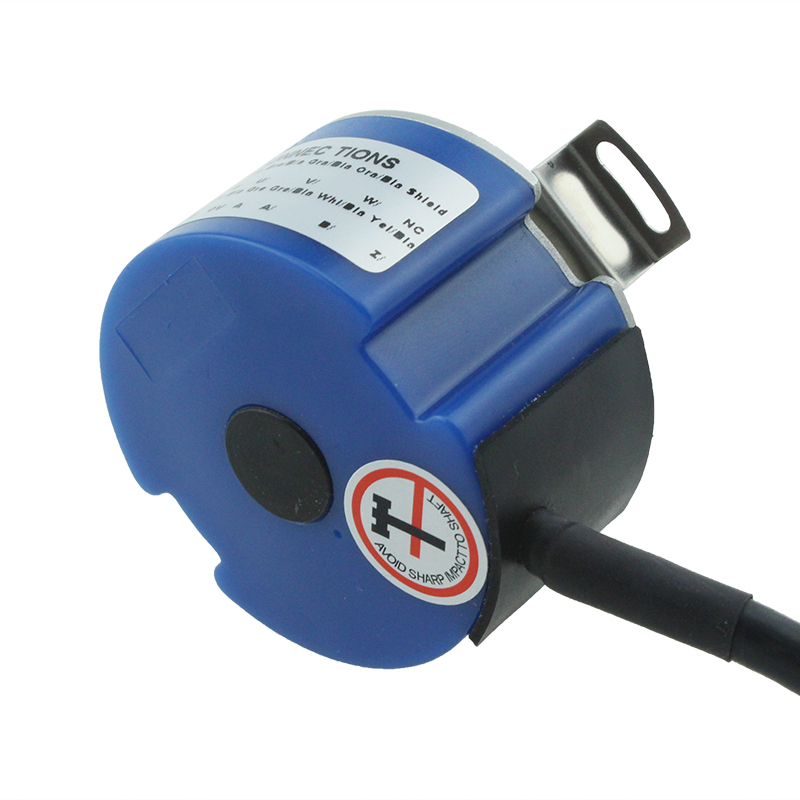

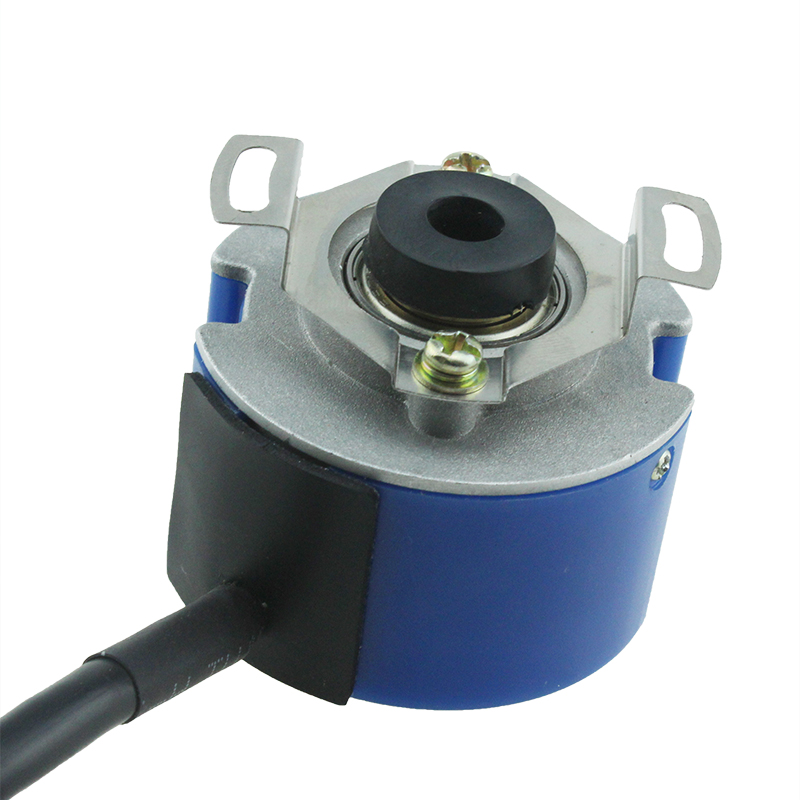

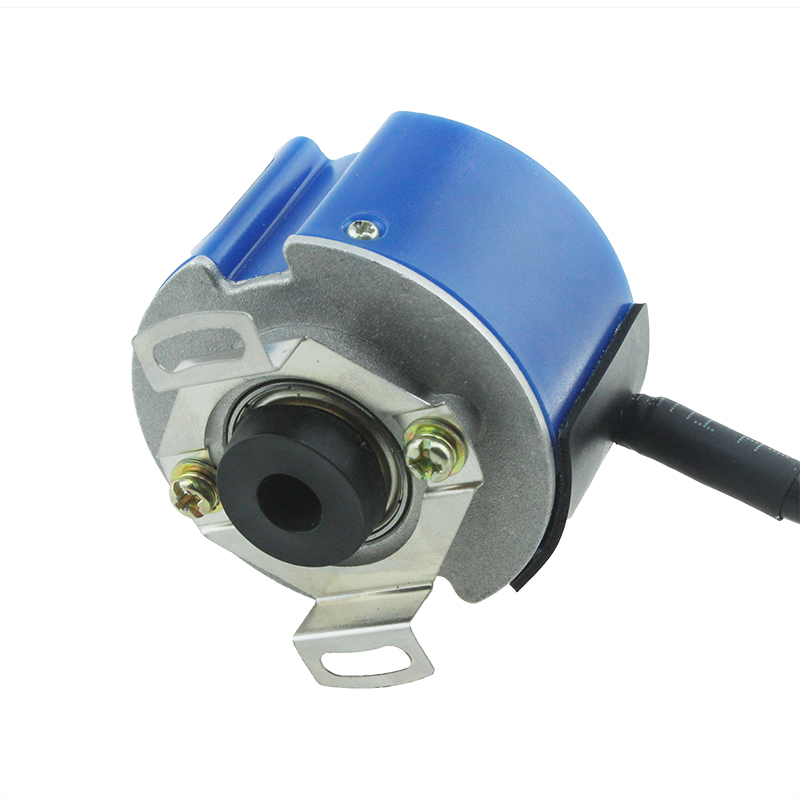

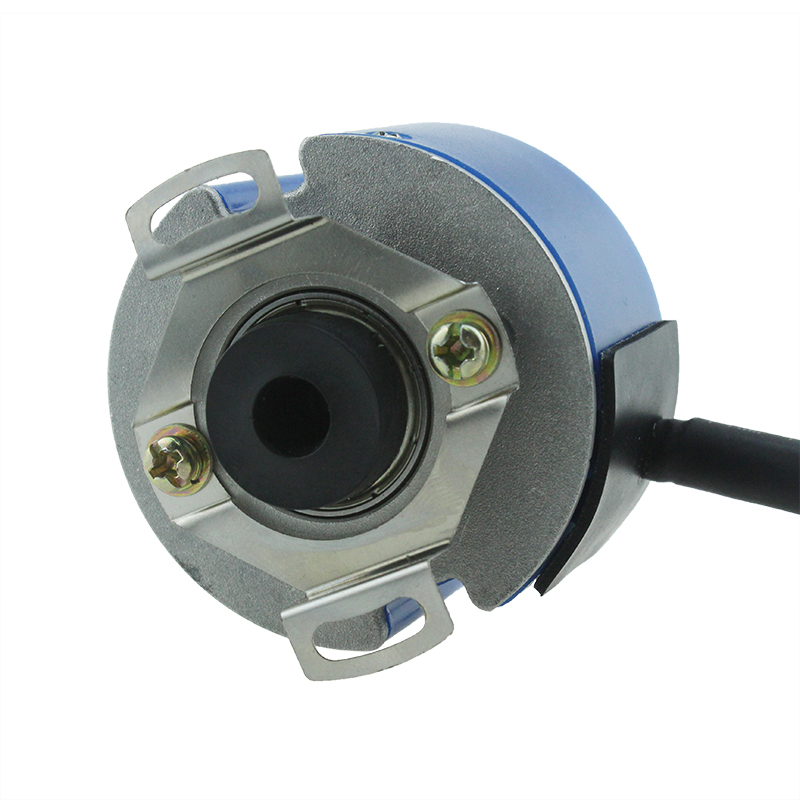

IHU48-08-001G-2048-BZU-3P-5L
Widely used in servomechanism , especially for servomotor.
Feature
Taper shaft design to ensure the firm connection
Wide resolution range and no requirement about signal adjustment
With ABZ UVW 6channels signal output , and can be connect to Line Drive(26LS31)RS422,offer 12 channels signal , and compatible with TTL

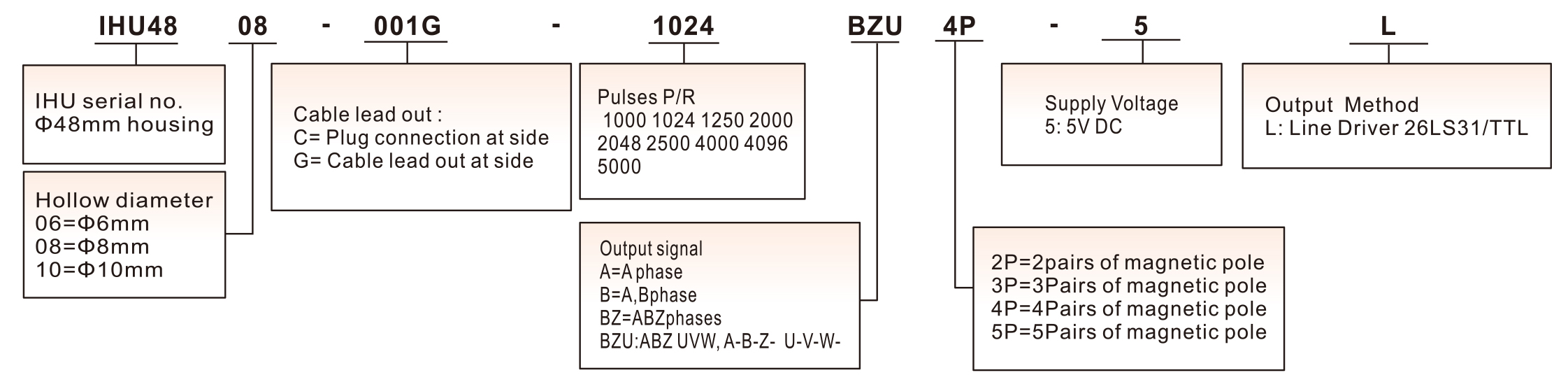

Ordering Information
Technical Specifications
Mechanical Specification | ||||
Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
6000 | <0.02Nm | Radial:20N, Axial:10N | 50G/11-ms | 10G 10-2000Hz |
Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
4*10-8Kgm2 | -40~85℃ | -40~85℃ | IP50 | 120g |
Connection Table
Signal | A | B | Z | A- | B- | Z- | Vcc |
Color | Green | White | Yellow | Green/ Black | White/ Black | Yellow/Black | Red |
Signal | U | V | W | U- | V- | W- | GND |
Color | Brown | Gray | Orange | Brown/Black | Gray/ Black | Orange/ Black | Black |

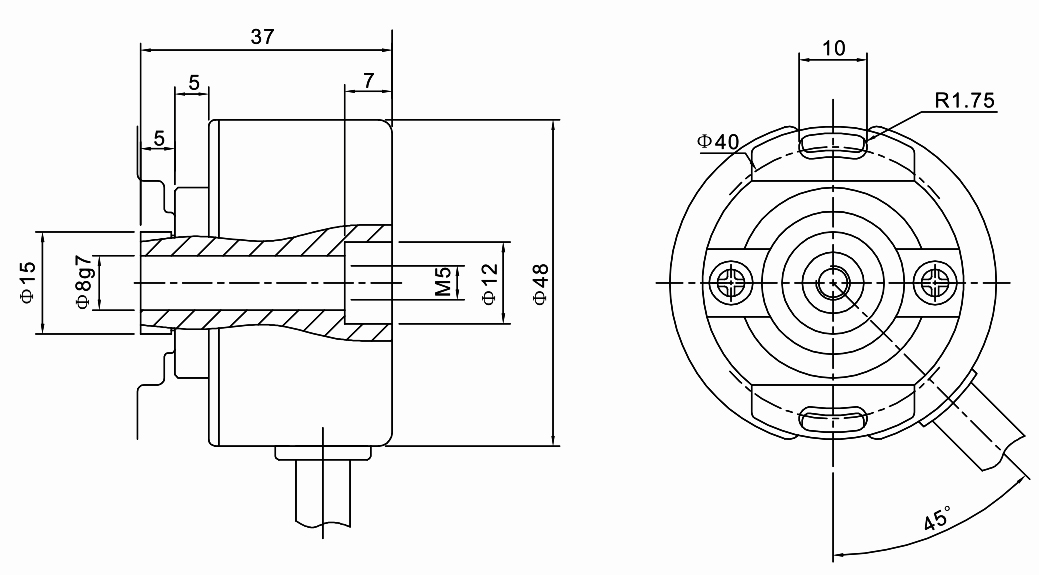

Dimensions(mm)
