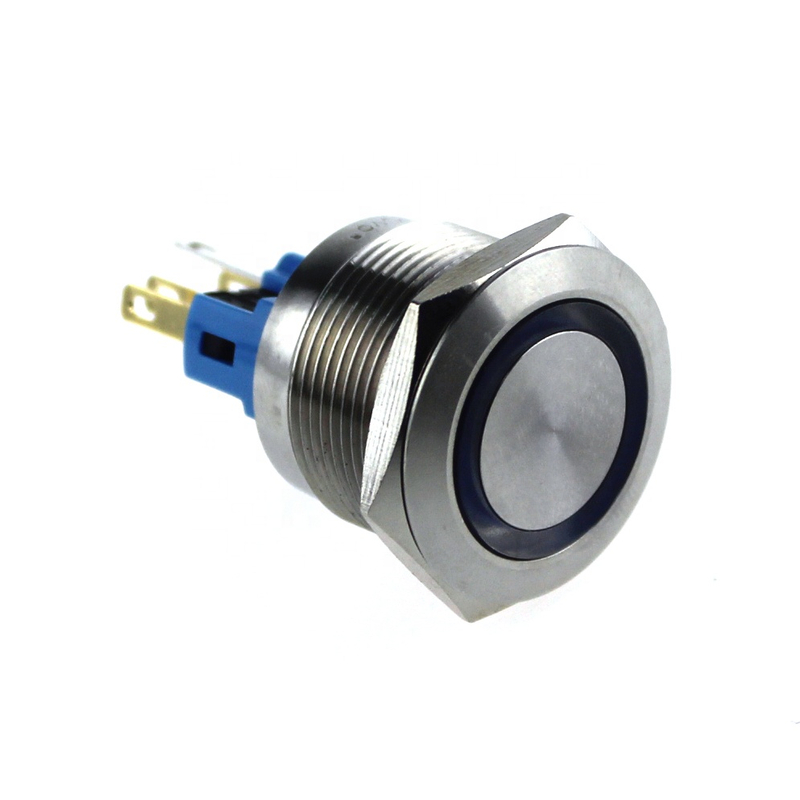

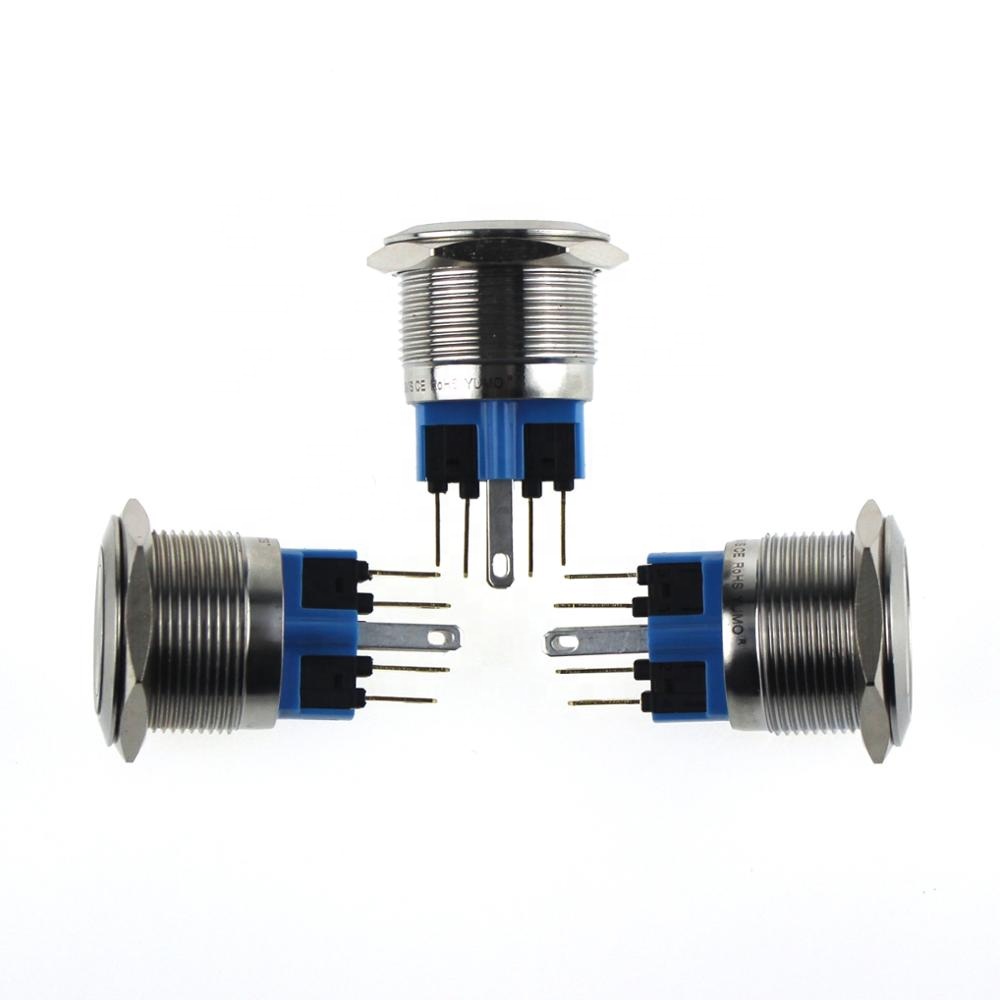

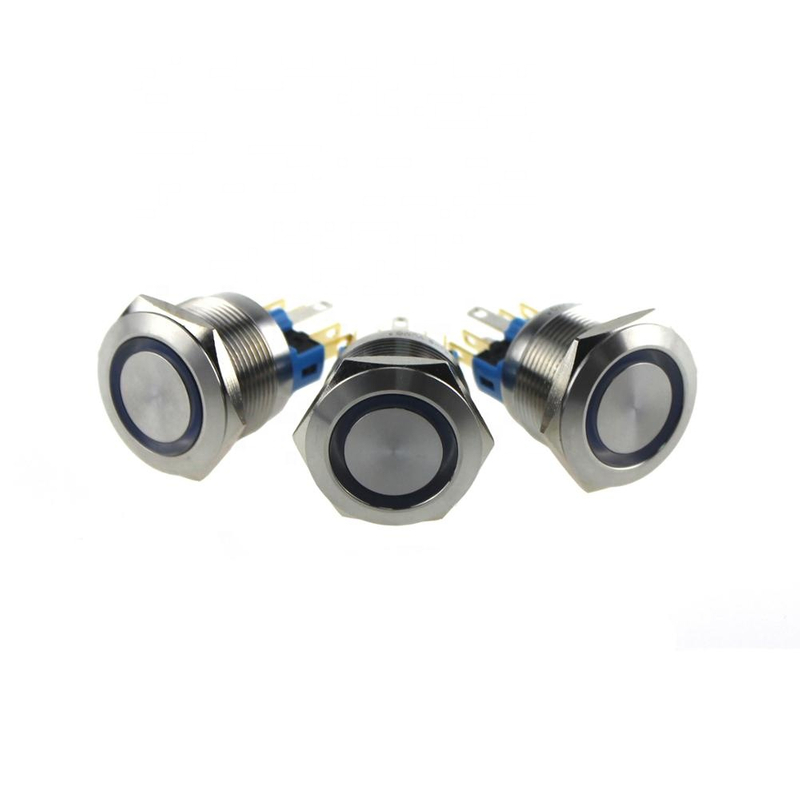

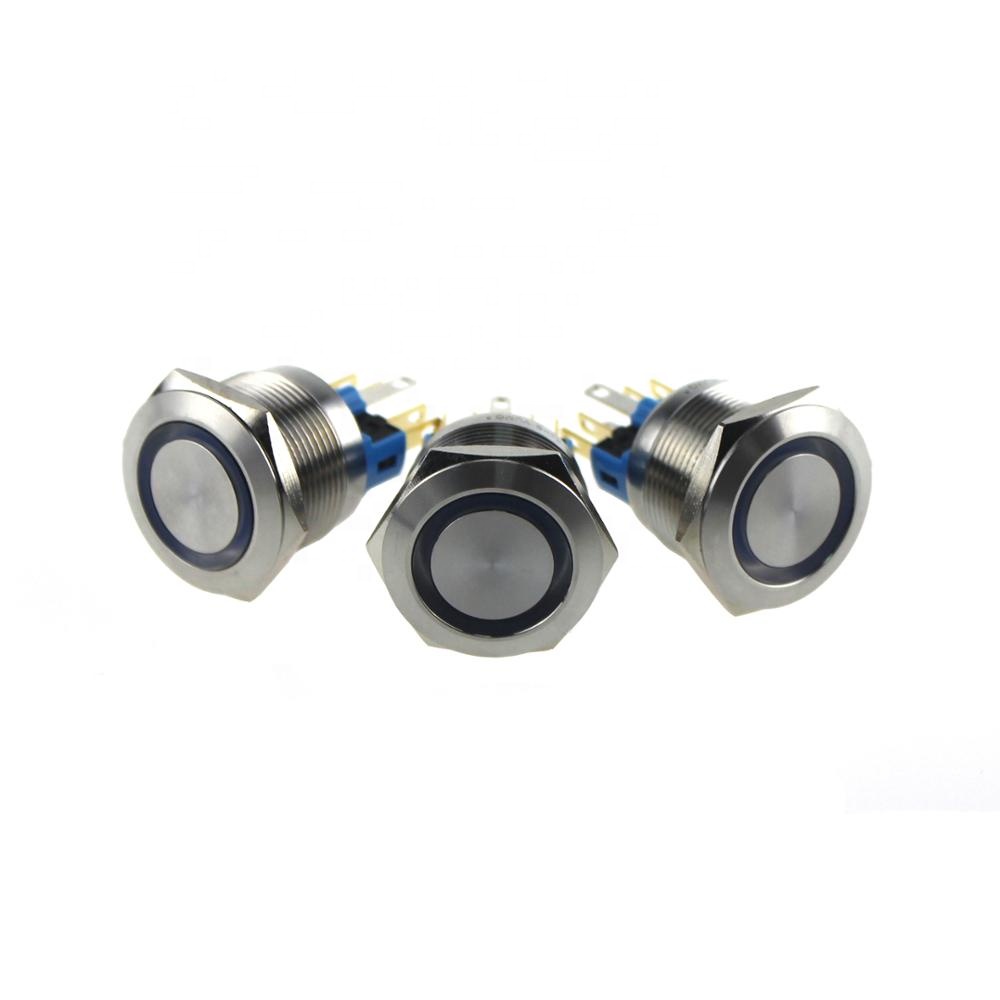

JS22F-11-E-B-24V-S medical treatment elevator equipment micro switch waterproof Metal push button

Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.


Availability:
  • JS22F-11-E-B-24V-S

JS22F-11-E-B-24V-S medical treatment elevator equipment micro switch waterproof Metal push button

Switch Rating:5A/250VAC
Contact Configuration:1NO1NC
Operation Type:Momentary/Alternate
The Crust Material:stainless Steel
Ring lluminated
IP Degree:lP40/1P67

Specification JS22F
The Front Shape Flat Round
Terminal Type Pin Terminal(2.8x0.5mm)
Switching NO.2
Max.Switch Rating Ith:5A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000mΩ
Dielectic Strengh 2000VAC
Operating Temp -20ºC-+55ºC
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~8mm
Tortque 5~ 14Nm
Operation Pressure About 5.5mm
Operation Distance About 2.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PA
ROHS Made to order
LED Specl Type Ring Illuminated(LED)
Rated voltage 6V/12V/24V/36V/110V/220V
Color R  G  Y  O  B  W
Life 40000 hours
