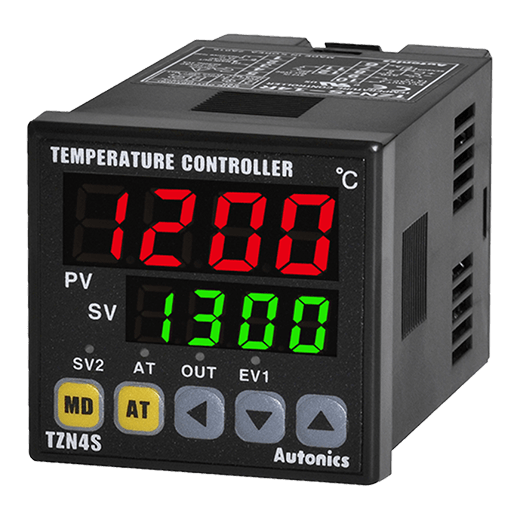

Autonics Temperature Controllers TZN4S-14R

Features:

• Display method : 4-digit 7-segment LED

• Control method : ON/OFF control, P, PI, PD, PIDF, PIDS control

• Input specification : Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT)
  RTD: DPt100Ω, JPt100Ω
  Analog: 1-5VDC , 0-10VDC , DC4-20mA

• Sampling cycle : 500ms

• Control output : Relay(250VAC~ 3A)

• Power supply : 100-240VAC~ 50/60Hz

Description:

Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PIDF, PIDS control
Input specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT) RTD: DPt100?, JPt100? Analog: 1-5VDC , 0-10VDC , DC4-20mA
Sampling cycle	500ms
Control output	Relay(250VAC~ 3A)
Option output	Event 1
Power supply	100-240VAC~ 50/60Hz
Approval
Display accuracy	F.S ± 0.3% or 3?, select the higher one
Alarm output hysteresis	1 to 100? (0.1 to 100.0?) variable
Proportional band	0.0 to 100.0%
Integral time	0 to 3,600 sec
Derivative time	0 to 3,600 sec
Control period	1 to 120 sec
LBA setting	1 to 999 sec
Ramp setting	Ramp Up, Ramp Down: 1 to 99 min each
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 226g(approx. 164g)
