YMB2-20

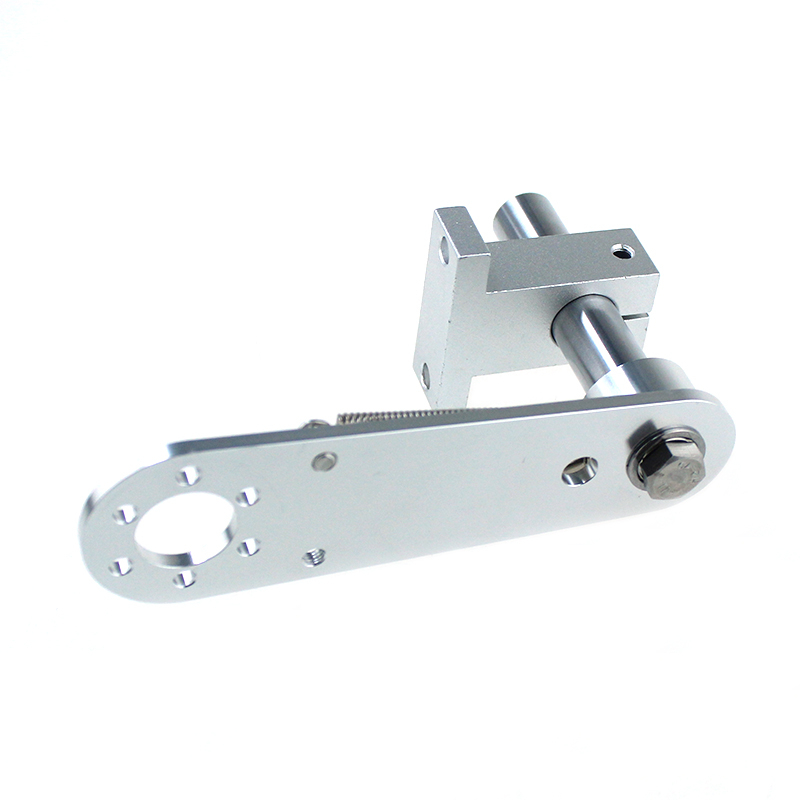

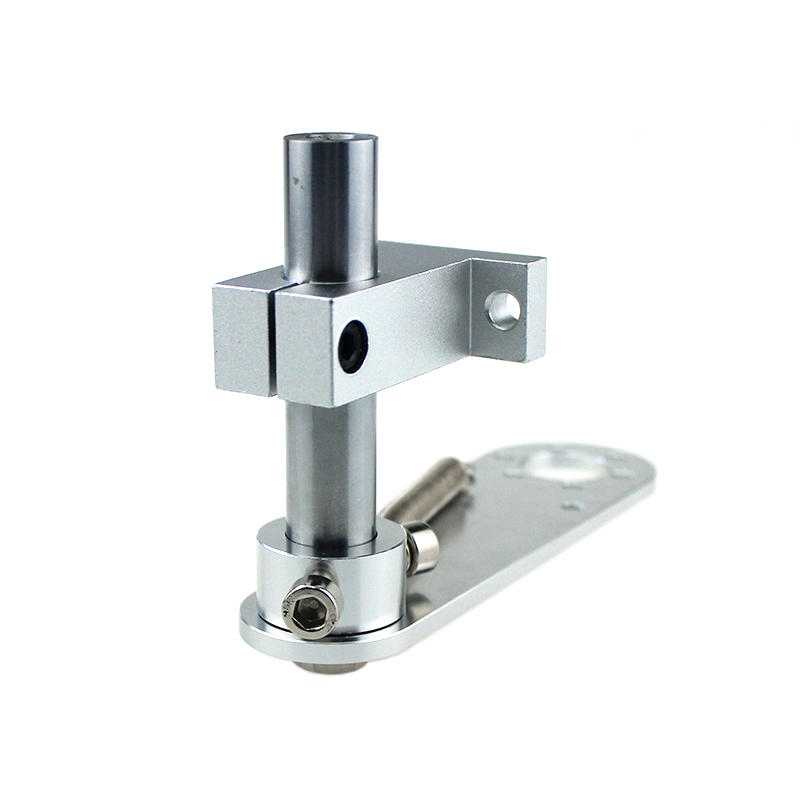

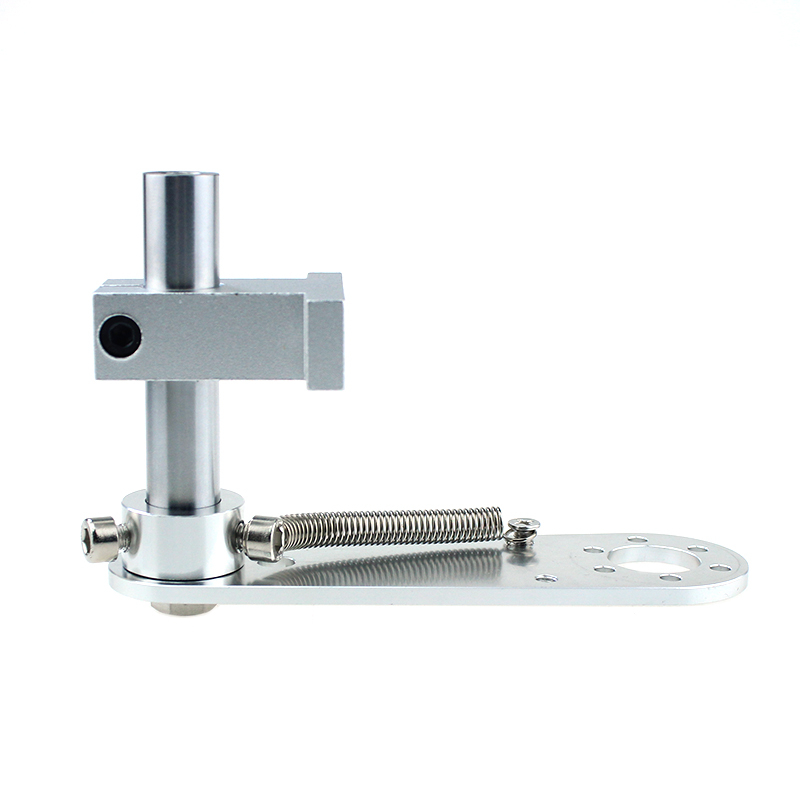

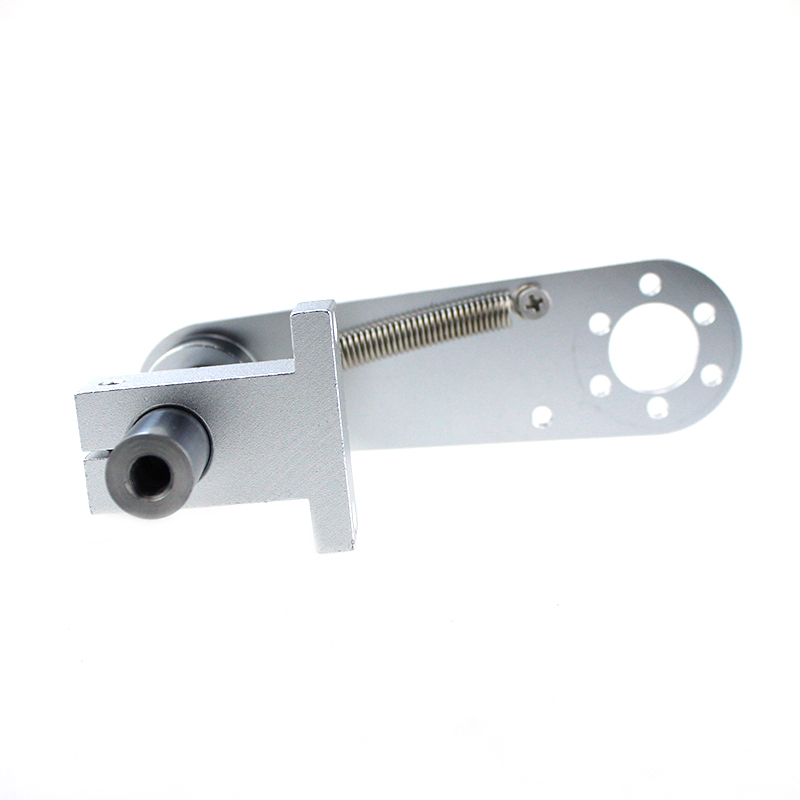

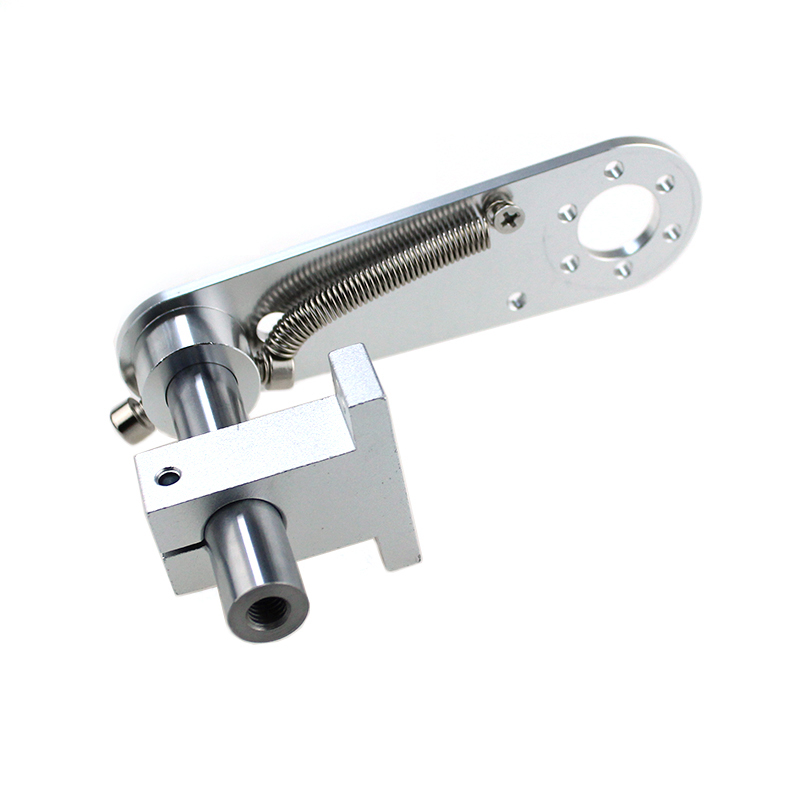

YMB2-20 multifunctional adjustable Encoder Mounting Bracket with 20mm seam allowance
Product Description
Model number:
YMB2-20
Application:
Rotary encoder mounting bracket, work with Meter wheel.
Features:
All metal material——Aluminum alloy;
wear - resistant;
precise;
easy to install;
6 hole installation supports most encoders on the market.
Overall dimensions:
(unit: mm)
| Seam allowance 20 Encoder fixed chip parameters (unit: mm) | |
| Z | 20.5 |
| L | 4 |
| K | 28-30 |
| H1 | 42 |
| H2 | 33 |
| C1 | 140 |
| C2 | 104.5 |
