LM30-3025PC LM30 Non-flush Cylinder Type Proximity Switch Sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch ,  will be your best choice .
Availability:
  • LM30-3025PC


LM30-3025PC LM30 non-flush Cylinder type proximity switch sens

LM30 Inductive proximity switch
DETECTION DISTANCE  10mm
Flush DC
10-30
VDC





AC
90-250
VAC
  NPN NO LM30-3010NA
NC LM30-3010NB
NO+NC LM30-3010NC
  PNP NO LM30-3010PA
NC LM30-3010PB
NO+NC LM30-3010PC

2 Wires

system

NO LM30-3010LA
NC LM30-3010LB
SCR NO LM30-2010A
NC LM30-2010B
NO+NC LM30-2010C
Relay output LM30-2010JC
Detecting rang 8mm 15mm
Non-flush

DC

10-30

VDC







AC

90-250 VAC


NPN NO LM30-3015NA
NC LM30-3015NB
NO+NC LM30-3015NC
PNP NO LM30-3015PA
NC LM30-3015PB
NO+NC LM30-3015PC

2 Wires

system

NO LM30-3015LA
NC LM30-3015LB
SCR NO LM30-2015A
NC LM30-2015B
NO+NC LM30-2015C
Relay output LM30-2015JC
Output current DC 200mA
SCR/relay 300mA/1A
Output voltage drop DC/AC DC<3V AC<10V
Consumption current DC<15mA AC<10mA
Standard detected object   30*30*1(A3 Iron)
Repeated precision 0.05
DC/AC Response Frequency 200Hz/25Hz
Working environment temperature  -25ºC~+65ºC
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
1

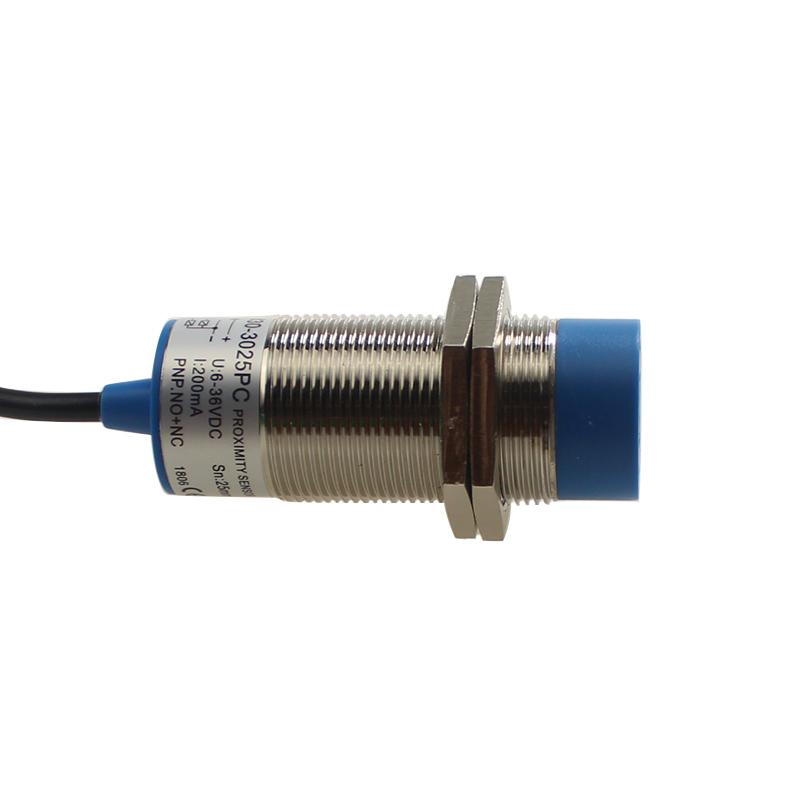

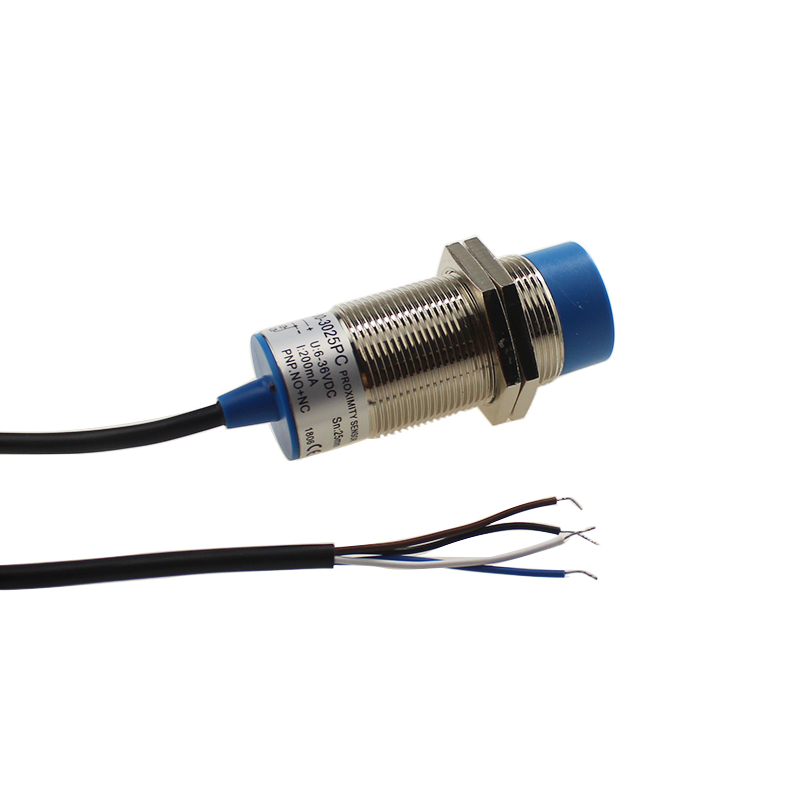

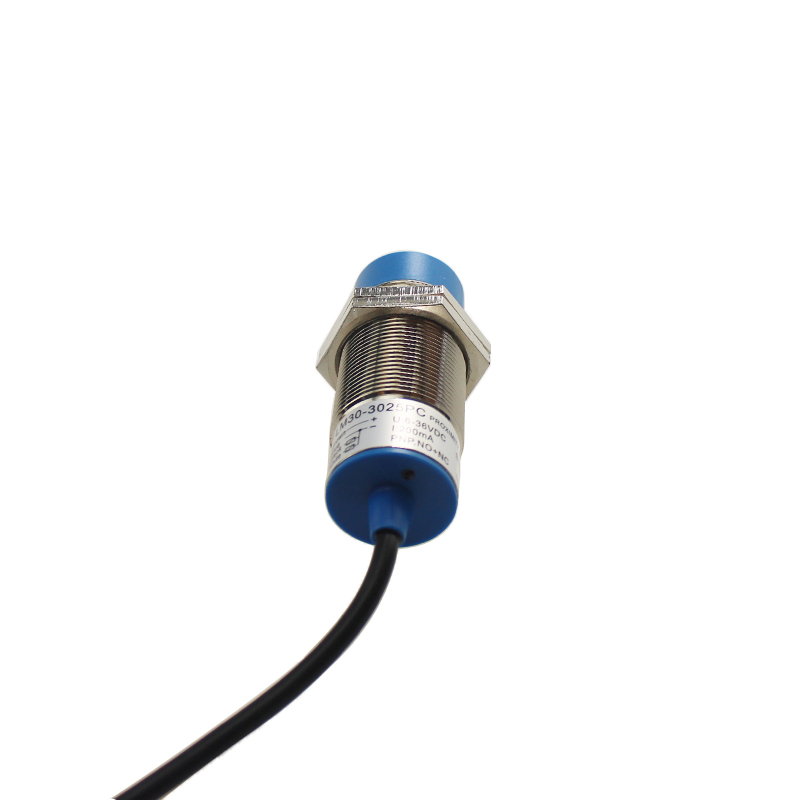

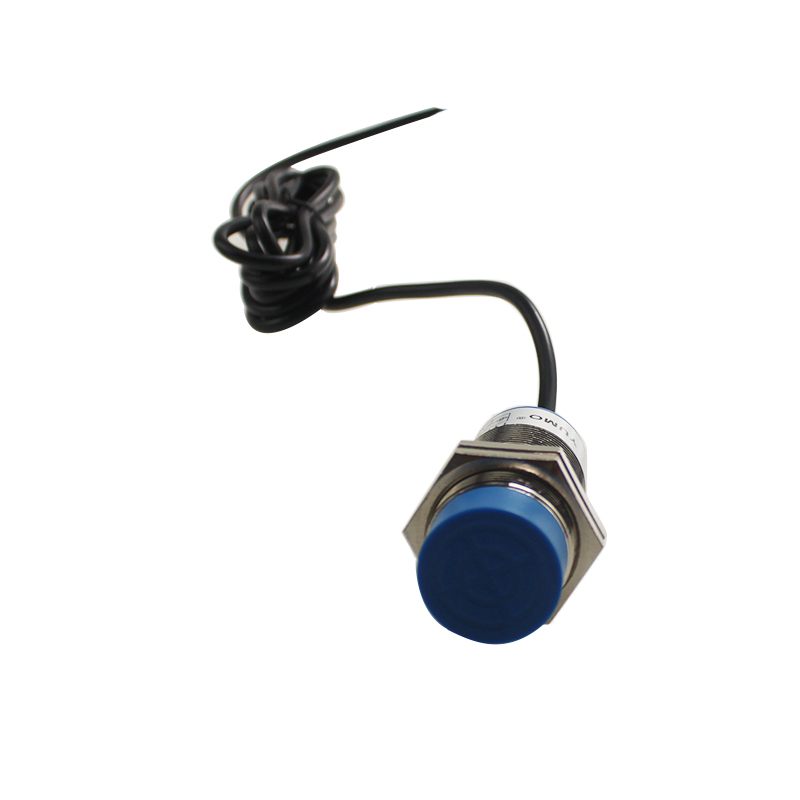

Product Pictures

LM30-3025PC (1)LM30-3025PC (5)


FAQ:
Q:How to order our product?

A: 1) Please tell us the model and quantity and other request you need.

   2) We make the PI for you.

   3) After you confirm the PI, we arrange the order for you after receiving your payment.

   4) After the goods finished, we send the goods out to you and tell you the tracking number.

   5) We will track your goods until you receive the goods.

Q:  What's your warranty?

A: One year.

Q: What's your contact information?

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What about MOQ?

A: First order MOQ=1pcs.

Q: If I want to release order, what's the payment method you accept?

A: We accept T/T, Paypal, Western union, L/C.

Q: If I want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.

Thank you & Now pls send your  kindly inquiry !  ^!^
