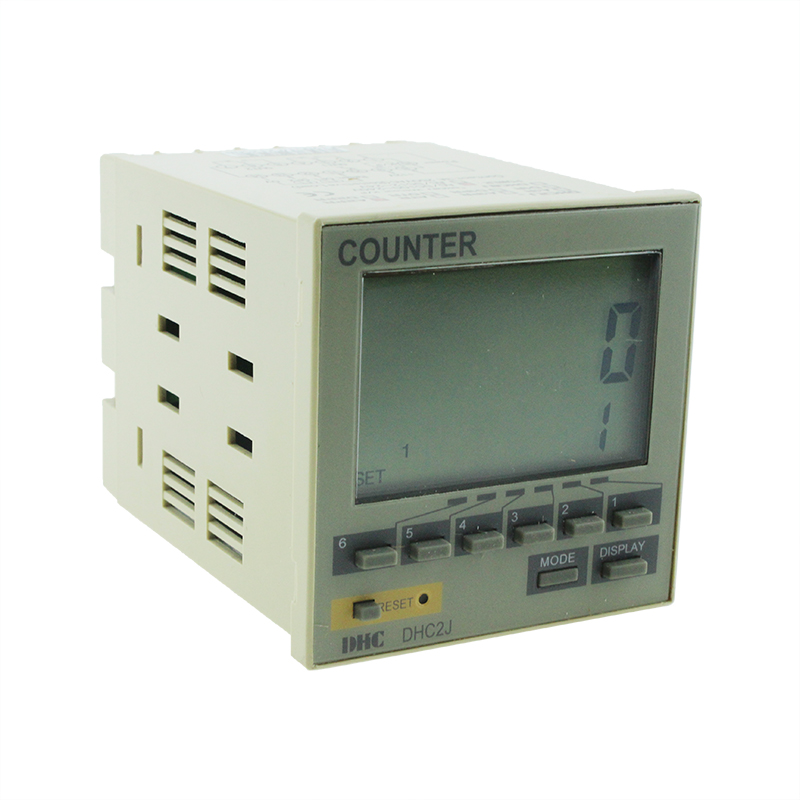

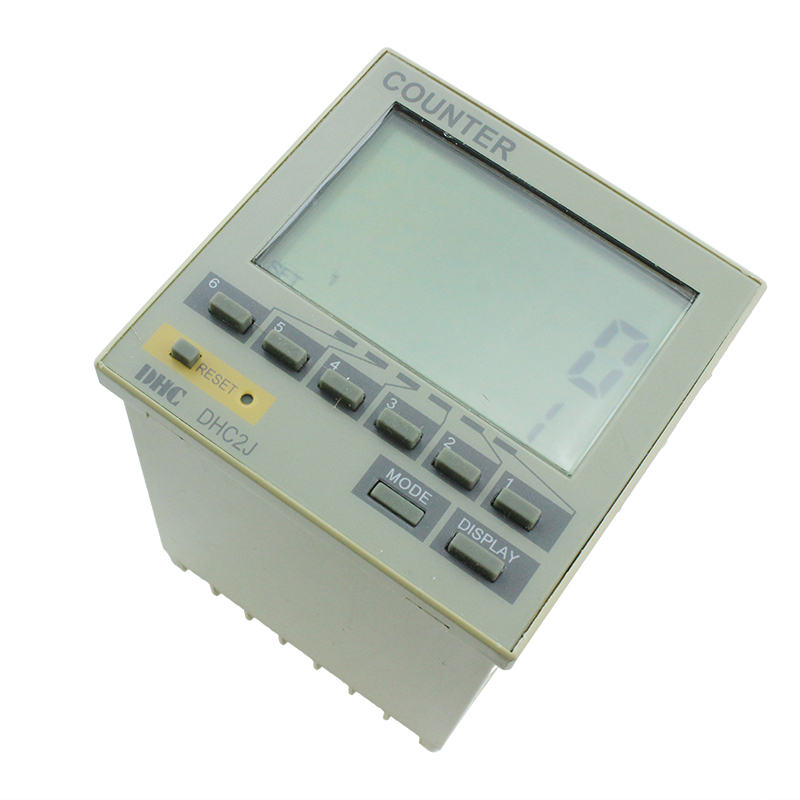

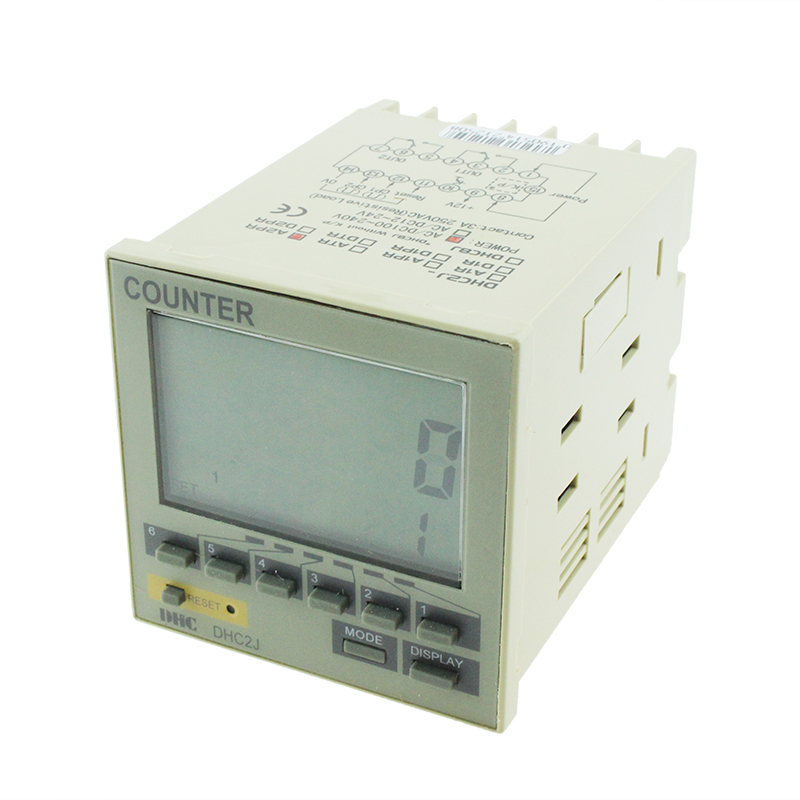

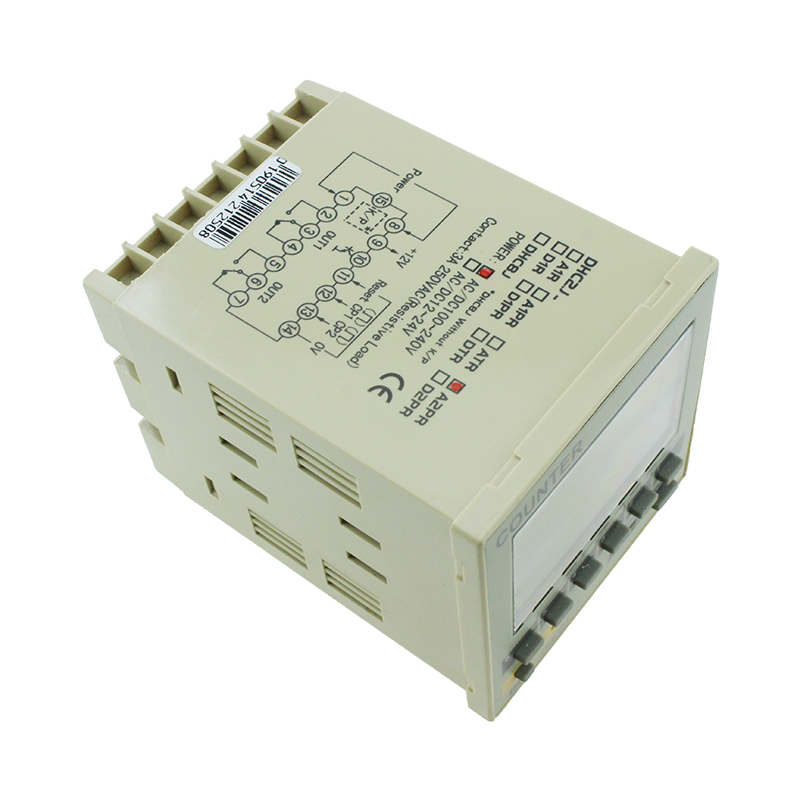

DHC2J-A2PR Small Economical Industrial Electronic 5 Digits Totalizing Counter Meter

Availability:
Inquire Add to Basket

  • DHC2J-A2PR

Counting Range 0~999999
Counting Speed 30/3K cps
Power supply AC 110~240V 50/60Hz
Contact output2c
Sold-state output(2A 250VAC Resistive Load)
or (NPN Open collector DC30V 100mA)
Power for Sensor DC 12V 100mA
Control functionUP / Down / A, B, C Pre-scale function (0.001~99.999) Decimal point adjustment.
Output modeN, F, C, R (C, R mode shout-output time delay can be set from 0.01s~9.99s)
DISPLAY6 Digit, LCD with Backlight
Memory backup 10 years (at 25 o C)
Reset system Power-OFF reset, External reset, Manual reset
