SDA

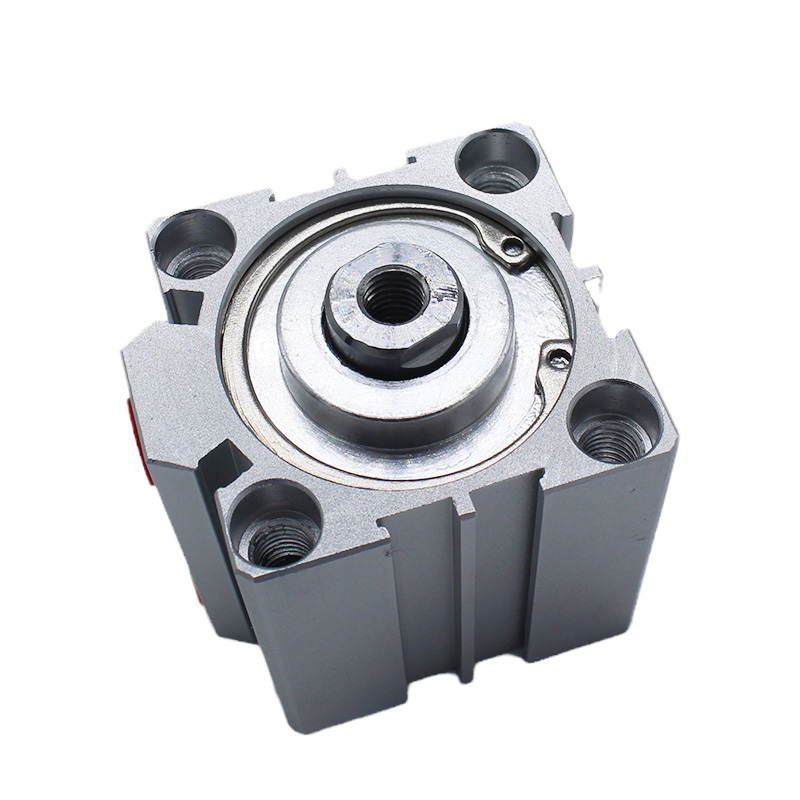

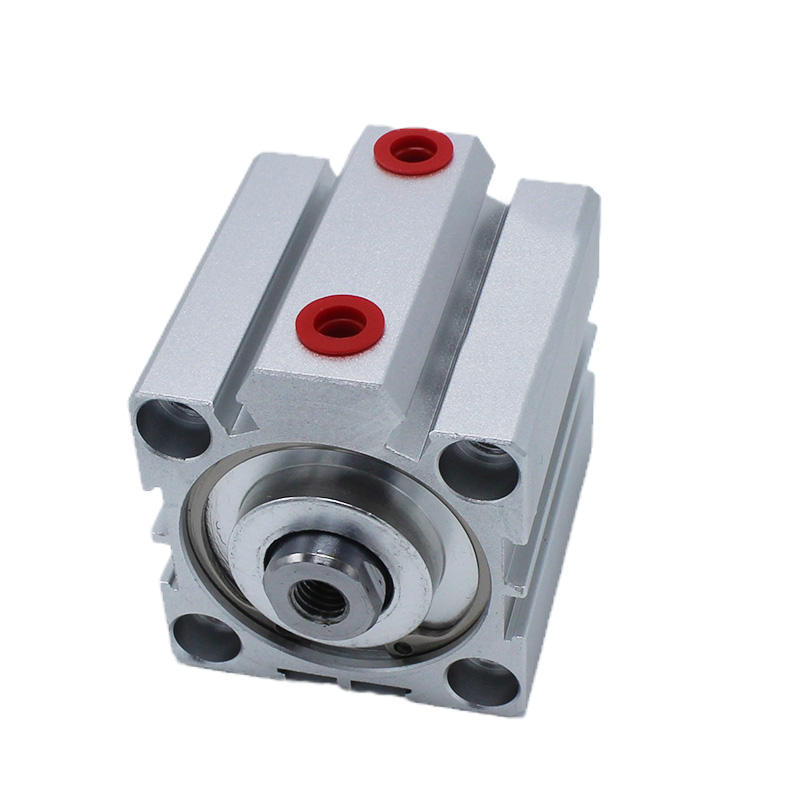

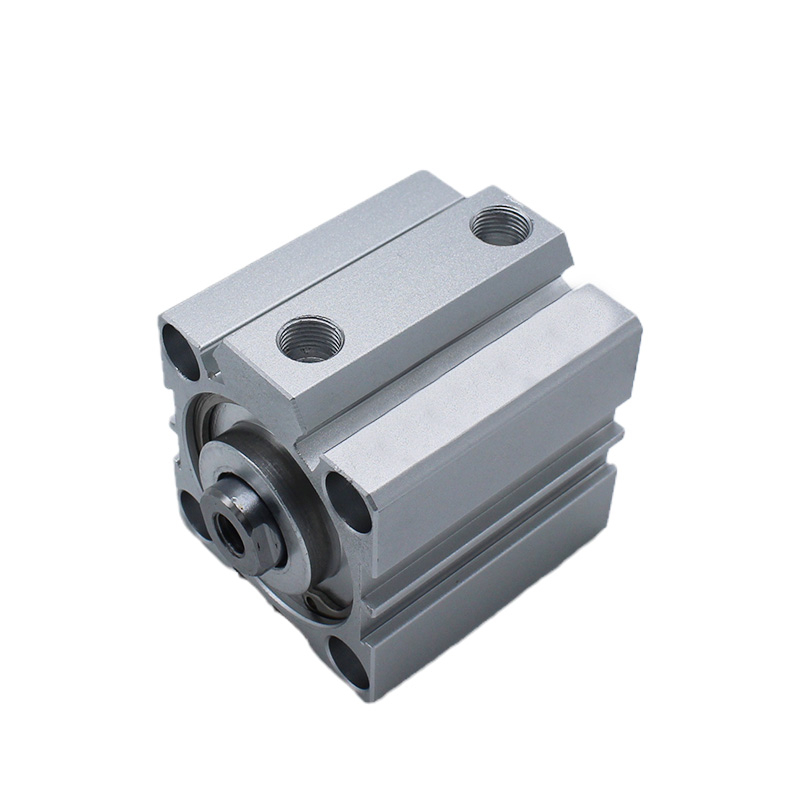

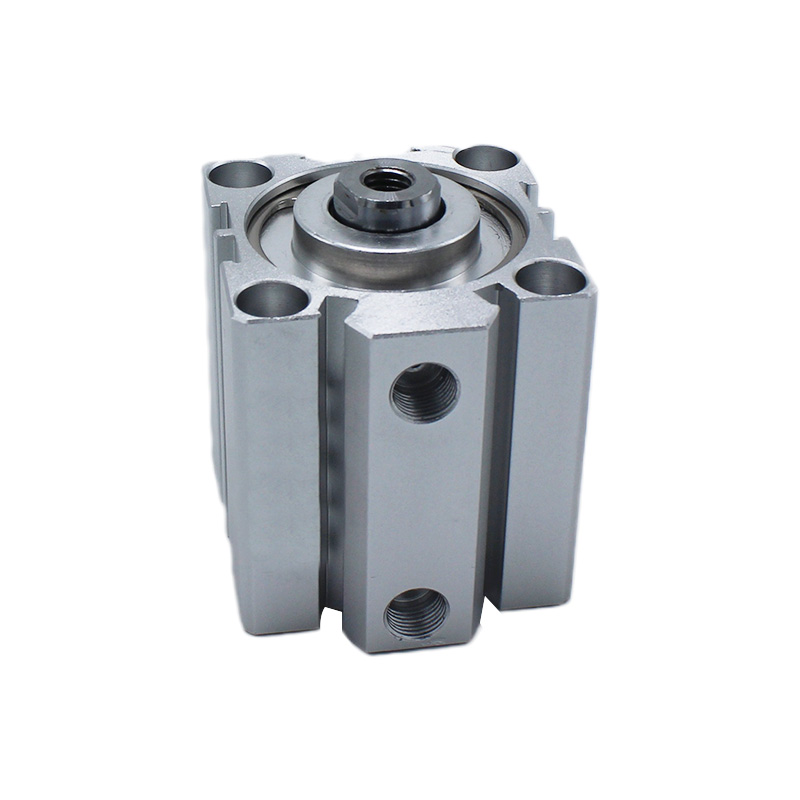

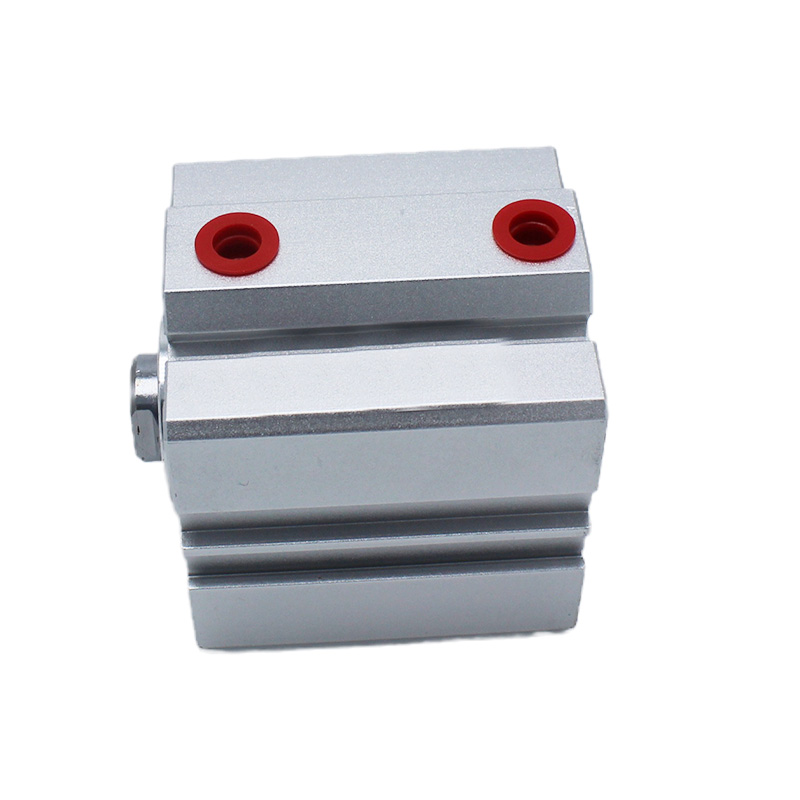

1.Product Introduction of the Pneumatic Air Cylinder Double Acting
SDA series thin cylinder, compact and durable, easy to install.
2.Product Parameter（Specification）of the SDA series Pneumatic Air Cylinder Double Acting
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action | SDA | Double acting,single rod/double rod | |||||||||
| SSA/STA | single acting,spring return/extend | - | |||||||||
| Fluid | Filtered compressed air | ||||||||||
| Proof pressure | 1.5MPa | ||||||||||
| Operating pressure range | SDA | 0.1-0.9MPa | |||||||||
| SSA/STA | 0.2-0.9MPa | _ | |||||||||
| Ambient and fluid temperature | —10~70°C No freezing | ||||||||||
| Port size | M5*0.8 | Rc1/8 | Rc1/4 | Rc3/8 | |||||||
| Piston rod thread | Female thread | M5*0.5 | M4*0.7 | M5*0.8 | M6*1.0 | M8*1.25 | M10*1.5 | M14*1.5 | M18*1.5 | ||
| Male thread | M5*0.8 | M6*1.0 | M8*1.25 | M10*1.25 | M14*1.25 | M18*1.5 | M22*1.5 | M26*1.5 | |||

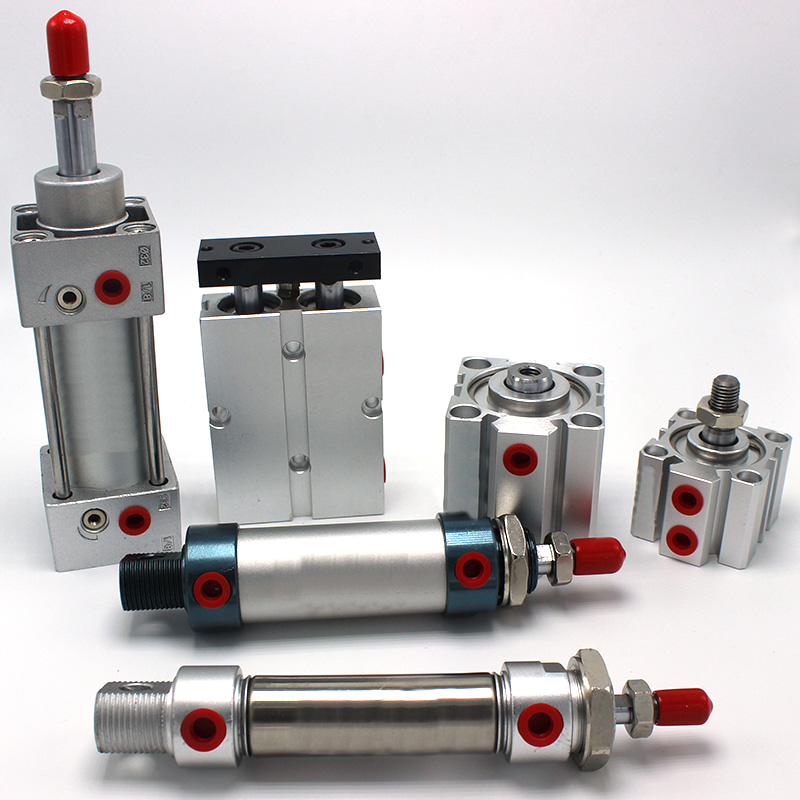

3. Production Details of the Pneumatic MA25*25 Stainless Steel Mini Cylinder
4. FAQ
Q: Are you products standard?
A: Our model is standard, if you have specific demand, please tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email,we will reply in 24 hours.
Q. Are you manufacturer or trading company? A. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q. what’s the payment term? A. We accept T/T, PayPal, WESTERN UNION.
