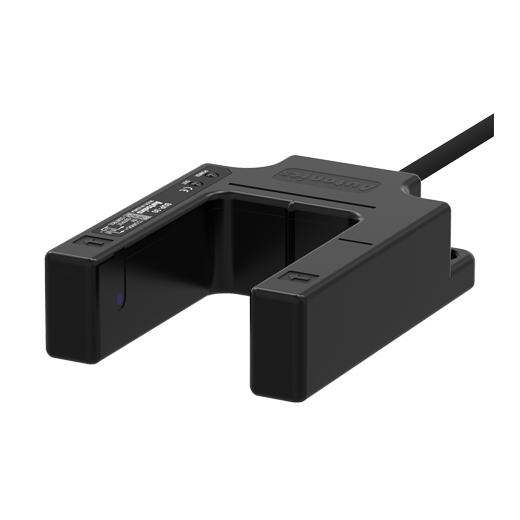

BUP-30S
Autonics
Description:
| Sensing type | Through-beam type |
|---|---|
| Sensing Channel | 1-channel |
| Sensing distance | 30mm |
| Sensing target | Opaquematerial of min. Ø1.5mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate |
| Accessories | Adjuster driver |
| Weight | Approx. 85g |
