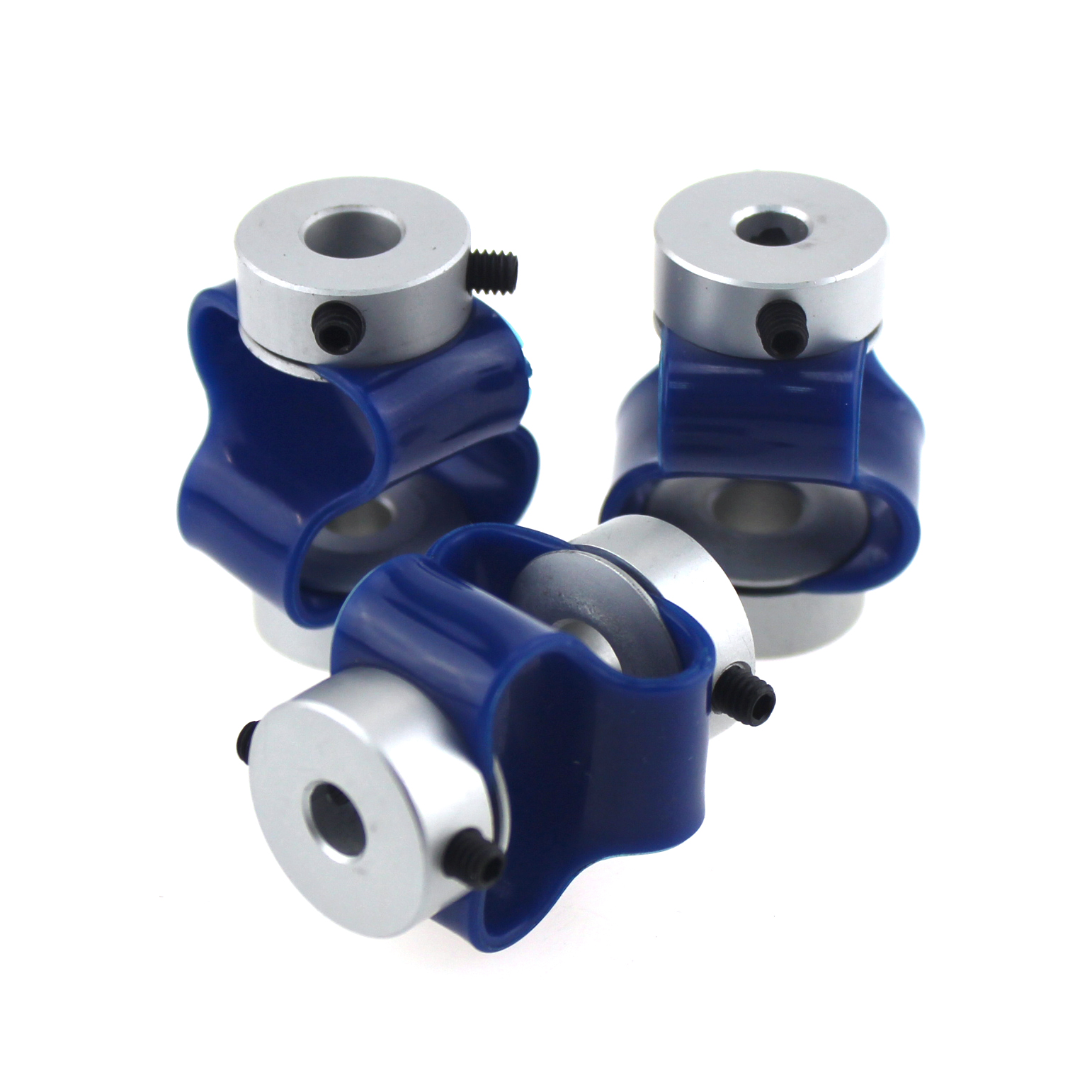

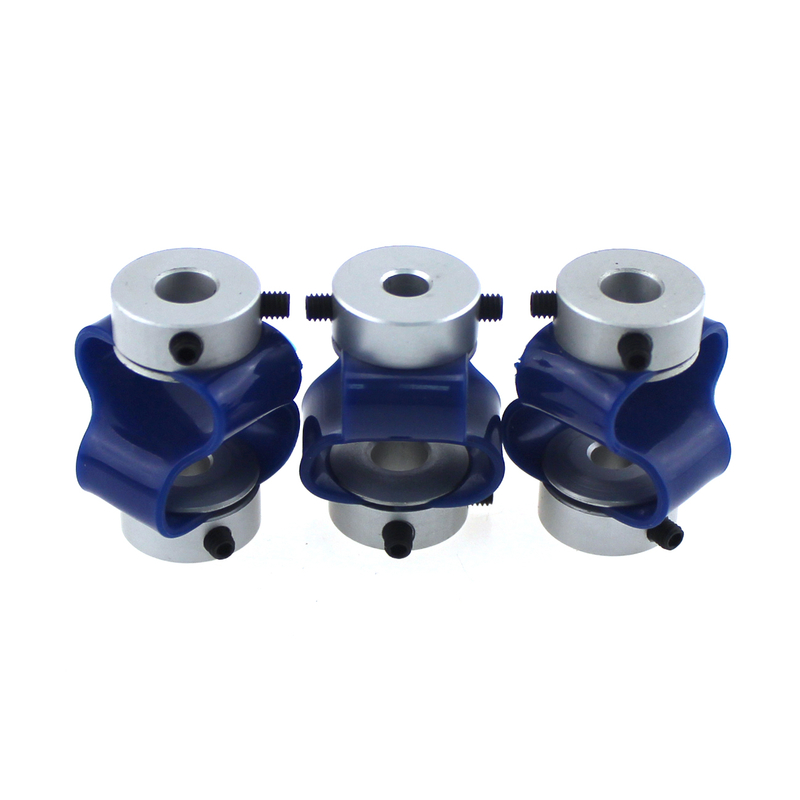

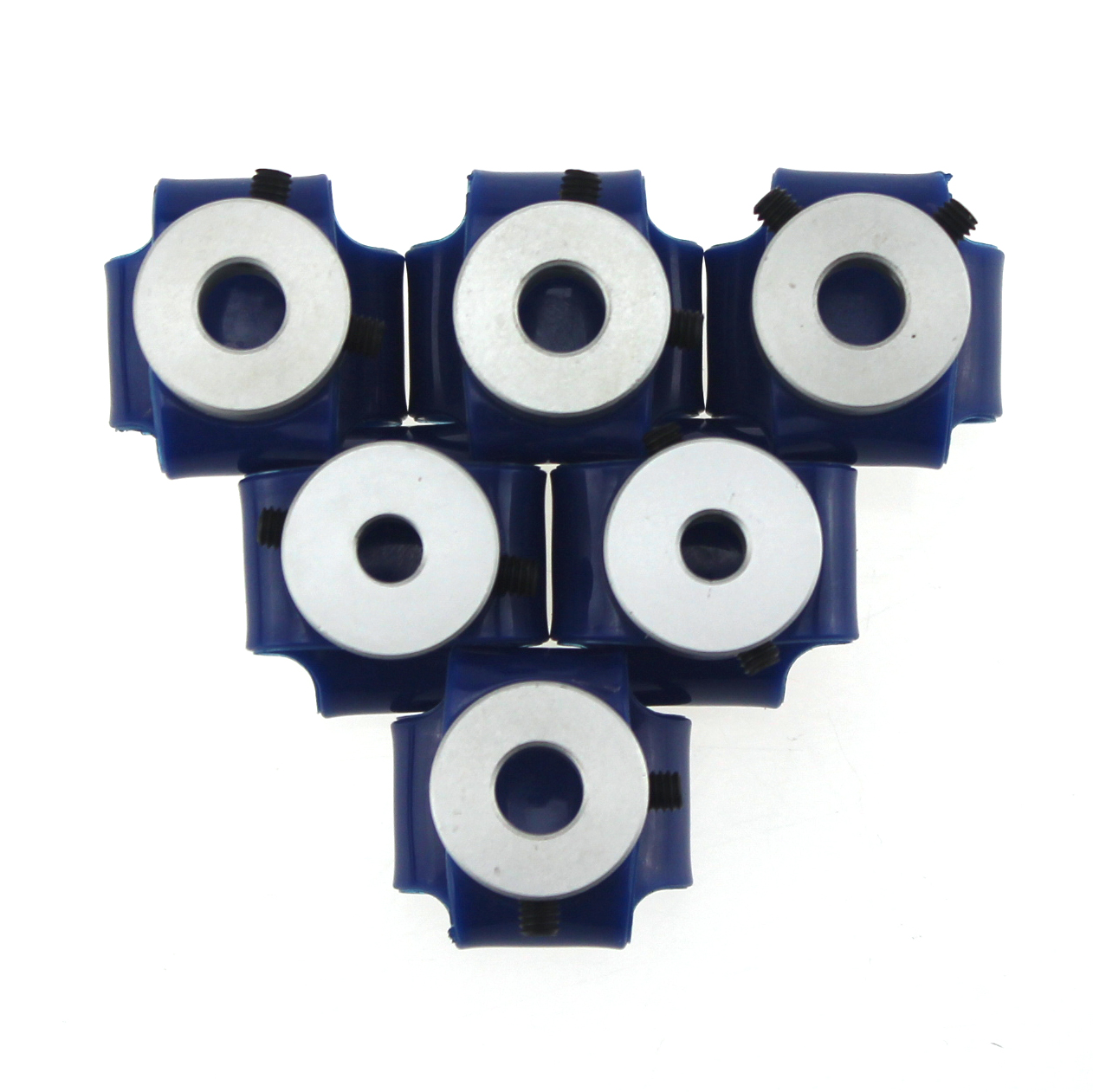

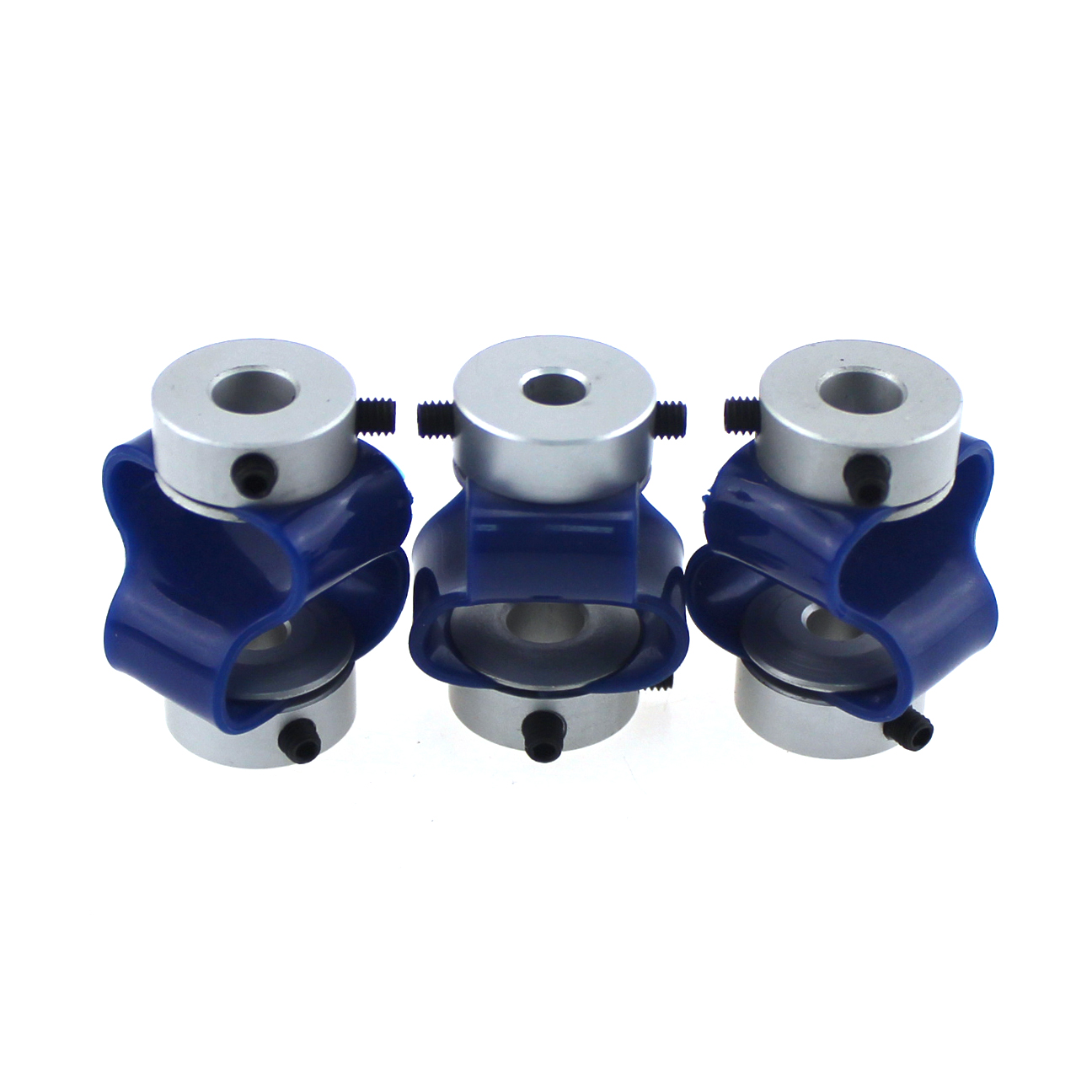

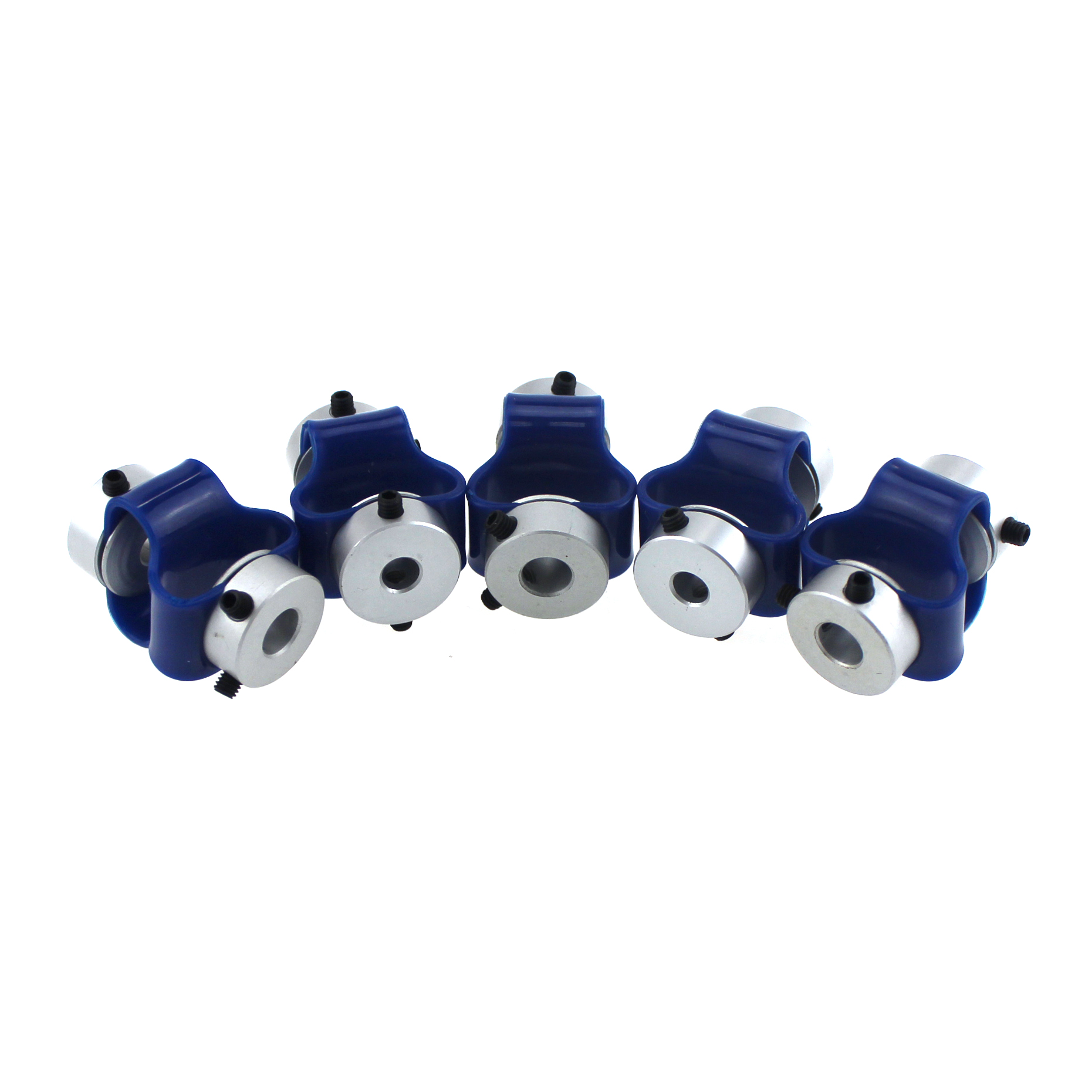

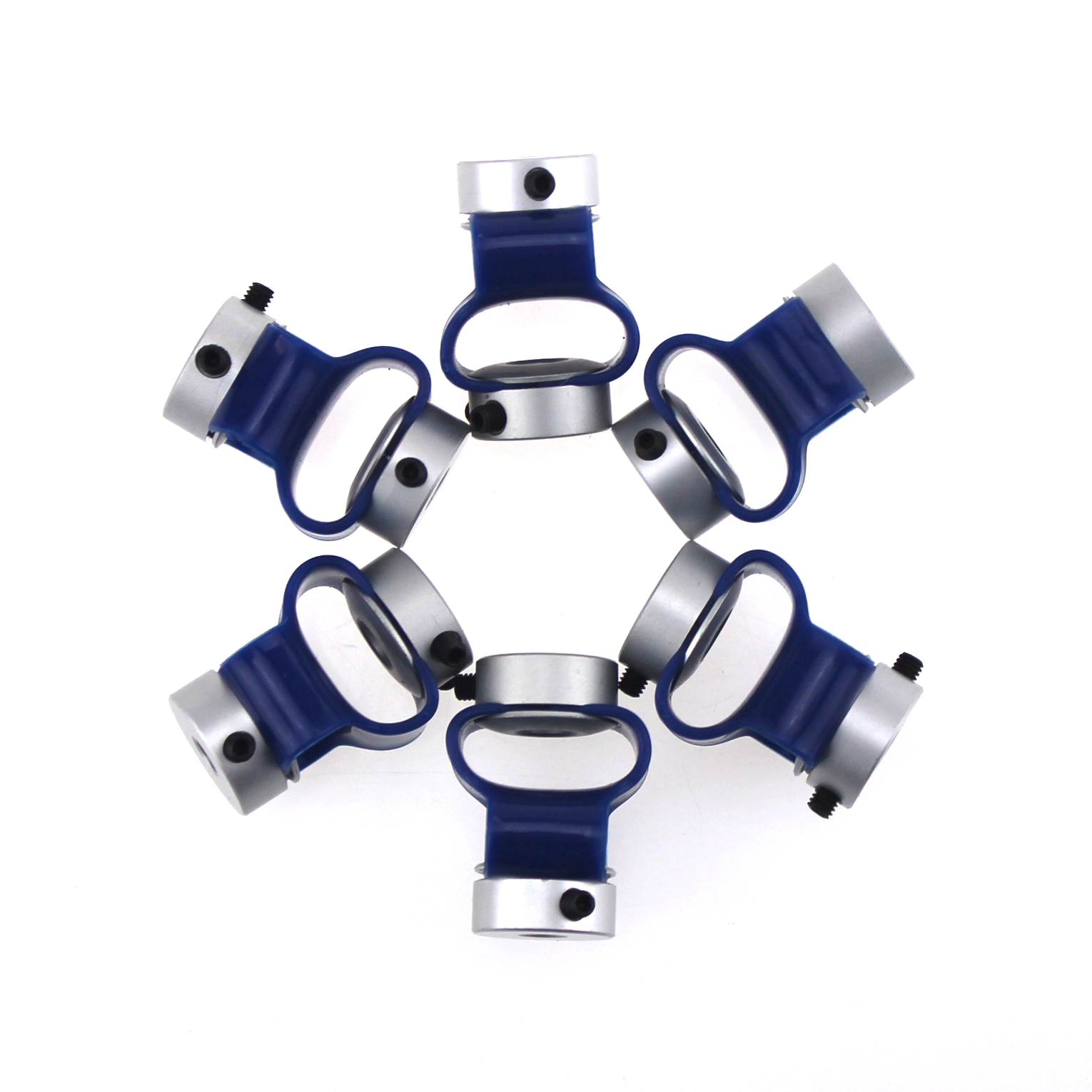

LS-D-D28L38
◆Feature:
Steel hubs are zinc plated.They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.The hubs fix to sharts by metric set screws.Maximum operating temperature is 80℃.
◆Specification:
● High angular misalignment to 15 °
● High axial and parallel misalignments
● Slient in operation,torsionally soft
● Dampens vibrations, increases bearing life
● Maintenance-free,4000 hour rated life
● Resistant to oils and solvents

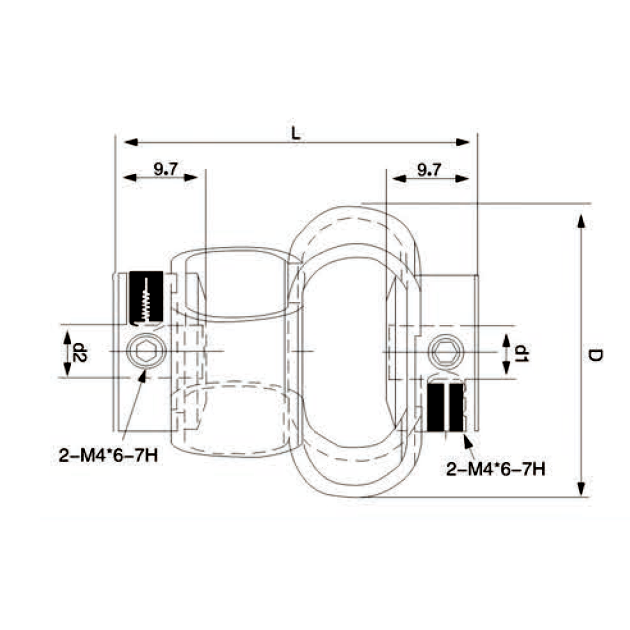

Product type | d1 Bore | d2 Bore | D | L | M | Rated torque | Maximum torque | The eccectric error | work |
| LS | 4-10 | 4-10 | 28 | 38 | M3 | 2 | 3 | 1M | Synchronous operation |
| LS | 4-15 | 4-10 | 44 | 50 | M4 | 3 | 4 | 1M | |
| LS | 4-15 | 4-10 | 44 | 60 | M4 | 3 | 4 | 1M | |
| Customers can customize according to the table processing | |||||||||
◆Feature:
Steel hubs are zinc plated.They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.The hubs fix to sharts by metric set screws.Maximum operating temperature is 80℃.
◆Specification:
● High angular misalignment to 15 °
● High axial and parallel misalignments
● Slient in operation,torsionally soft
● Dampens vibrations, increases bearing life
● Maintenance-free,4000 hour rated life
● Resistant to oils and solvents

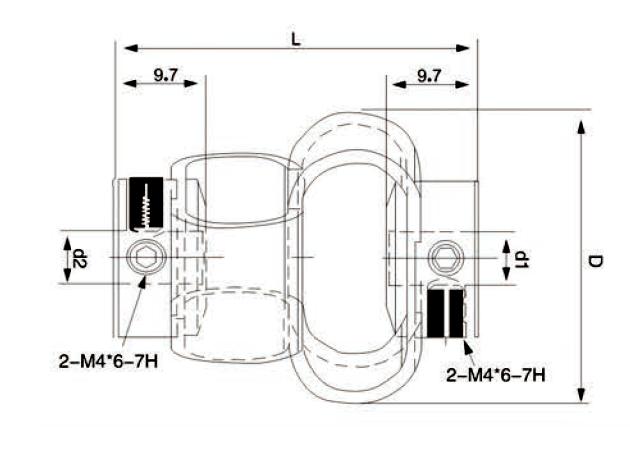

Product type | d1 Bore | d2 Bore | D | L | M | Rated torque | Maximum torque | The eccectric error | work |
