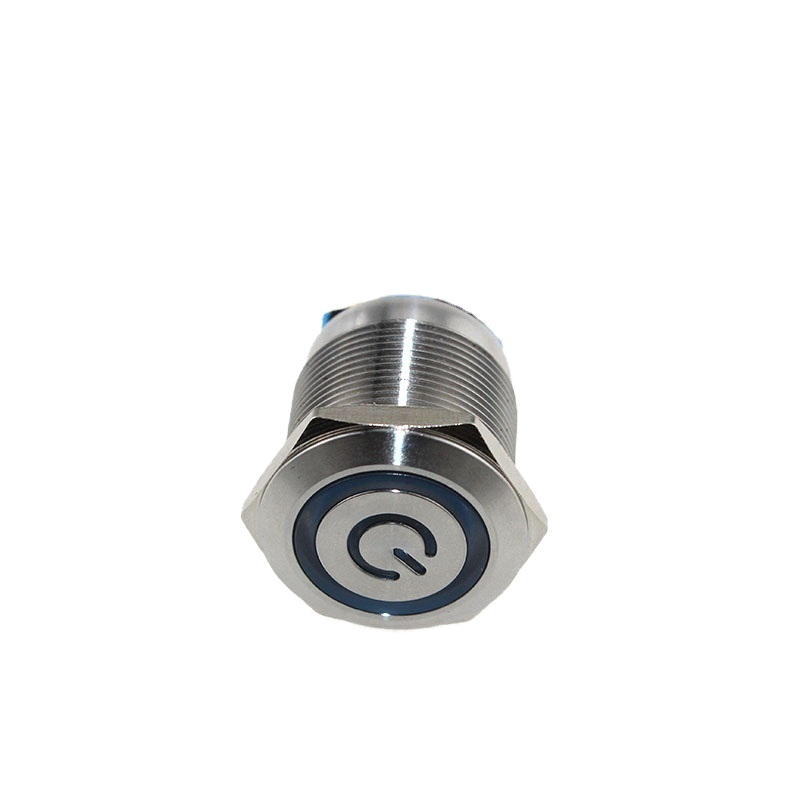

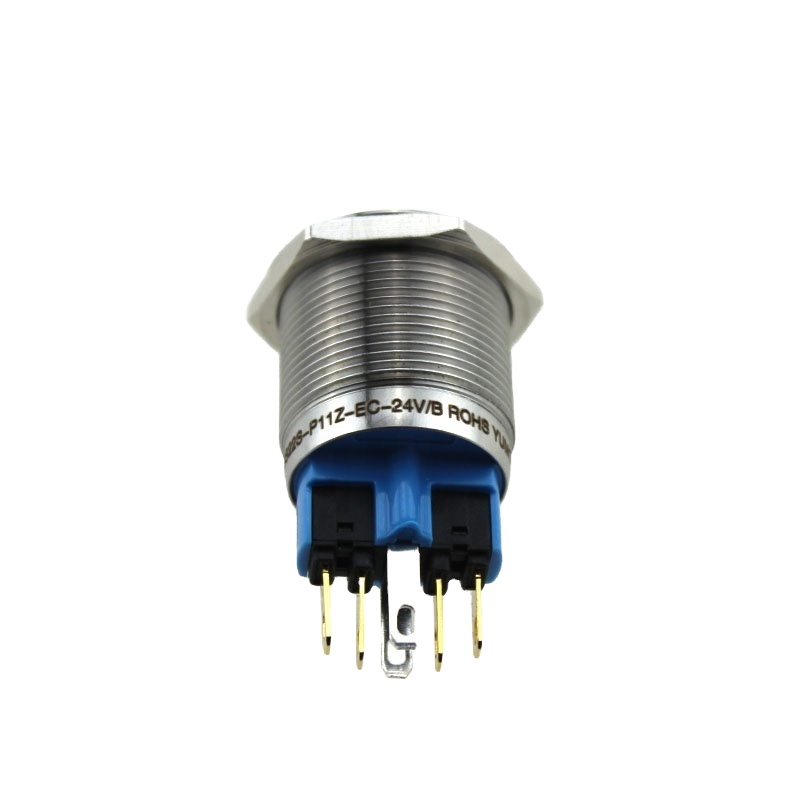

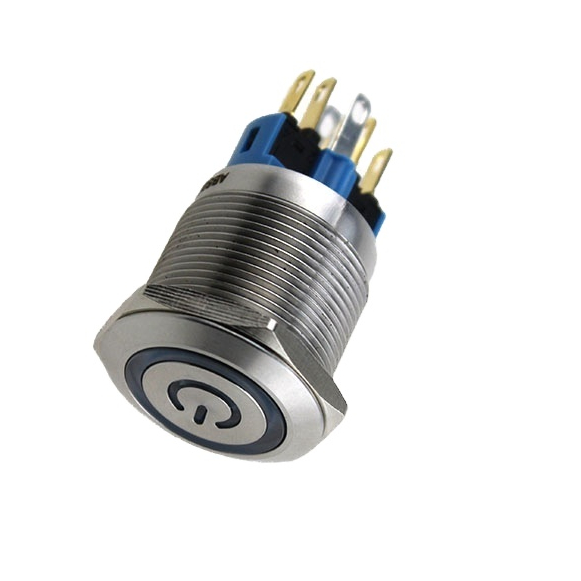

ABS22S-C11Z-E
Features
With the stability of the connection performance, the use of security equipment
Beautiful, high end, fasion design
Medical grade imported stainless steel material, environmental protection is beautiful with no rust
Protection performance IP67, waterproof, dusct can be conpetent for the harsh environment
Compact design, compact size, can be used for any small euipment
Metal Push Button Switch
Product information
| model number | ABS22S-C11Z-E |
| hole diameter(mm) | 22 |
| material | stainless steel |
| key type | flat |
| switch combination | 1NO1NC |
| lamp type | ring illuminated |
| lamp color | blue |
| lamp voltage | 5V |
| contacts | DPDT |
| protection | IP67 |
| action | latching |
