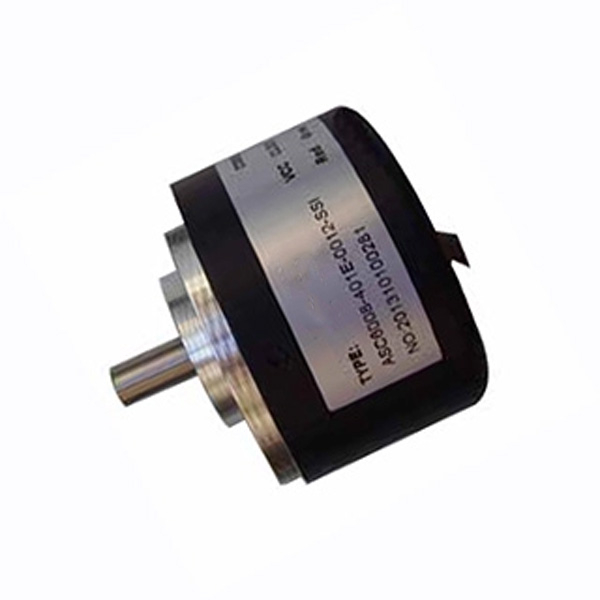

AHC3808
Features:
LAP zero power fixed and it is unacted on power cutting and system open and closed.
It output value of single function and strong anti-jamming capability.
Magnetoelectric principle, antipollution ability, dust moistureproof sex and strong vibration shock
resistance Precision compact structure, small volume weight and the performance is stable and reliable.

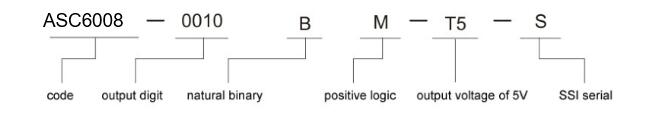

Code specification
Specification parameter
| code | Absolute Code | |||||
| Bit | Point for Round | Angle Distinguish | Output Code | Carry Direction | Accuracy | |
| AHC3808-S01G0013 | 13 | 8192 | 360°/213 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0012 | 12 | 4096 | 360°/212 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0011 | 11 | 2048 | 360°/211 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0010 | 10 | 1024 | 360°/210 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
Electrical parameters
| Classification project | power voltage | Outcoming signal | current consumption | output Waveform | Rise/Fall Time | Response Frequency | Insulation Resistance | ||
| High level(v) | Low level(v) | permissible Injection current | ＜100mA | ＜US | 0-1m | ＞100mΩ | |||
| Absolute Code | 5 | ≥2.5 | ≤1 | mA | |||||
CONNECTION TABLE
| Cable color | Red | Black | Green | White | Yellow | Brown | Grey | orange | Shield |
| Signal(voltage) | Vcc | ov | Clock | Date | Spare | - | - | Spare | shell |
| Signal(Drive TTL) | Vcc | ov | Clock | Date | Spare | - | Spare | shell |
Mechanical characteristics
| Permissible mechanical revolution | Starting torque25° | Axial load | |
| Axial direction | Radial direction | ||
| 0-6000r/min | 2×10-3N/m | 10N | 20N |
