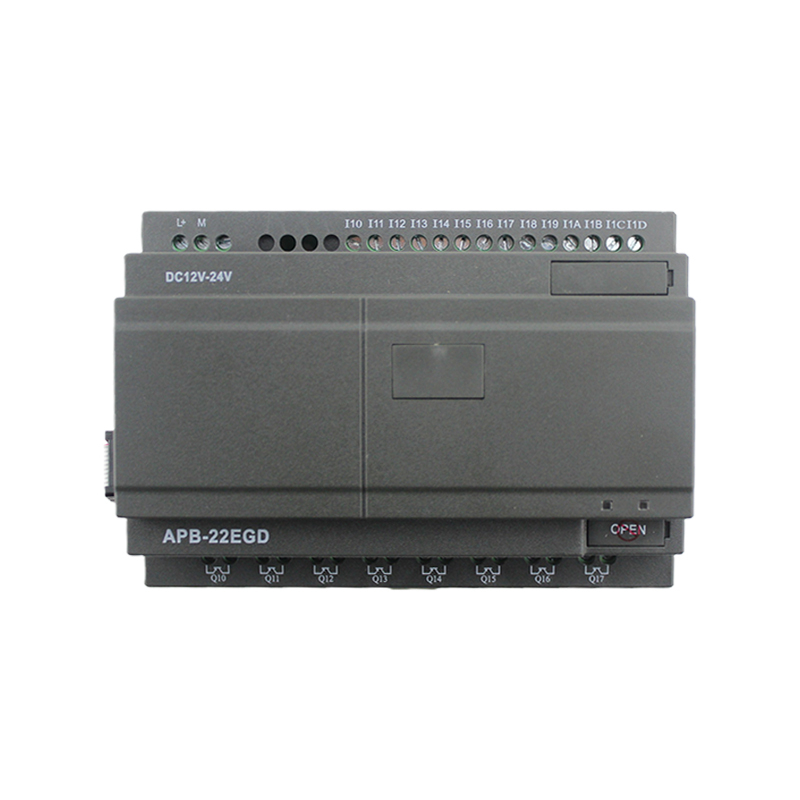

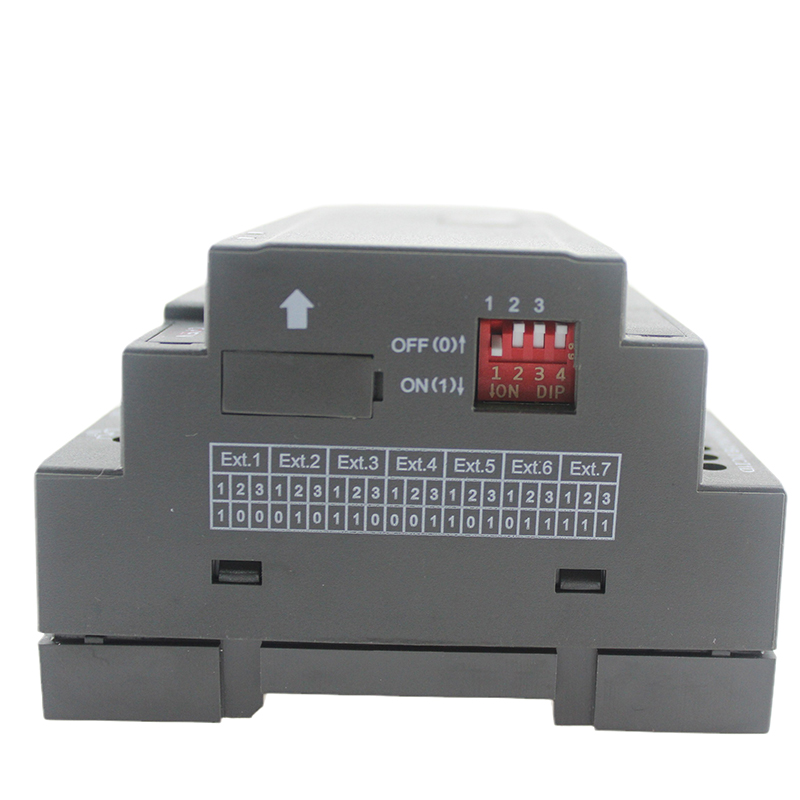

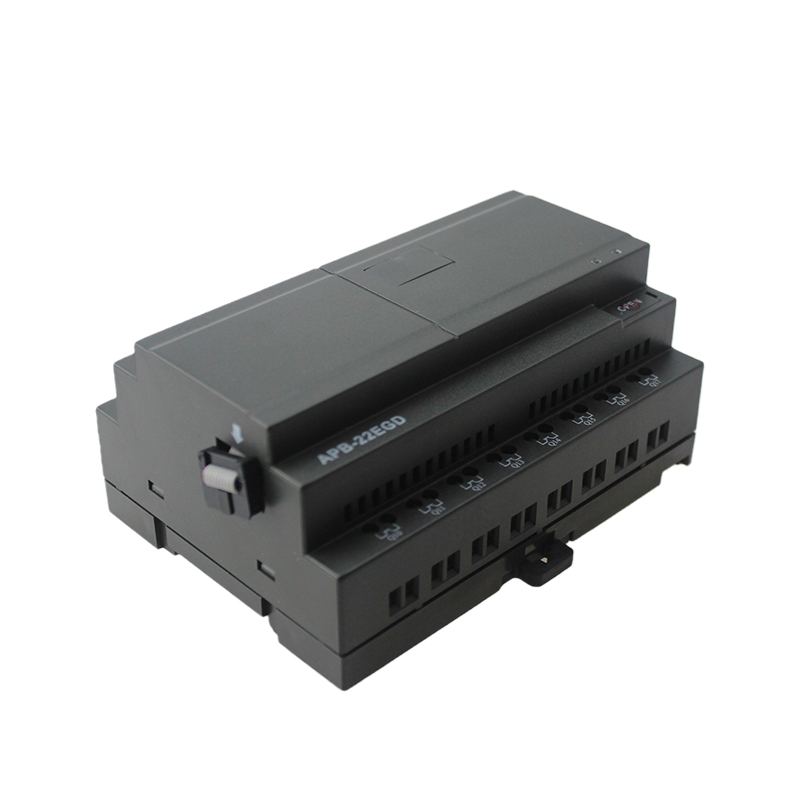

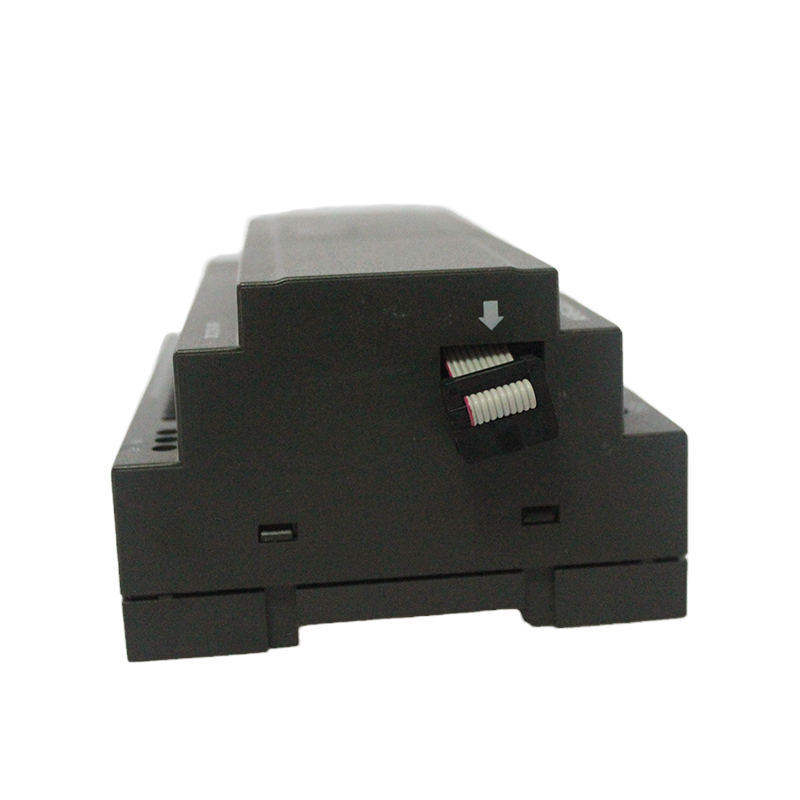

PLC NO:APB-22EGD DC12V-24V 14 Points Digital Input, 8 Point PNP Transistor Output from China manufacturer

You are here: Home » Programmable Logic Controller (PLC) » APB Programmable Logic Controller » PLC NO:APB-22EGD DC12V-24V 14 Points Digital Input, 8 Point PNP Transistor Output

PRODUCTS CATEGORY

Model:
APB-22EGD

Product Description

PLC

NO:APB-22EGD

Features

Main module: 12\22\24 points;

Extension module: 22 points;

It is flexible for extending, and the optimal max.

Configuration: 7 I/o extension modules, 1 voice module, and 1 SMS module;

Program memory capacity: 320 FBDs, EEPROM;

It is allowed to place a Li-ion battery to power the clock;

Under the circumstance of DC12-24V, the main machine at most has 12 voitage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA;

High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;

MODBUS protocol, and can be connected to SH-300 (Text Panel);

New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.

Technical Parameters

Item	APB-12MRD(L)	APB-12MTD(L)	APB-12MGD(L)	APB-12MRA(L)	APB-12MRDL
	APB-22MRD(L)	APB-22MTD(L)	APB-22MGD(L)	APB-12MRA(L)
Surge Immunity	2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (oute casing)	±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature	-10℃-+55℃
Storage Temperature	-40℃-+70℃
Ambient Huminity	5%-95%RH
Degree of Protection	P20(Non-waterproof)
Installation	Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm)	719958.5(12 points);1269958.5(22 points);1269958.5(24 points)
Programming Language	FBD
Points	12 points/22 points/24 points/can support 7 I/O extension modules
Memory Capacity	320 FBDs
Filtering Duratio of Input Signal	It can be set to improve the stability of signal
Real-time Clock	160h,can place a Li-ion battery if it is necessary
PasswordProtection	Multiple passwords protection
High-speed Operation	At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz
Analog Operation	At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection	Yes
Simulate Monitoring	Yes
Communication Interface	TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate	9600bps
Communication Protocol	MODBUS RTU

Power Supply

Rated Voltage	DC12-24V	DC12-24V	DC12-24V	AC110-220V	DC12-24V
Permissible Range	DC11-28V	DC11-28V	DC11-28V	AC85-265V	DC11-28V
Power Consumption	3.5W	-	-	-	-

Digital Input

Input Type	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP
Input Signal 0	DC0-5V	DC0-5V	DC0-5V	AC0-70V	DC0-5V
Input Signal 1	DC8.5-28V	DC8.5-28V	DC8.5-28V	AC85-265V	DC8.5-28V
Isolation	Non-isolation	Non-isolation	Non-isolation	Non-isolation	Non-isolation
Isolated Group	-	-	-	14	-
Isolated Method	-	-	-	2500/5000Vr.m.s	-

Digital Output

Output Type	Relay	Transistor(NPN)	Transistor(NPN)	Relay	Relay
Rated Voltage	24VDC/220VAC	24VDC	24VDC	24VDC/220VAC	24VDC/220VAC
Isolation Method	Relay isolation	-	-	Relay isolation	Relay isolation

Analog Input

Input Type	(DC0-10V)/8 inputs	(DC0-10V)/8 inputs	(DC0-10V)/8 inputs	-	(4-20mA)/2 inputs
Input Type	(DC0-10V)/12 inputs	(DC0-10V)/12 inputs	(DC0-10V)/12 inputs	-	(DC0-10V)/12 inputs

Analog Output

Output Type	-	-	-	-	4-20mA/2 inputs
A/D Conversion	-	-	-	-	12 bits
Isolation	Non-isolation	Non-isolation	Non-isolation	Non-isolation	Non-isolation

High-speed Operation

Input Type	4 inputs /10KHz	4 inputs /10KHz	4 inputs /10KHz	-	4 inputs /10KHz
Input Type	Support single-phase counter and two-phase counter	Support single-phase counter and two-phase counter	Support single-phase counter and two-phase counter	-	Support single-phase counter and two-phase counter
Output Type	-	2 outputs /10KHz	2 outputs /10KHz	-	-
Output Type	-	Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse	Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse	-	-
