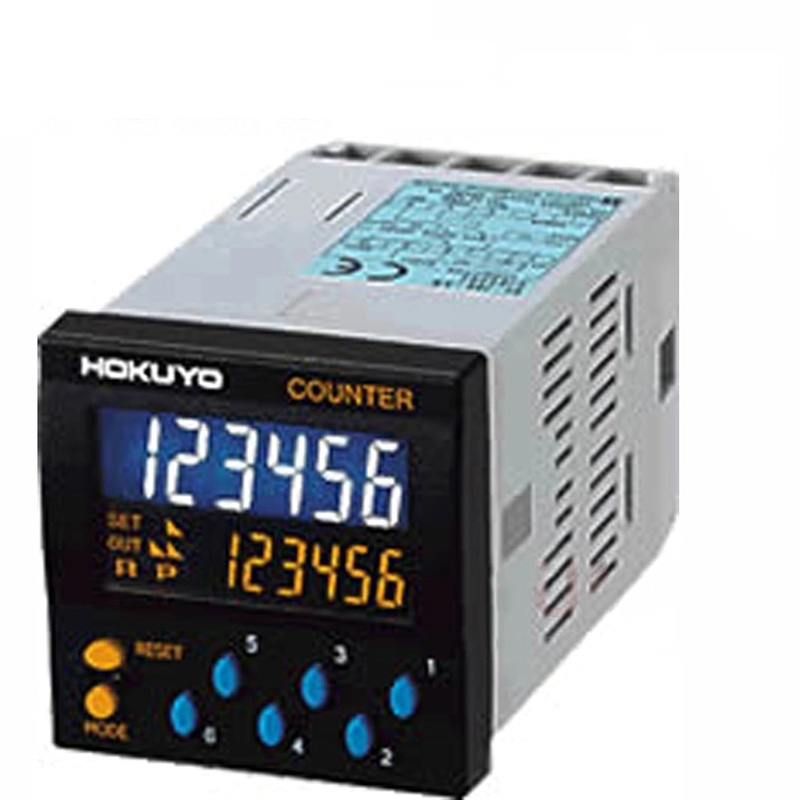

HOKUYO DC-JB/JC Electronic Counter with DIN Sizer

Feature

• Excellent visibility by white LCD

• It can be changed to easy mode or multi mode. It can show the setting condition.

• 12 digits total counter is built-in.(It can show producing numbers per day, month or year)

• Corresponding to each output mode(Self-holding, One-shot, Agree, Comparing)

• Pre-scale function provides.(0.001 to 9.999) Decimal point can be changed.

• Corresponding to each input mode(increment/decrement independence, Phase-difference, Increment, Decrement, Increment/decrement command

• CE Marking, IP66 protection(only front panel with rubber packing), Protecting structure with terminal cover, Key-protection for prevention mishandling provides

• Specifications
  Type	1-preset counter				2-preset counter
  Model No.	DC-JB6	DC-JB6	DC-JB6	DC-JB6	DC-JC6	DC-JC6	DC-JC6	DC-JC6
  	-AW	-AY	-DW	-DY	-AW	-AY	-DW	-DY
  Power source	100 to 240VAC(50/60Hz)		24VDC(ripple 20% or less)		100 to 240VAC(50/60Hz)		24VDC(ripple 20% or less)
  Fluctuation range	±10% when 24VDC, 85 to 250VAC
  Power consumption	4VA*1(240VAC)		1W(24VDC)		5VA*1(240VAC)		1W(24VDC)
  Number of digit	6 digits, -99999 to 999999(Total counter : 12 digits)
  Memory function	EEP-ROM(Re-writing 0.1 million times or more)
  Counting speed	Changeover for 30Hz/5kHz
  Reset	External reset, manual reset, automatic reset
  Pre-scale	0.001 to 9.999
  Decimal point position	Lower 4 digits
  Single-shot time	0.005 to 9.999s
  Display	7-segment LCD(LED back-light)
  Input mode	Changeover for Increment/decrement independence, Phase-difference, Increment, Decrement, Increment/decrement command
  Output mode	Changeover for One-shot return, Self-holding free, One-shot free, Agree free, Comparing free
  Output function	Changeover for standard or digit-up				Standard/Batch/Prediction
  Input signal	Contact or open-collector, Impedance when ON(short-circuit) : 1k ohm or more, Impedance when OFF(short-circuit) : 100k ohm or more, Flowing current when short-circuit : approx. 4mA
  Control output	Transistor output(NPN open-collector) : 100mA or less, 40V or less
  	Contact output(1c,1a*2) : 250VAC/30VDC 3A Resistance load(cosφ=1)
  Power for sensor	12VDC, 50mA				12VDC, 50mA
