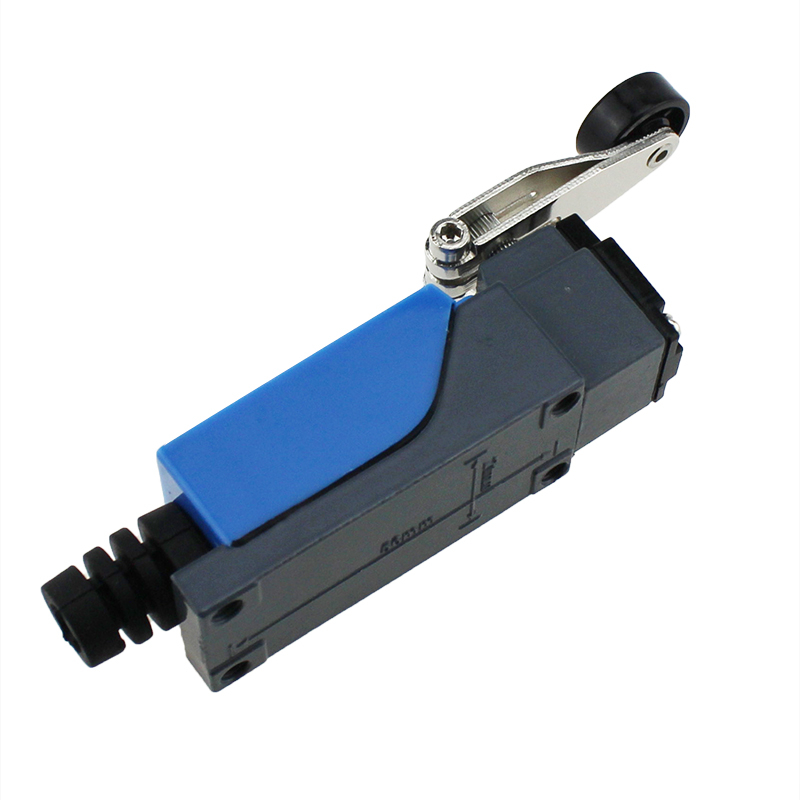

ME-8104 5A/250VAC Long Electrical Life Limit Switch Escalators Elevator Parts

In the electrical control system, the function of position switch is to realize sequence control, position control and position state detection. It is used to control the travel and limit protection of mechanical equipment. Construction: composed of operating head, contact system and housing.
Availability:
Inquire Add to Basket

  • ME-8104

Tchnical Specifitions



  • Rating: 5A 250VAC

  • Contact Resistance: ≤50mΩ

  • Insulation Resistance: ≥100 MΩ

  • Dielectric intensity: ≥ 1500VAC/1min

  • Life: ≥ 10000 Cycles

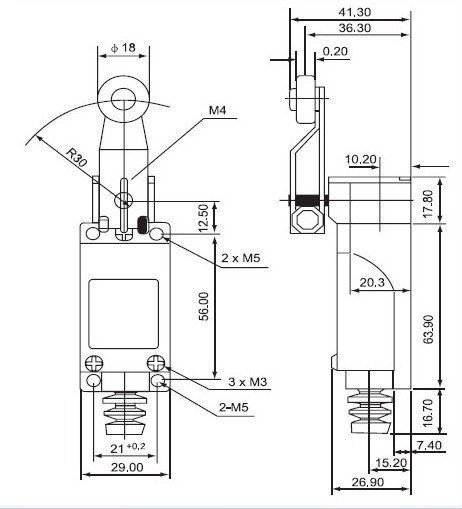

Dimensions(mm)

ME-8104
