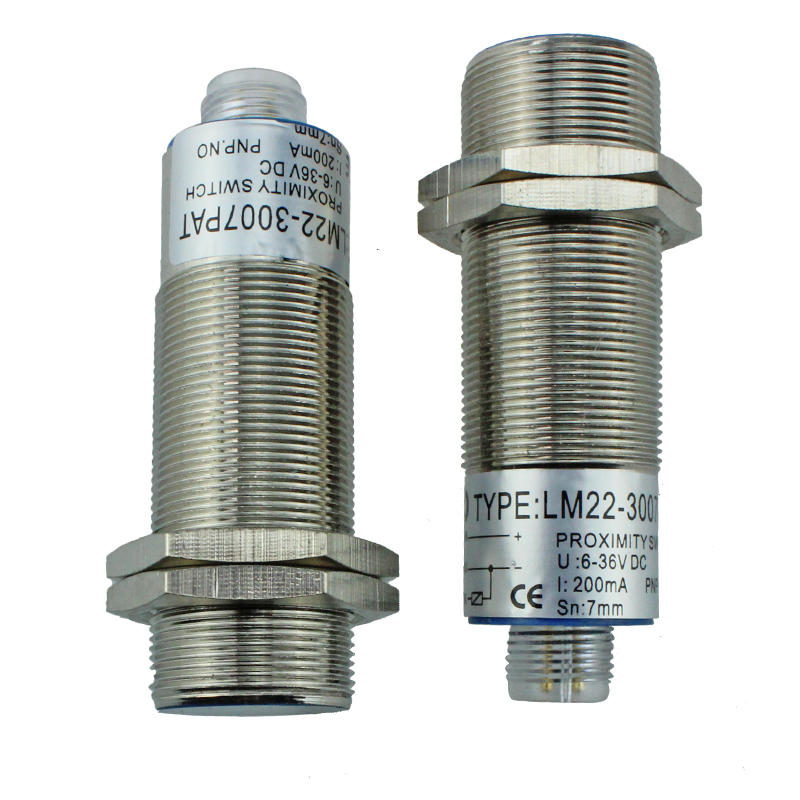

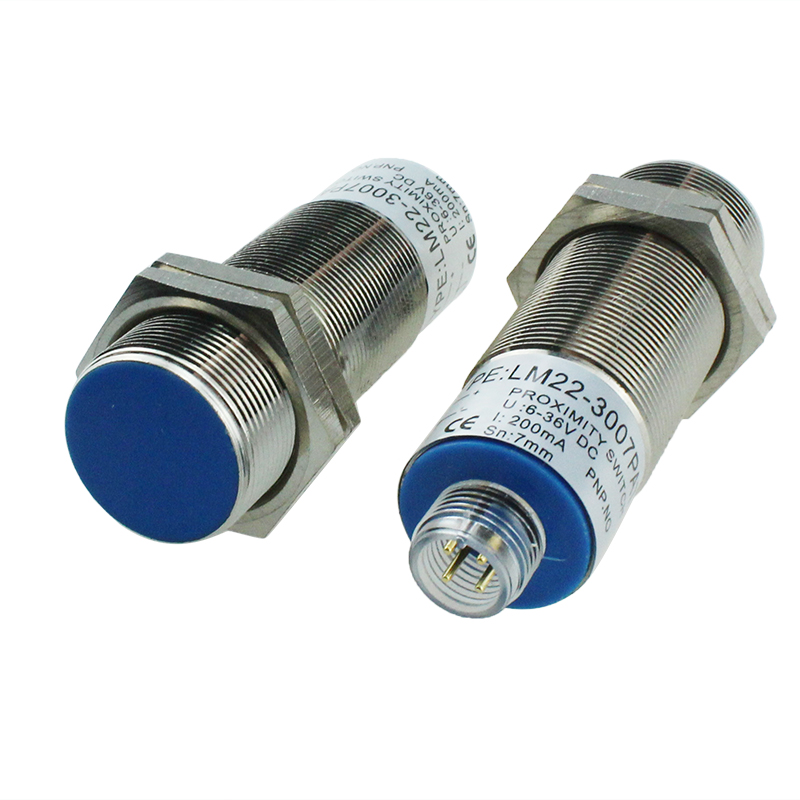

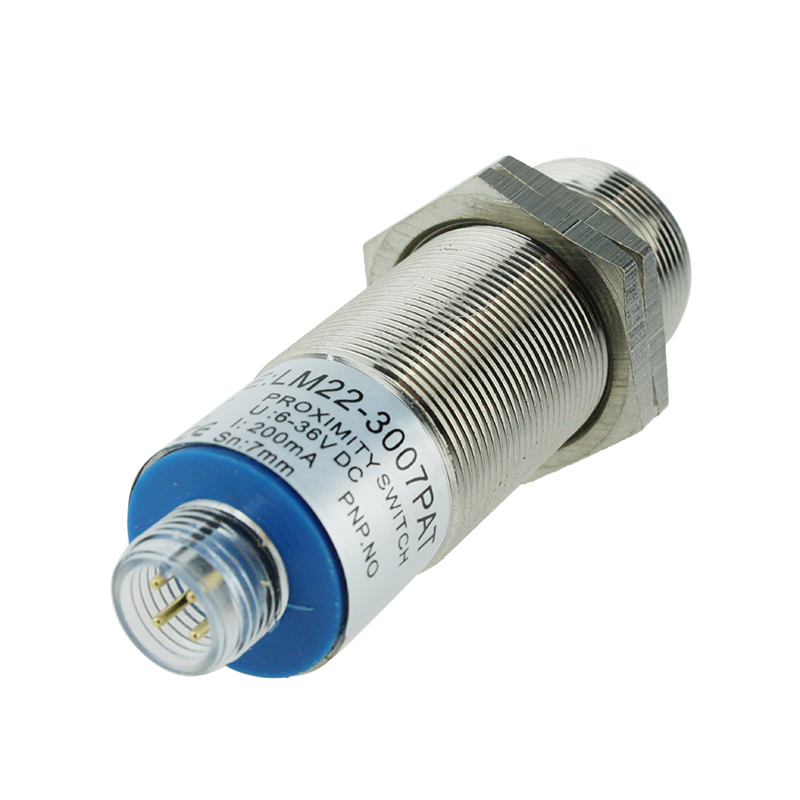

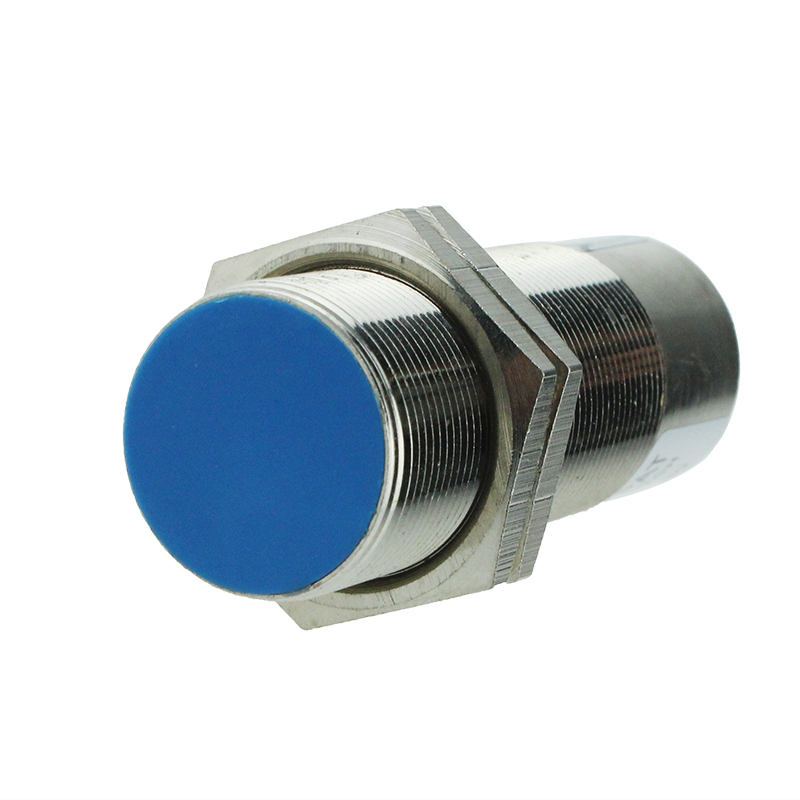

LM22-3007PAT
Main features
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dust proof, vibtation proof, water proof and oil proof
With short-circuit protection and inverted connecting protection
Long service life
Technical Specifications
| Model NO. | LM22-3007PAT |
| Installation | Flush |
| Structural category | Cylinder type |
| Detection distance | 7mm |
| Supply voltage | 6-36VDC |
| Output form | PNP |
| Output state | NO |
| Output current | 200mA |
| Output voltage dropDC/AC | DC≤3V |
| Consumption current | DC≤15mA |
| Standard detected object | 50*50*1(A3 iron) |
| Repeated precision | 0.02 |
| DC/AC Response frequency | 200Hz/10Hz |
| Working environment temperature | –25℃~75℃ |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
