KT6W-2P5116
SICK

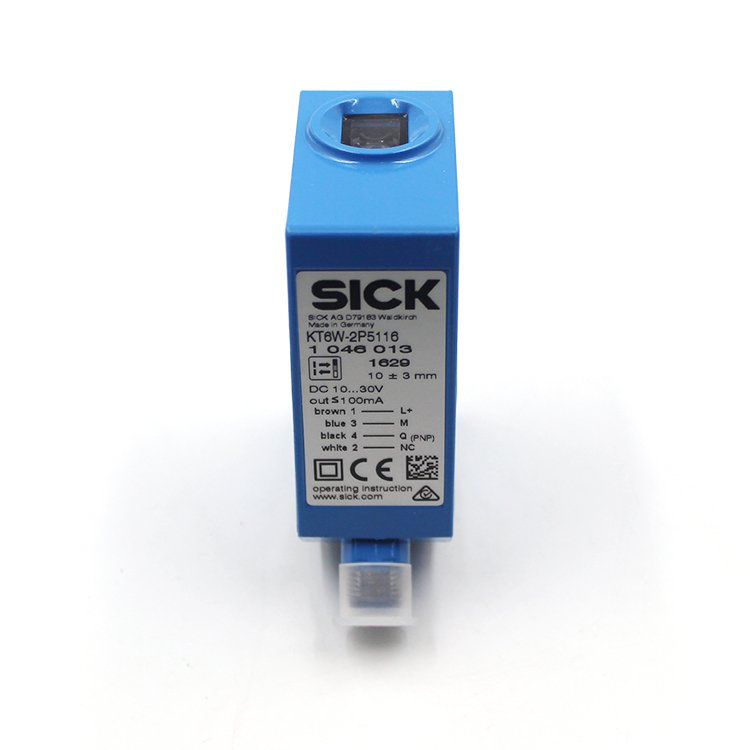

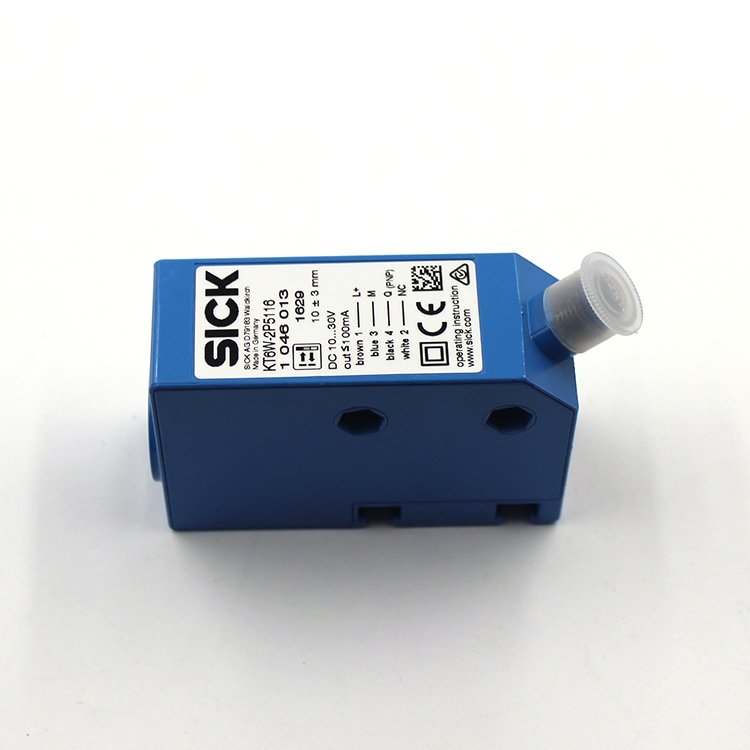

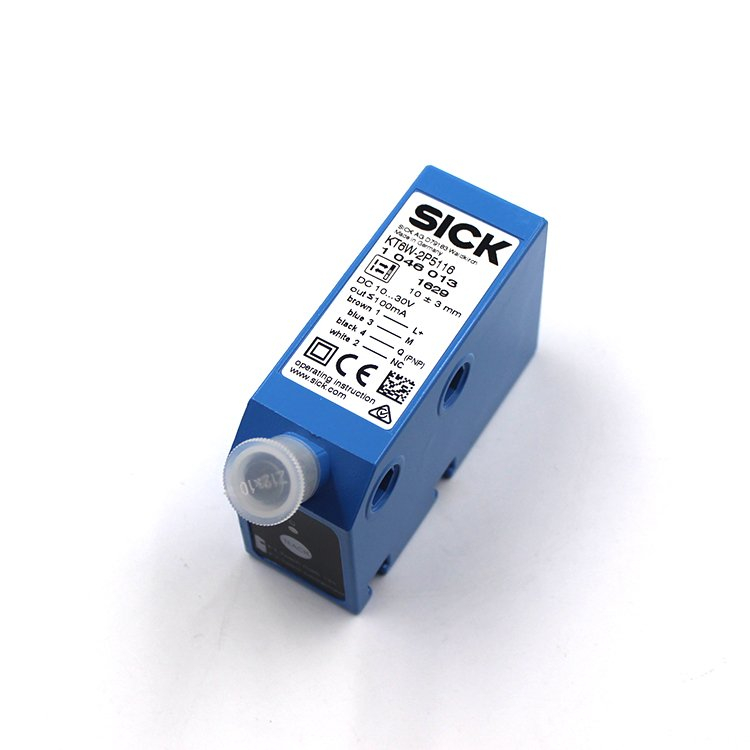

SICK color mark sensor KT6W-2P5116
FEATURES

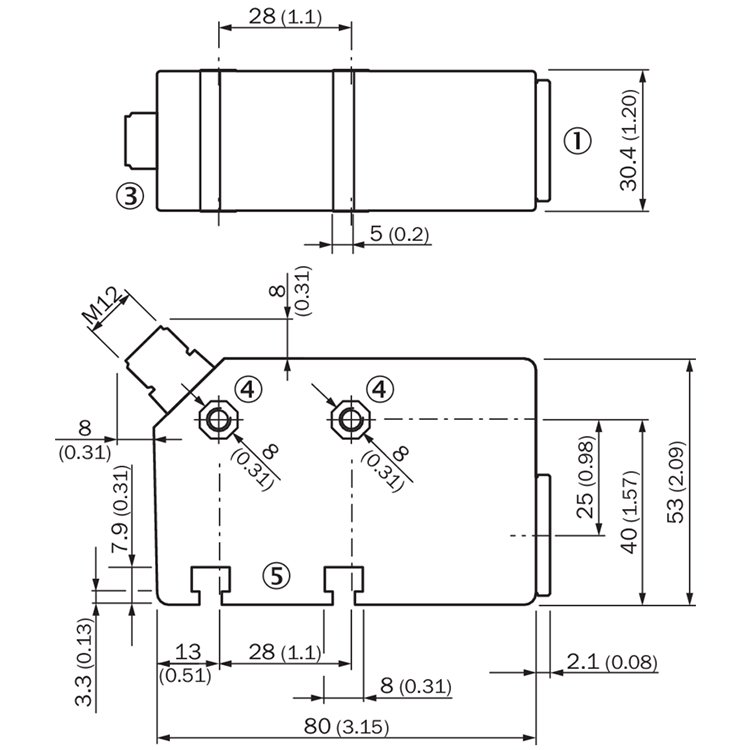

| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | 10 mm |
| Housing design (light emission) | Rectangular |
| Sensing distance tolerance | ± 3 mm |
| Light source | LED, RGB 1) |
| Wave length | 640 nm, 525 nm, 470 nm |

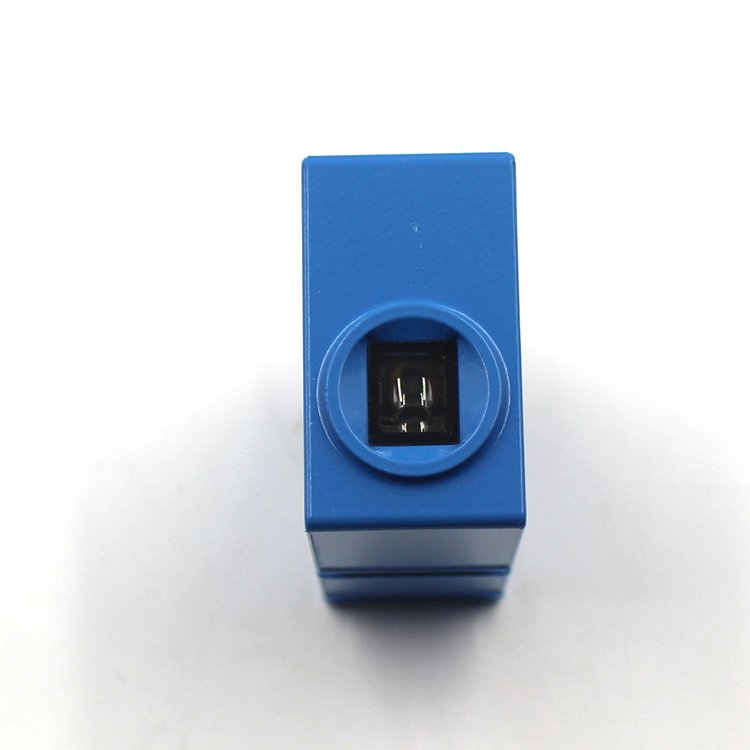

| Light emission | Short device side |
| Light spot size | 1.5 mm x 6.5 mm |
| Light spot direction | Vertical 2) |

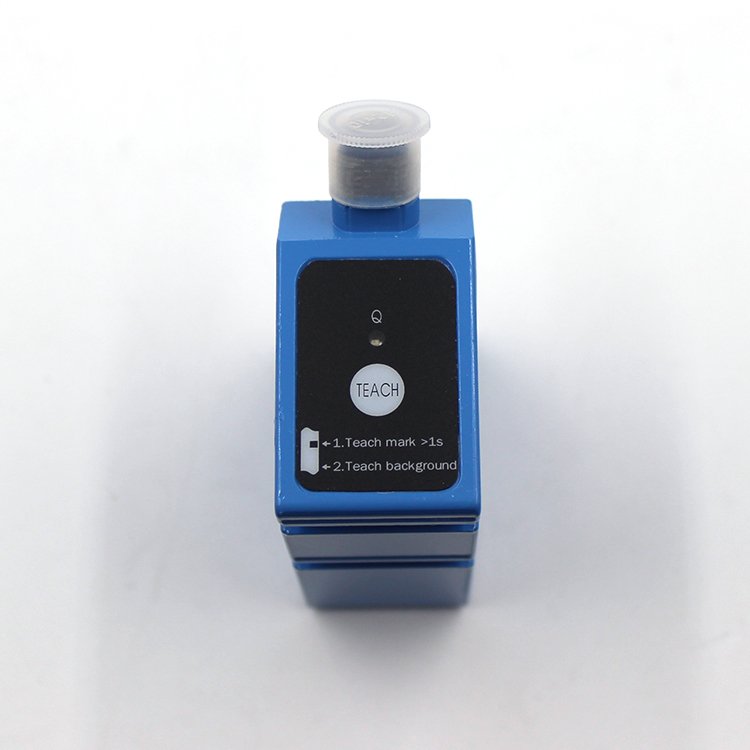

| Adjustment | Teach-in button |
| Teach-in mode | Static 2-point teach-in |
1) Average service life: 100,000 h at TU = +25 °C.
2) In relation to long side of housing.
MECHANICS/ELECTRONICS
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | < 40 mA 3) |
| Switching frequency | 5 kHz 4) |
| Response time | 100 µs |
| Output type | PNP |
| Switching output (voltage) | PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V |
| Output current Imax. | 100 mA |
| Retention time (ET) | 25 ms, non-volatile memory |
| Connection type | Male connector M12, 4-pin |
| Protection class | II 5) |
| Circuit protection | UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP 67 |
| Weight | 400 g |
| Housing material | Zinc diecast |
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) With light/dark ratio 1:1.
5) Reference voltage DC 32 V.
AMBIENT DATA
| Ambient operating temperature | -10 °C ... +55 °C |
| Ambient storage temperature | -25 °C ... +75 °C |
| Shock load | According to IEC 60068 |
