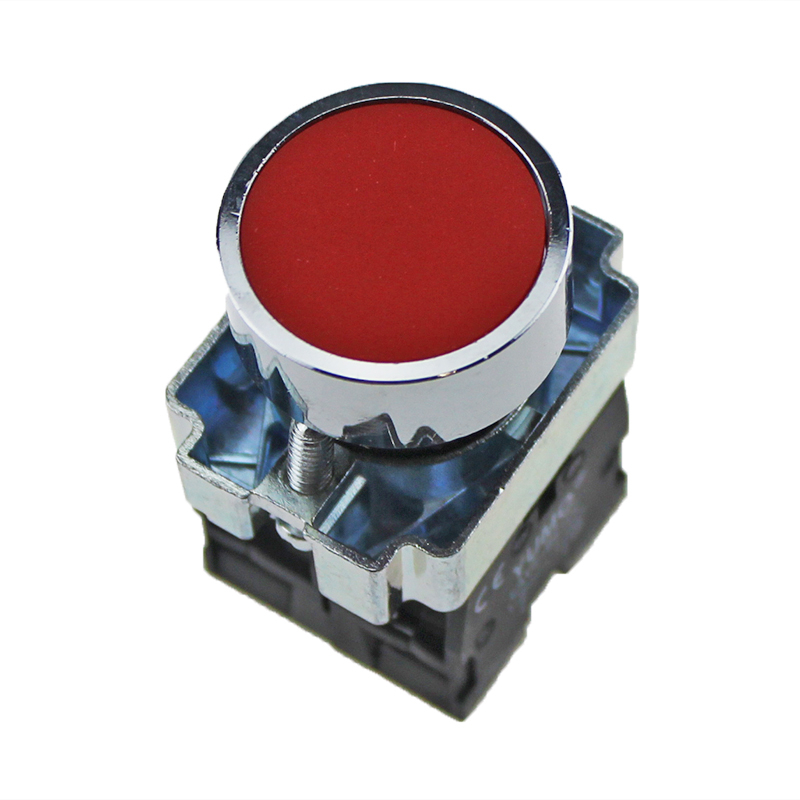

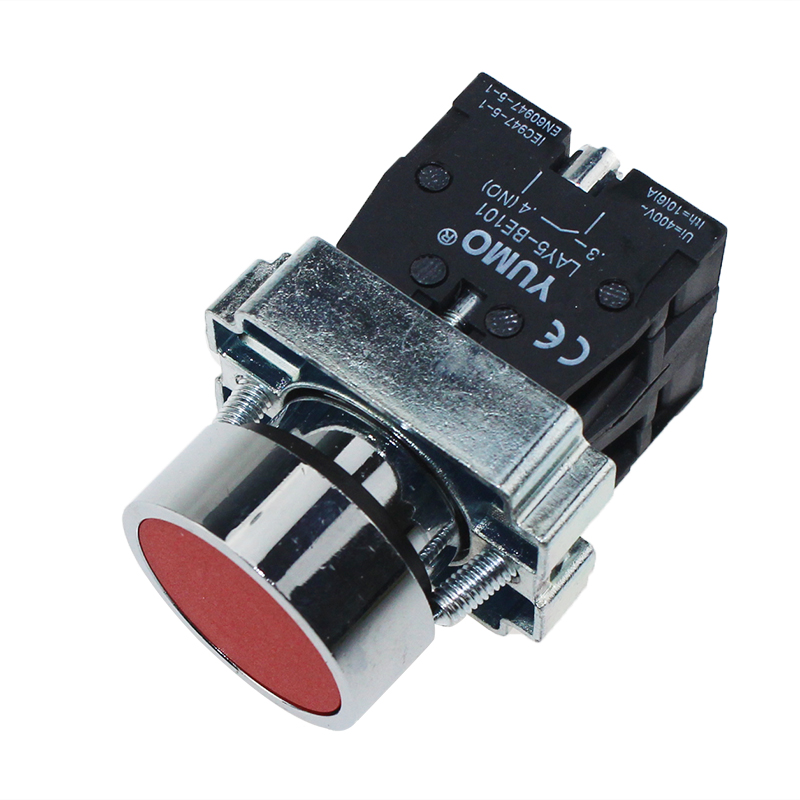

LAY5-BA45
Work environment
Surrounding temperature:-25℃~+55℃;
Air relative humidity:≤85%.
It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
Altitude:≤2000m
Main technical parameter
| Rated insulation voltage | AC 600V (50Hz/60Hz) |
| Conventional heating current | 10A |
| Insulation resistance | ≥50MΩ |
| Contact resistance | ≤25MinΩ |

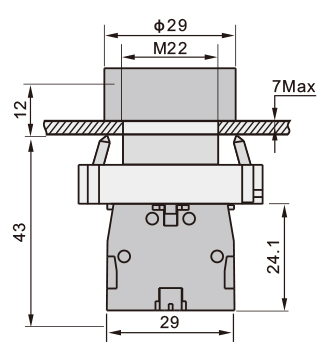

| Push button | Description | Contact | Circuit | Color | Sign Type | Contour |
 | Flush button Spring return | N/O+N/C |  | Black | LAY5-BA25 |  |
| Green | LAY5-BA35 | |||||
| Yellow | LAY5-BA55 | |||||
| Blue | LAY5-BA65 | |||||
| N/O+N/C | Red | LAY5-BA45 |
